Digital force gauge 500n details

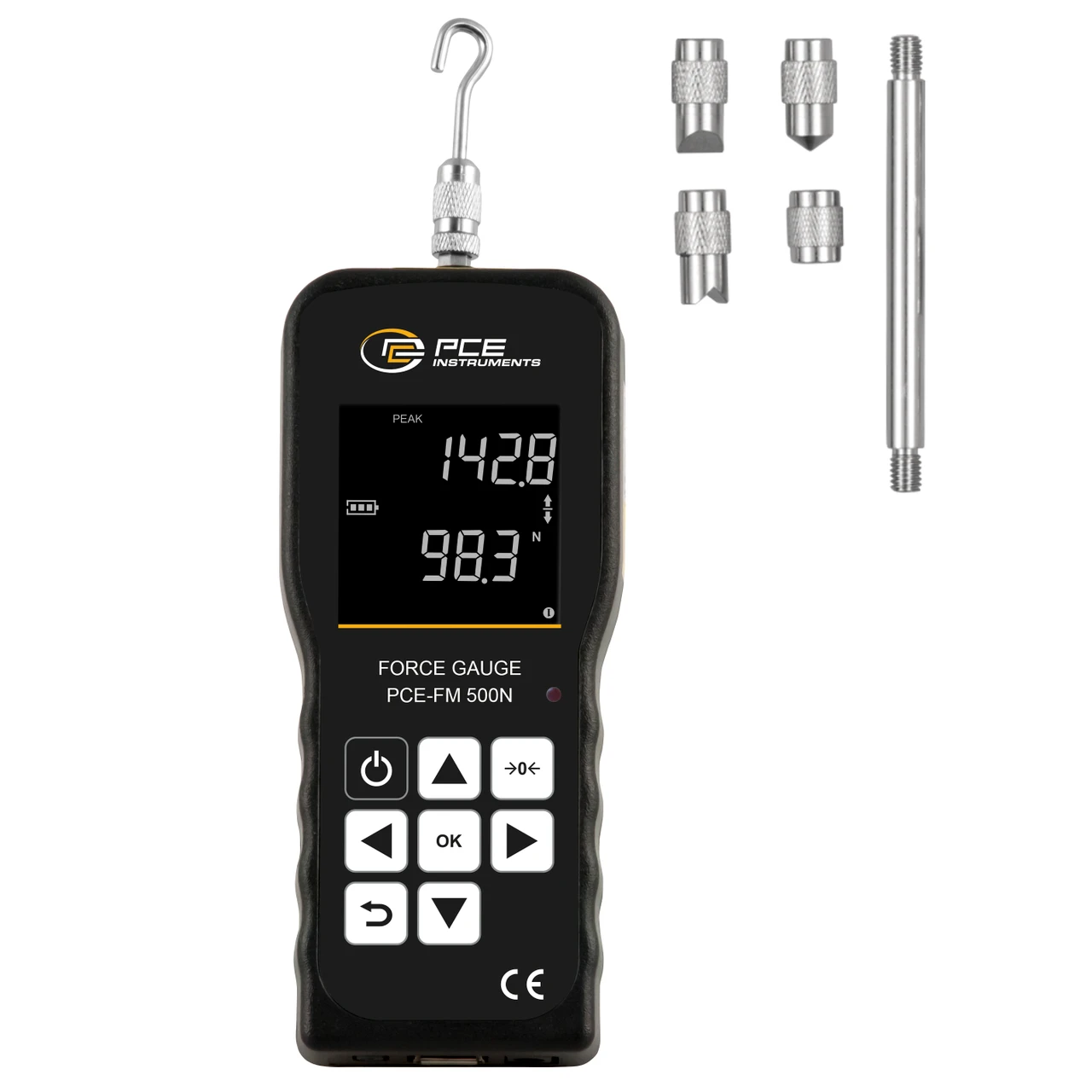

PCE Instruments Digital Force Gauge (PCE-FM 500N)
PCE Instruments Digital Force Gauge (PCE-FM 500N) is a high-precision digital force gauge designed for measuring tensile and compressive forces up to 500 N. This handheld device is ideal for industrial testing, quality control, and research applications.
This force gauge includes a range of screw-on adapters, such as flathead, hook, ball head, chisel head, and notched adapters, to accommodate various surface types. An extension rod is also included for measuring forces in hard-to-reach areas.
Specifications and Dimensions
Measuring Range: 5 … 500 N / 1.1 … 112 lbs
Resolution: 0.1 N / 0.02 lbs
Measurement Accuracy: ± 0.5%
Pressure Calibration: 1 MPa
Load Cell: Integrated with M6 connection
Power Supply: Internal battery, 12V / 1 A power adapter
Operating Temperature: 10 … 30°C / 50 … 86°F
Relative Humidity: 15 … 80% RH
Weight: 1 kg / 2.2 lbs
Key Features and Benefits
Measures tensile and compressive forces up to 500 N
Includes multiple interchangeable adapters
USB interface for data transfer and analysis
Compatible with test stands for precision testing
1 x PCE-FM 500N Force Gauge
1 x Downloadable evaluation software
1 x Flathead adapter
1 x Hook adapter
1 x Ball head adapter
1 x Chisel head adapter
1 x Notched head adapter
1 x Adapter for extension rod
1 x Extension rod (65 mm / 2.55")
1 x Charging adapter
1 x Equipment case
1 x Operation manual
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-FM 500N
PCE INSTRUMENTS force gauge: see the listed specifications for this model.
