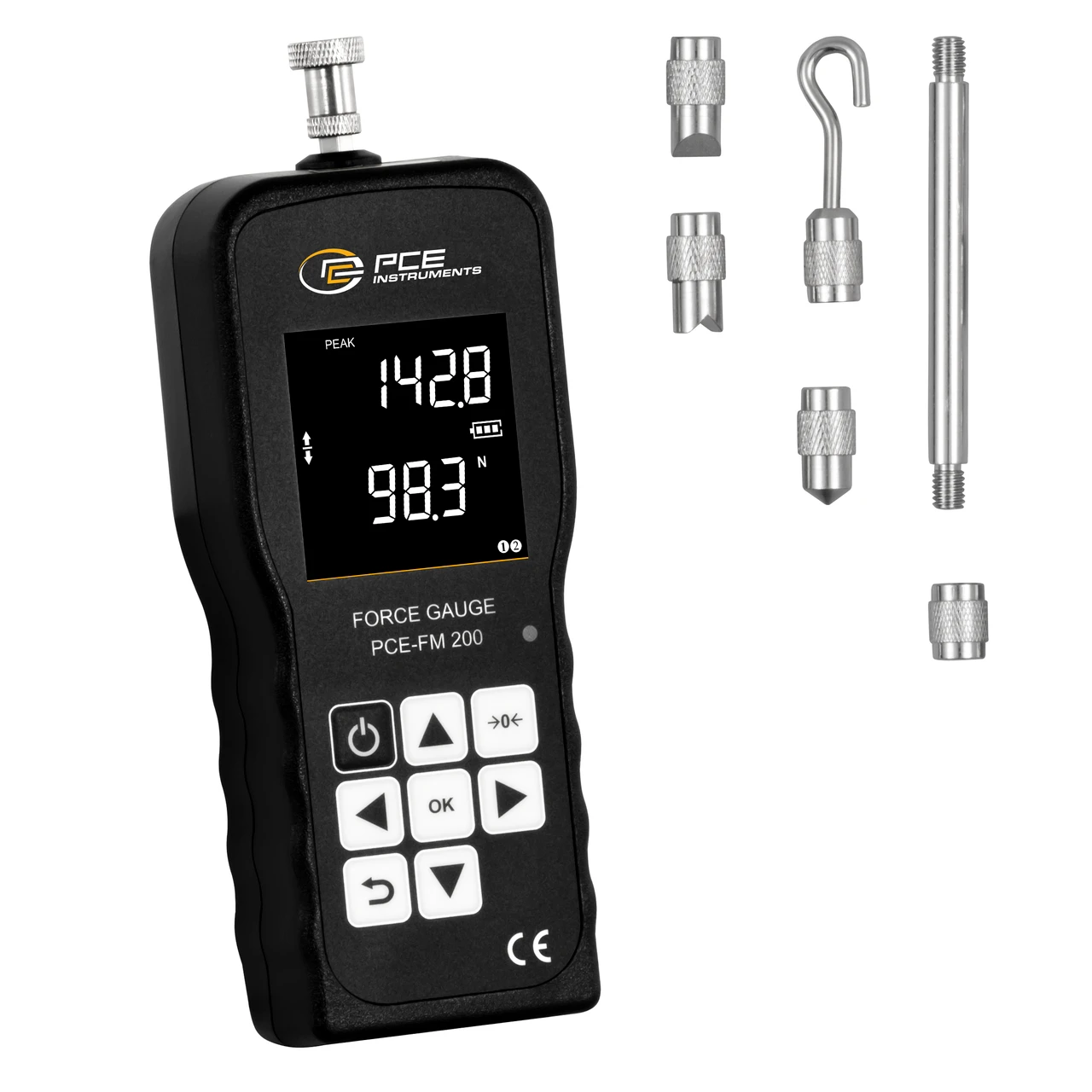

PCE Instruments Digital Force Gauge (PCE-FM 200)
PCE Instruments Force Gauge (PCE-FM 200) is a versatile digital force gauge designed for precise tensile and compressive force measurements. With a capacity of up to 200 N, this handheld device is ideal for applications in quality control, research, and industrial testing. The included USB interface and downloadable evaluation software allow for easy data transfer and analysis.
The force gauge comes with multiple adapters, including flathead, hook, ball head, chisel head, and notched adapters, providing flexibility for various surface types. An extension rod is also included for hard-to-reach measurements.
Specifications and Dimensions
Measuring Range: 2 … 200 N / 0.2 … 20 kg / 0.4 … 45 lbs
Resolution: 0.1 N / 0.02 lbs
Measurement Accuracy: ±0.5%
Pressure Calibration: 1 MPa
Load Cell: Integrated with M6 connection
Operating Temperature: 10 … 30°C / 50 … 86°F
Relative Humidity: 15 … 80%
Weight: 1 kg / 2.2 lb
Key Features and Benefits
USB interface for data transfer and software evaluation
Handheld and lightweight design for portability
Fast measurement display for real-time results
Rechargeable battery with charging adapter included
1 x PCE-FM 200 Force Gauge
1 x Downloadable evaluation software
1 x Flathead adapter
1 x Hook adapter
1 x Ball head adapter
1 x Chisel head adapter
1 x Notch head adapter
1 x Adapter for extension rod
1 x Extension rod (65 mm / 2.55")
1 x Charging adapter (240 V)
1 x Equipment case
1 x Operation manual
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-FM 200
Digital force gauge: see the listed specifications for this model.
