PCE INSTRUMENTS force gauge details

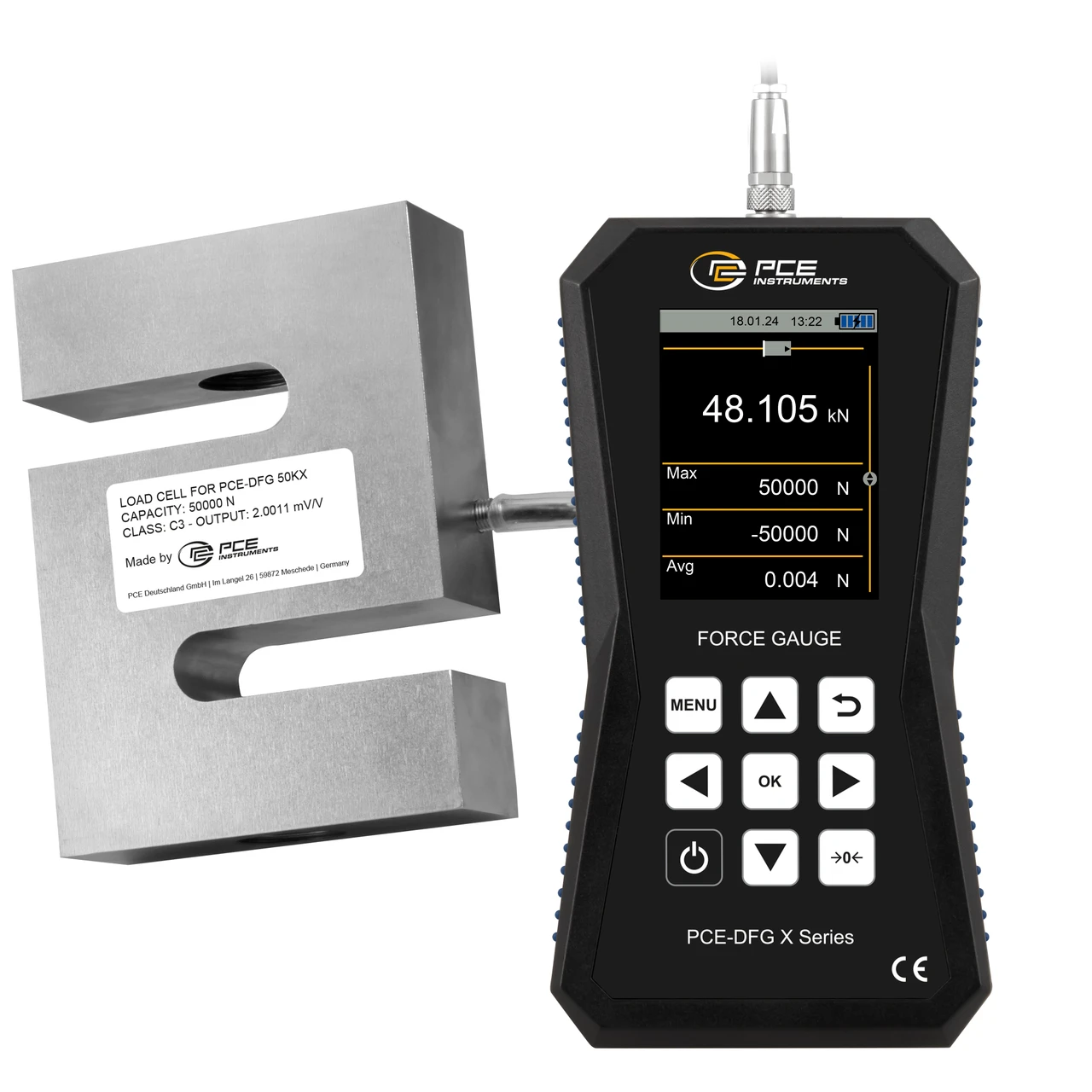

PCE Instruments Digital Force Gauge (PCE-DFG 50K X)
PCE Instruments Digital Force Gauge (PCE-DFG 50K X) is a precision device designed to measure both tensile and compressive forces up to 50 kN with high accuracy. Ideal for laboratory testing and industrial applications, this force gauge features a durable external load cell that ensures reliable measurements in various testing environments.
Equipped with a 32GB internal memory, the force gauge can store up to 30 million measuring points, making it perfect for extensive data collection. The device includes a USB-C interface for fast data transfer and a graphical LCD display that visually represents measured values.
Specifications and Dimensions
Measuring range: 0 … 50 kN
Accuracy: ±0.05 % FS
Display: 2.8-inch illuminated LCD
Adjustable measurement rate: 1 … 7,200 Hz
Memory capacity: 32GB (stores 30 million measurement points)
Power supply: USB 5V DC, 500 mA
Operating time: 13 hours
Protection class: Device (IP52), Load Cell (IP67)
Dimensions (L x W x H): 165 x 85 x 32 mm
Key Features and Benefits
Accurately measures tensile and compressive forces up to 50 kN
USB-C interface for quick and secure data transfer
Graphical LCD for real-time measurement visualization
Customizable alarm modes: Inside, Outside, Crack, Switch-off
Supports multiple measurement units: N, kg, t, kN, Pa, kPa, Nm, lb, ft, g
Interchangeable measuring cells for enhanced versatility
Calibration reminder ensures precise measurements over time
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-DFG 50K X
Digital force gauge: see the listed specifications for this model.
