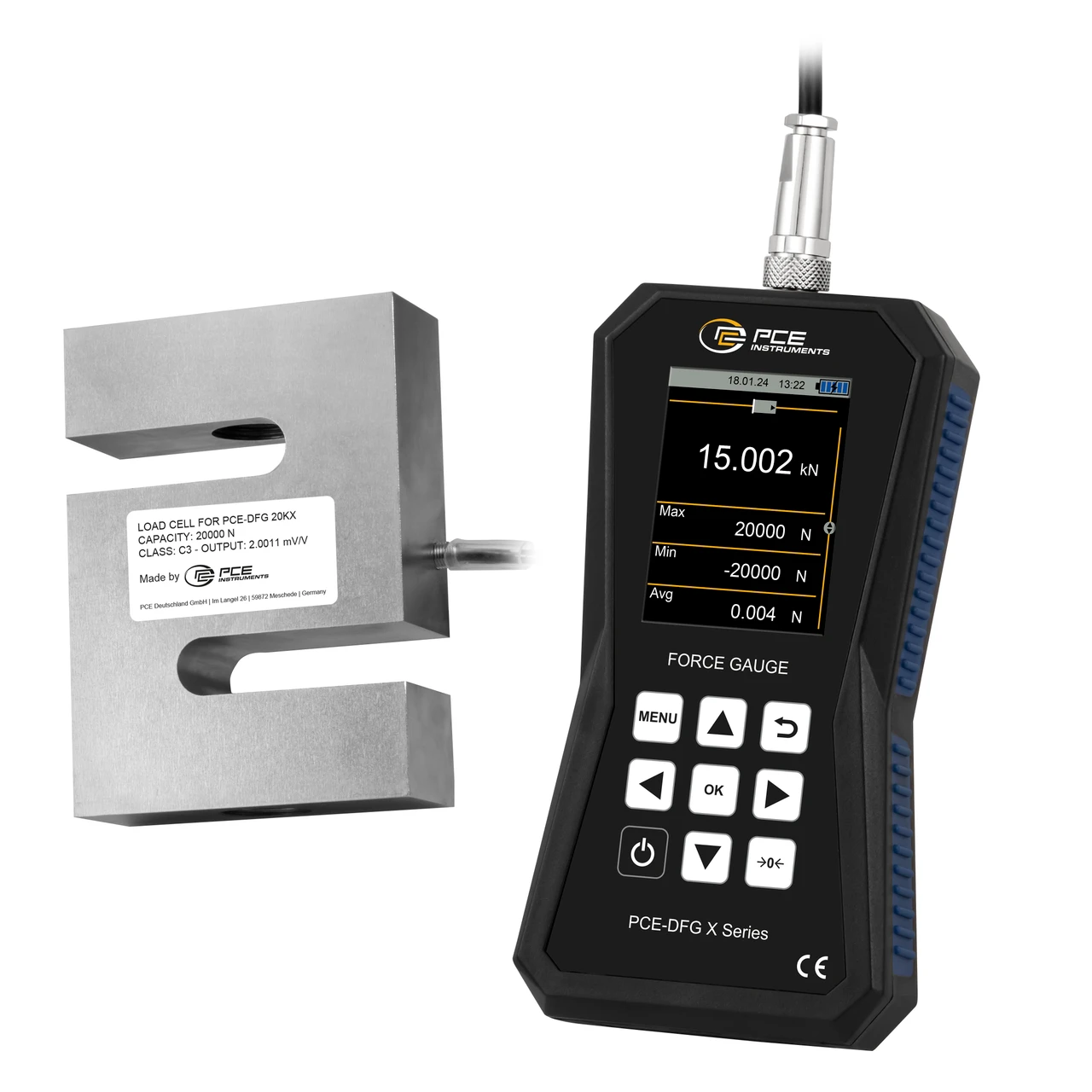

PCE Instruments Digital Force Gauge (PCE-DFG 20K X)
PCE Instruments Digital Force Gauge (PCE-DFG 20K X) is a high-precision measuring device designed to evaluate tensile and compressive forces up to 20 kN. It features an external load cell, making it ideal for laboratory and industrial applications.
With an integrated 32GB memory, this force gauge can store up to 30 million measurement points, ensuring reliable data logging over extended periods. Its USB-C interface allows easy data transfer to a PC, while the graphical LCD provides real-time numerical and visual data representation.
Specifications and Dimensions
Measuring range: 0 … 20 kN
Accuracy: ±0.05 % F.S.
Display: 2.8-inch LCD with illumination
Adjustable measurement rate: 1 … 7,200 Hz
Memory capacity: 32GB (stores 30 million measurement points)
Power supply: USB 5V DC, 500 mA
Operating time: 13 hours
Protection class: Measuring cell (IP67), Device (IP52)
Dimensions (L x W x H): 165 x 85 x 32 mm
Key Features and Benefits
Measures tensile and compressive forces up to 20 kN
High-resolution LCD with graphical display
32GB internal memory for extensive data storage
USB-C interface for fast data transfer
Customizable alarm modes: Inside, Outside, Crack, Switch-off
Supports multiple measurement units: N, kg, t, kN, Pa, kPa, Nm, lb, ft, g
Includes external load cell for versatile applications
Calibration reminder ensures accurate results
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-DFG 20K X
Digital force gauge: see the listed specifications for this model.
