PCE Instruments Digital Force Gauge (PCE-DFG 200 X)

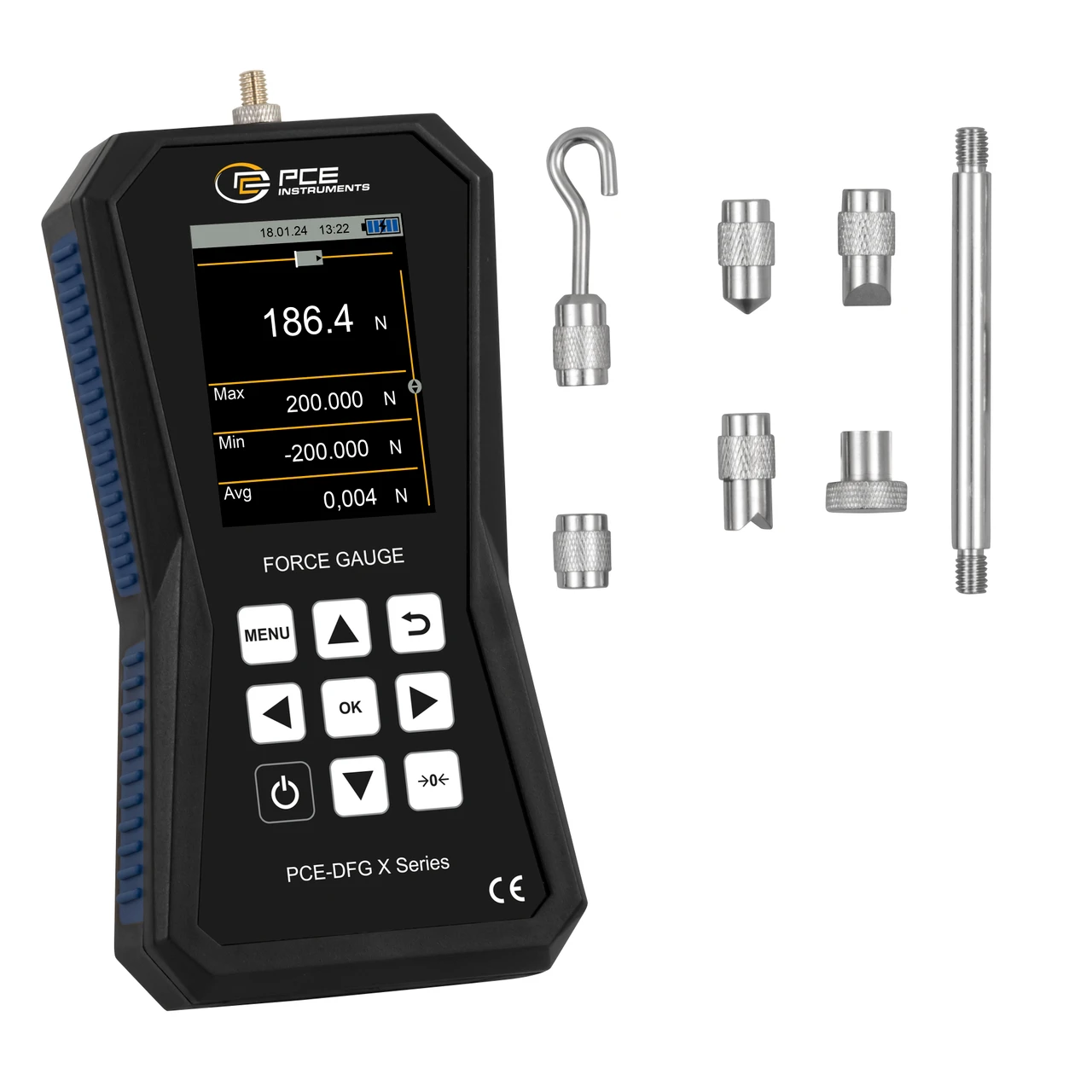

PCE Instruments Digital Force Gauge (PCE-DFG 200 X) is a high-precision device for measuring tensile and compressive forces up to 200 N. Designed for laboratory testing and industrial applications, it features an internal measuring cell with multiple attachment options.
This force gauge includes a 32GB memory capable of storing 30 million measuring points. The USB-C interface allows seamless data transfer to a PC, and its graphical LCD display provides real-time numerical and visual data representation. A bar chart function further enhances the usability of the measurement process.
Specifications and Dimensions
Measuring range: 0 … 200 N
Resolution: 0.1 N
Accuracy: ±0.05 % F.S.
Display: 2.8-inch LCD with illumination
Adjustable measurement rate: 1 … 7,200 Hz
Memory capacity: 32GB (stores 30 million measurement points)
Power supply: USB 5V DC, 500 mA
Operating time: 13 hours
Protection class: Device (IP52)
Dimensions (L x W x H): 165 x 85 x 32 mm
Key Features and Benefits
Measures tensile and compressive forces up to 200 N
High-resolution LCD with graphical display
32GB memory for extended data logging (30 million points)
USB-C interface for fast data transfer
Customizable alarm modes: Inside, Outside, Crack, Switch-off
Supports multiple measurement units: N, kg, t, kN, Pa, kPa, Nm, lb, ft, g
Includes adapter set and carrying case
Calibration reminder ensures precise measurements
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-DFG 200 X
Digital force gauge: see the listed specifications for this model.
