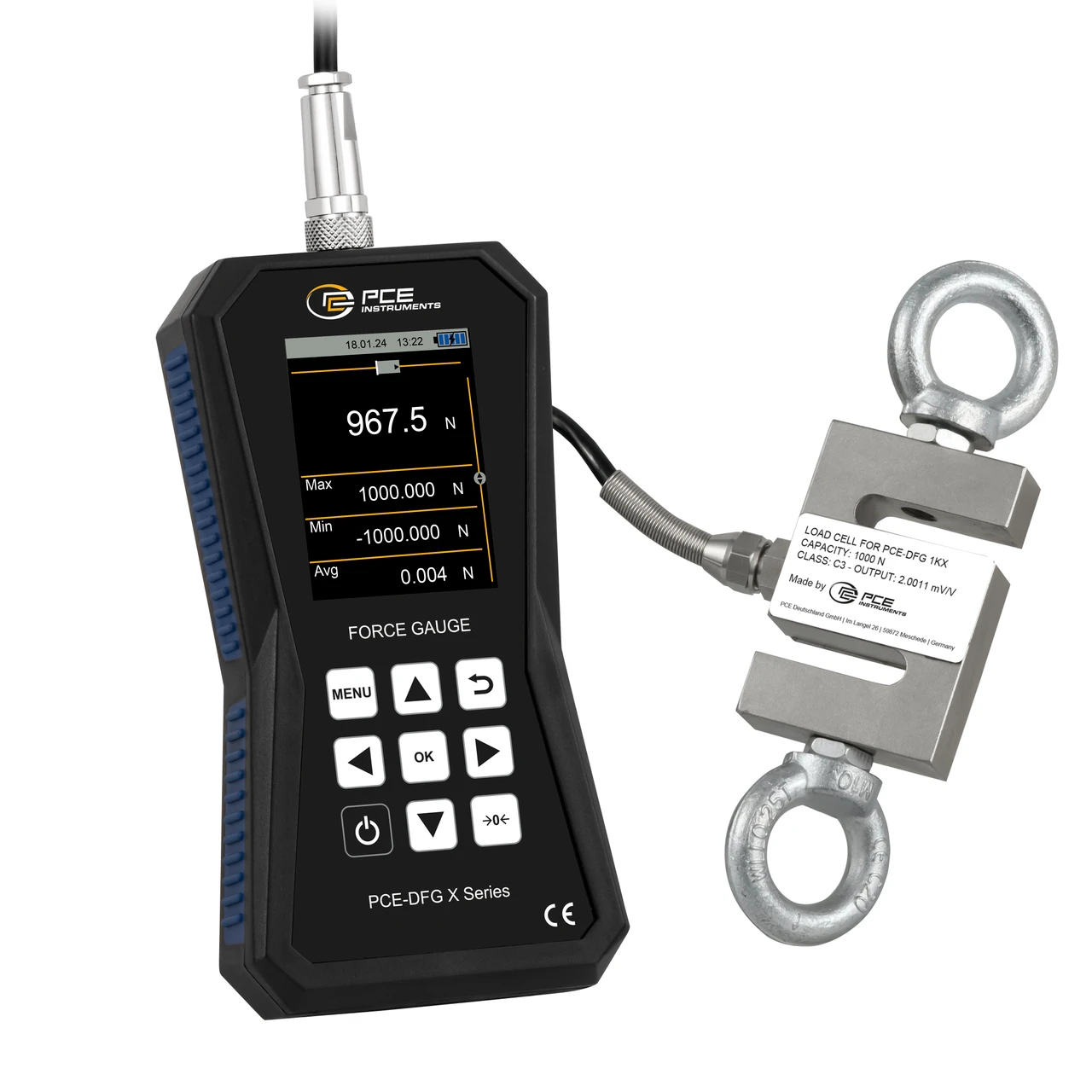

PCE Instruments Digital Force Gauge (PCE-DFG 1K X)
PCE Instruments Digital Force Gauge (PCE-DFG 1K X) is designed to accurately measure tensile and compressive forces up to 1,000 N. With an external load cell and high-precision readings, this device is ideal for laboratory testing, industrial applications, and quality control processes.
The force gauge features a graphical LCD display that shows real-time numerical and graphical data, including a bar chart for better visualization. The device has a 32GB internal memory capable of storing 30 million measuring points. It also includes a USB-C interface for seamless data transfer to a PC.
Specifications and Dimensions
Measuring range: 0 … 1,000 N
Resolution: 0.5 N
Accuracy: ±0.05 % rdg.
Display: 2.8-inch LCD with illumination
Adjustable measurement rate: 1 … 7,200 Hz
Memory capacity: 32GB (stores 30 million measurement points)
Power supply: USB 5V DC, 500 mA
Operating time: 13 hours
Protection class: Device (IP52), Measuring cell (IP67)
Weight: 255 g / 0.5 lb
Key Features and Benefits
Measures tensile and compressive forces up to 1,000 N
External measuring cell with IP67 protection
High-resolution LCD with graphical display
USB-C interface for fast data transfer
32GB memory for extended data logging (30 million points)
Customizable alarm modes: Inside, Outside, Crack, Switch-off
Supports multiple units: kPa, kg, g, ft, N, lb, t, kN, Pa, Nm, Ncm
Includes two M10-threaded eyebolts for secure attachments
Calibration reminder ensures accurate performance
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-DFG 1K X
Digital force gauge: see the listed specifications for this model.
