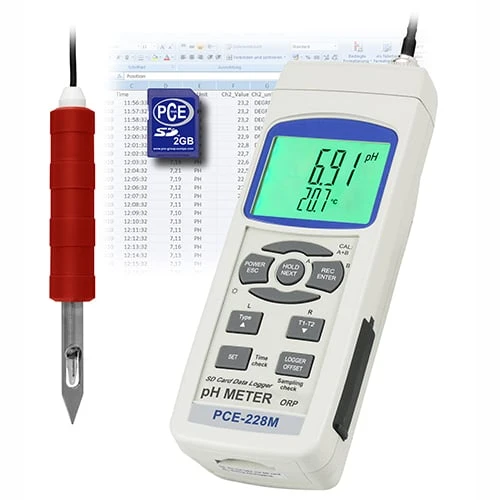

PCE Instruments Digital Food pH Meter (PCE-228M)
PCE Instruments Digital Food pH Meter (PCE-228M) is a high-precision device designed for pH and temperature measurement in food products such as meat, cheese, and sausage. This handheld meter ensures accurate and reliable readings, making it an essential tool in food production, quality control, and research applications.
It features a stainless steel penetration probe for direct measurement in solid and semi-solid food products. The built-in SD card storage allows users to log measurements directly in Excel format, while the RS-232 interface enables real-time data transfer to a PC.
Specifications and Dimensions
pH Measurement Range: 0.00 … 14.00 pH
Temperature Measurement: 0.0 … 65.0°C / 32 … 149°F
Resolution: 0.01 pH, 0.1°C
Accuracy: ±(0.02 pH + 2 digits), ±0.5°C
Temperature Compensation: Automatic (0 – 65°C) or manual (0 – 100°C)
Data Storage: SD card (1 – 16 GB, 2 GB included)
Interface: RS-232 for PC connection
Power Supply: 6 x 1.5V AA batteries or optional 9V adapter
Operating Temperature: 0 … 50°C / 32 … 122°F
Dimensions: 177 x 68 x 45 mm / 7 x 2.7 x 1.8 in
Weight: 490 g / 1.1 lb
Key Features and Benefits
Designed for pH and temperature measurement in food products like meat, cheese, and sausage
Stainless steel blade probe ensures precise penetration in solid and semi-solid foods
Automatic data logging with SD card storage in Excel format for easy analysis
Three-point calibration system guarantees accurate pH readings
1 x PCE-228M Food pH Meter
1 x Stainless Steel Blade Probe
1 x SD Memory Card (2 GB)
1 x Temperature Sensor
6 x AA Batteries
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-228M
Digital ph meter: see the listed specifications for this model.
