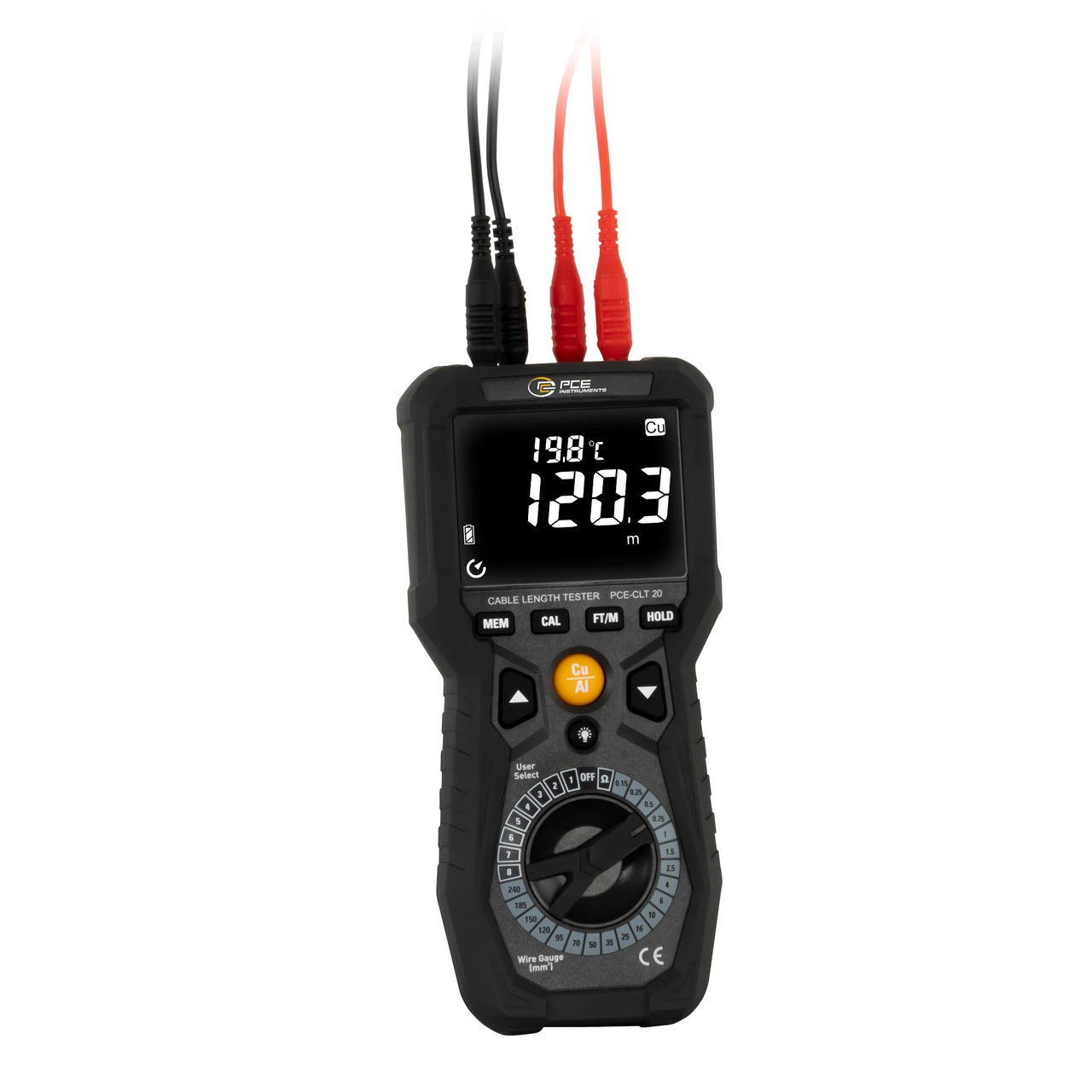

PCE Instruments Digital Electrical Tester for Cable Length and Resistance (PCE-CLT 20)
PCE Instruments Digital Electrical Tester for Cable Length and Resistance (PCE-CLT 20) is a powerful device designed for precise cable length and resistance measurements. With a range of up to 30 km, this electrical tester provides fast and reliable results for copper and aluminum cables.
The device features a backlit LCD screen, 8 memory slots for custom cable types, and selectable measurement units, including meters, kilometers, and feet. The digital cable length and resistance tester ensures accurate measurements in industrial applications, electrical installations, and maintenance tasks.
Specifications and Dimensions
Measurement Range: 0.1 m to 30 km
Resolution: 0.1 m (for shorter cables), 0.01 km (for longer cables)
Resistance Measurement Range: 0.1 mΩ to 1999.9 Ω
Temperature Measurement: -5°C to +50°C
Display: Backlit LCD screen
Memory: 8 storage slots for custom cable types
Supported Cable Materials: Copper and aluminum
Selectable Units: Meters (m), kilometers (km), feet (ft)
Protection Class: IP30
Power Supply: 6 x 1.5V AA batteries
Automatic Shutdown: 15 minutes (adjustable)
Device Dimensions: 213 x 100 x 65 mm (8.3 x 3.9 x 2.5 in)
Key Features and Benefits
Measures cable length, resistance, and temperature with high accuracy
8 memory slots for saving frequently used cable types
Compatible with both copper and aluminum cables
Automatic shutdown to conserve battery life
LCD display with adjustable brightness for clear readings
Supplied with Kelvin clamps for secure connections
1 x Electrical Tester PCE-CLT 20
2 x Measurement Cables with Kelvin Clamps
6 x AA 1.5V Batteries
1 x Carrying Case
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-CLT 20
