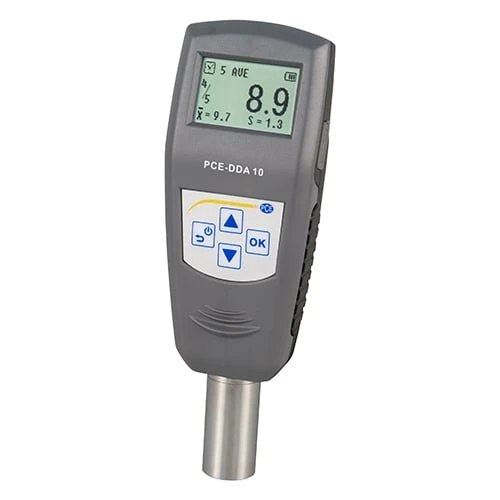

PCE Instruments Digital Durometer with USB Data Transfer (PCE-DDA 10)
PCE Instruments Digital Durometer (PCE-DDA 10) is a portable handheld device designed to measure Shore A hardness in soft materials such as gums, elastomers, natural rubber, neoprene, casting resin, white PVC, and leather. It offers a high reading accuracy of 0.1 hardness units and ensures reliable measurements for both single and serial tests.
Specifications and Dimensions
Measurement Range: 0 … 100 Shore A
Indenter: 35°± 0.25°
Memory: Saves up to 500 measurements
Dimensions: 153 x 50 x 29 mm / 6 x 1.9 x 1.1 in (main body)
Weight: Approx. 300 g / < 1 lb
Power Supply: 3.6V rechargeable Ni-MH battery
Max. Operating Time: Up to 20 h continuous use at full charge
Charging Time: Approx. 3 h
Standards: GB/T 531.1, ISO 7619-1, ASTM D 2240
Key Features and Benefits
Portable handheld digital hardness testing device
Measures Shore A hardness in soft gums, rubber, and elastomers
USB port with downloadable PC software for data transfer
Large, easy-to-read display for quick readings
Suitable for single and serial hardness measurements
1 x PCE-DDA 10 Shore A Durometer
1 x Calibration Plate
1 x Charger / AC Power Adapter
1 x Mini USB Cable
1 x Carrying Case
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-DDA 10
