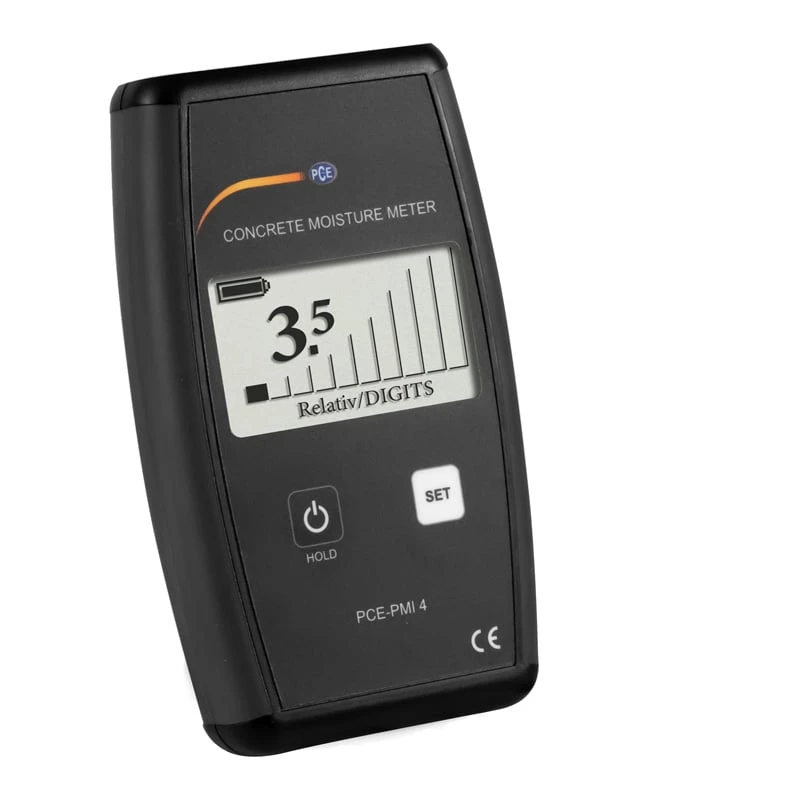

PCE Instruments Digital Damp Meter (PCE-PMI 4)
PCE Instruments Digital Damp Meter (PCE-PMI 4) is a professional tool designed for fast and accurate moisture detection in construction materials. With non-destructive measurement technology, it allows for precise analysis of moisture levels in concrete and screed without causing surface damage.
This damp meter features an ergonomic design with anti-slip rubber for comfortable handling. The integrated graphical and numeric display provides instant readings, while the max HOLD function ensures the highest measurement is captured.
Specifications and Dimensions
Concrete Moisture (H2O): 0 to 6%
Cement Screed (H2O): 0 to 6%
Cement Screed (Calcium Carbide Method): 0 to 4%
Anhydrite Screed (H2O): 0 to 3.5%
Anhydrite (Calcium Carbide Method): 0 to 1.9%
Caisson Scale: 0.3 to 15.3 m
Relative Scale: 0 to 100%
Accuracy: ± 0.5%
Resolution: 0.1%
Display: Graphical monochrome, 128 x 64 pixels, 61 x 33 mm (2.4 x 1.3 in), Backlit
Operating Conditions: 5 to 40°C (41 to 104°F)
Automatic Shutdown: After 5 minutes of inactivity
Power Supply: 2 x 1.5V AA Batteries
Battery Life: Approx. 20 hours
Dimensions: 147 x 89 x 33 mm (5.8 x 3.5 x 1.3 in)
Weight: Approx. 250 g (< 1 lb with batteries)
Key Features and Benefits
Non-destructive moisture measurement for concrete and screed
Eight spring electrodes for precise readings
Numeric and graphical display for easy data interpretation
Max HOLD function captures highest measurement
Auto shutoff feature conserves battery life
Ergonomic anti-slip rubber grip for comfortable use
Portable and lightweight design for easy transport
1 x Damp Meter PCE-PMI 4
1 x Transport Case
2 x 1.5V AA Batteries
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-PMI 4
