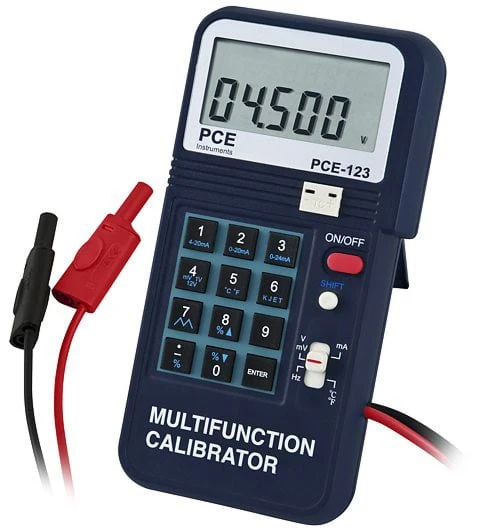

PCE Instruments Digital Current Calibrator (PCE-123)
PCE Instruments Digital Current Calibrator (PCE-123) is a portable and versatile tool designed for the simulation and measurement of electrical signals, making it ideal for testing and calibrating controllers, measuring instruments, and process control devices.
It features automatic step and ramp functions, intuitive keypad operation, and a large LCD for easy readability. The calibrator meets ASTM standards and is widely used in electronics workshops, trade, and automation industries.
Specifications and Dimensions
Measurement parameters: mA, mV, V, frequency (Hz), temperature (°C/°F)
DC Current Range: 4 to 20mA / 0 to 20mA / 0 to 24mA
Accuracy: ±0.025% ±3µA
Frequency Range: 1 to 62,500Hz
Temperature Compatibility: Type-K, J, E, T thermocouple sensors
Operating conditions: 0 … 50 °C / 32 … 122 °F, <85% relative humidity
Power supply: 1 x 9V battery or 6 x 1.5V batteries
Dimensions: 88 x 168 x 26mm / 3.4 x 6.6 x 1 in
Weight: 330 g / 11.6 oz
Key Features and Benefits
Simulates and measures electrical signals with high accuracy
Supports multiple output signal formats including mA, mV, V, Hz, and temperature
Automatic ramp function and preset output signal steps (0 … 100%)
LCD display with intuitive keypad operation
1 x PCE-123 Process Calibrator
1 x Carrying Case
1 x Type-K Adaptor
1 x Test Cables with Alligator Clips
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-123
