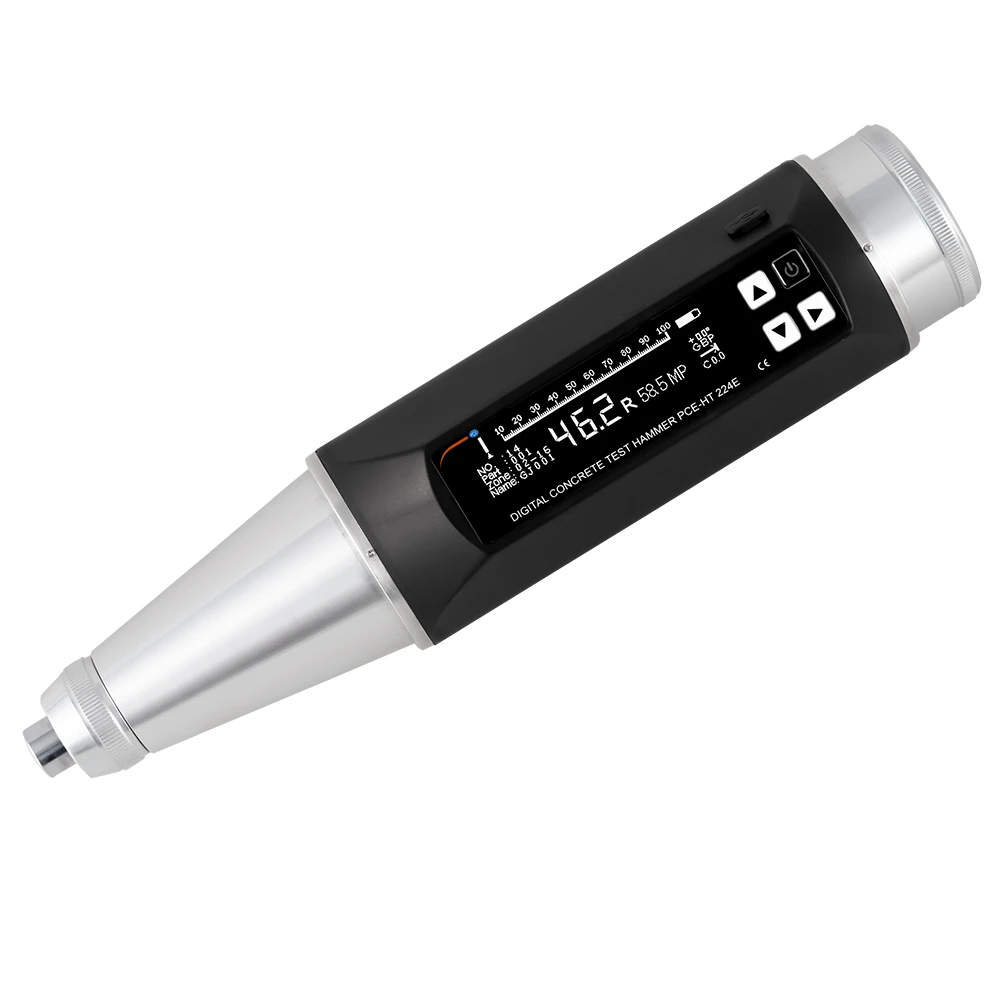

PCE Instruments Digital Concrete Test Hammer (PCE-HT 224E)
PCE Instruments Digital Concrete Test Hammer (PCE-HT 224E) is designed for precise concrete hardness testing in construction and industrial applications. Using the Schmidt principle, it delivers consistent impact energy to measure material strength. The built-in OLED display provides real-time readings, and data can be stored for later analysis.
With a measurement range of 10 to 100 N/mm² (1500 to 8500 PSI), this concrete test hammer ensures accuracy with ±0.1 R precision. The device allows testing at multiple angles and supports units like PSI, MPa, kgF/cm², and N/mm².
Specifications and Dimensions
Measuring Range: 10 to 100 N/mm², 1500 to 8500 PSI
Accuracy: ±0.1 R
Impact Energy: 2.207 Nm / 0.225 kgm
Display: OLED screen
Storage Capacity: 1,000 data units with 256 measurements each
Interface: Micro USB
Operating Conditions: -40 to 60°C (-40 to 140°F)
Power Supply: 3.7V Li-ion battery (rechargeable)
External Power: 100-240V AC adapter (5V DC, 1A output)
Dimensions: 280 x 75 x 60 mm (11 x 3 x 2.4 in)
Weight: 1.2 kg (2.6 lbs)
Key Features and Benefits
Digital OLED display for real-time measurement readings
Measuring range from 10 to 100 N/mm² with high precision
Rechargeable battery for convenient on-site testing
Multiple test angles: downward, horizontal, and upward
USB connectivity for easy data transfer to a PC
Stores up to 1,000 data units for later analysis
Ideal for construction, engineering, and quality control testing
Durable, lightweight, and portable for field applications
1 x Concrete Test Hammer (PCE-HT 224E)
1 x Mini USB Cable
1 x Software (Downloadable)
1 x Transport Case
1 x Instruction Manual
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-HT 224E
