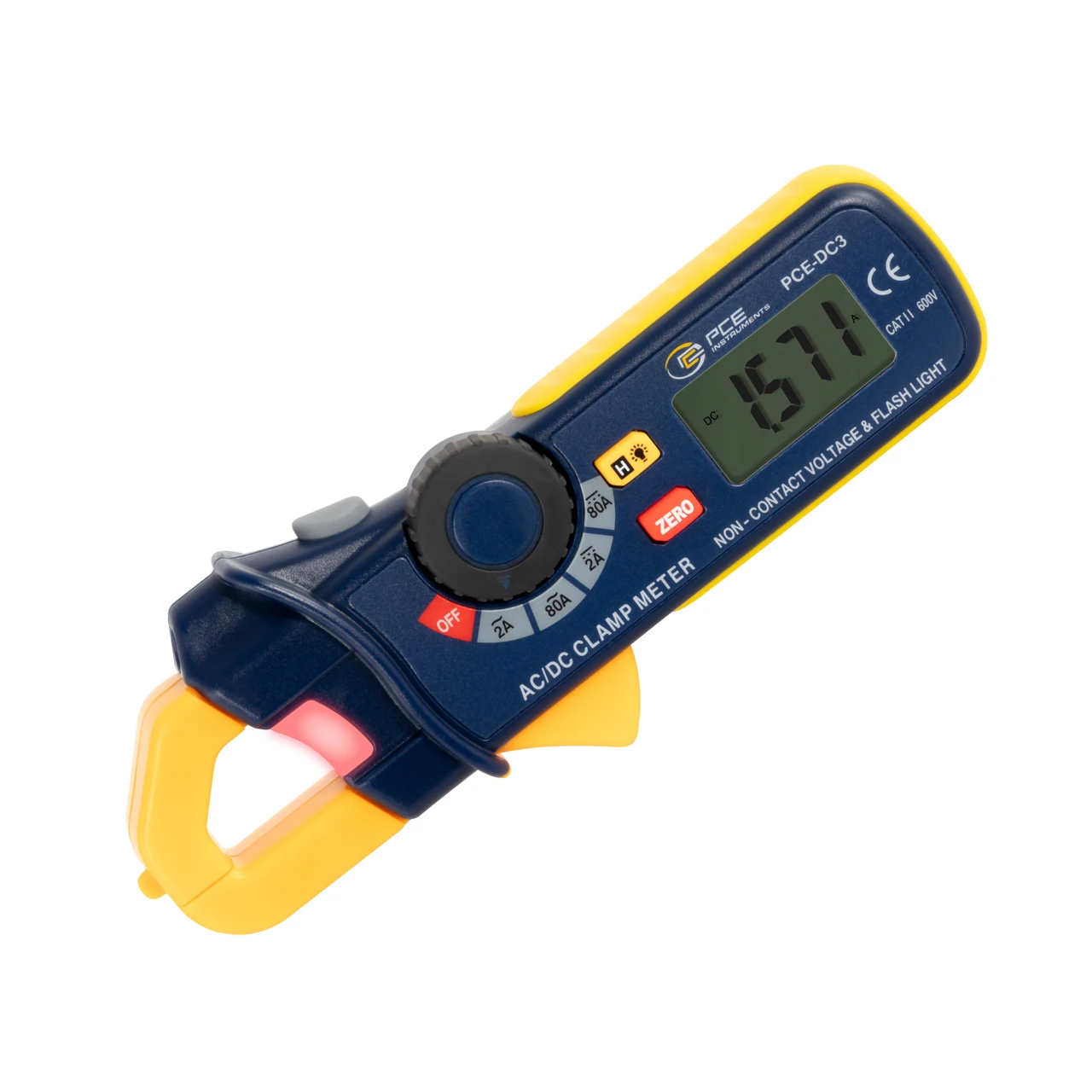

PCE Instruments Digital Clamp Meter (PCE-DC3)
PCE Instruments Digital Clamp Meter (PCE-DC3) is designed for precise AC/DC current measurements up to 80 amps. Its compact design and 18 mm (0.7 in) jaw opening make it ideal for accessing tight spaces in electrical installations. This clamp meter features a non-contact voltage tester and an integrated flashlight, enhancing safety and convenience during measurements.
The backlit 4-digit LCD ensures clear readings even in low-light environments, making it suitable for various applications, including troubleshooting and maintenance in industrial settings.
Specifications and Dimensions
AC Current (50/60 Hz):
Range: 2 A / 80 A
Resolution: 1 mA / 100 mA
Accuracy: ±2.8% + 10 digits / ±3.0% + 8 digits
Accuracy: ±3.0% + 10 digits / ±3.0% + 8 digits
AC Overload Protection: 100V AC up to 600V AC (50/60 Hz)
Flashlight Illumination: White LED
Conductor Diameter: Max. 18 mm / 0.7 in
Display: 3 2/3 digit LCD with backlighting
Power Supply: 2 x 1.5V AAA batteries
Casing Material: PVC
Dimensions: 164 x 65 x 32 mm / 6.4 x 2.5 x 1.2 in
Weight: 175 g / <1 lb
Standards: EN61010-1; CAT II / 600V, EN61010-2-032; CAT III / 300V
Key Features and Benefits
Measures AC/DC currents up to 80 amps
Non-contact voltage detection enhances user safety
Integrated flashlight illuminates measurement points in dark areas
Automatic range selection simplifies operation
Compact design with 18 mm jaw opening allows access to confined spaces
Backlit 4-digit LCD ensures clear readings in low-light conditions
DCA zero adjustment function for accurate DC measurements
1 x PCE-DC3 Clamp Meter
1 x Carrying Case
2 x 1.5V AAA Batteries
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-DC3
Digital clamp meter: see the listed specifications for this model.
