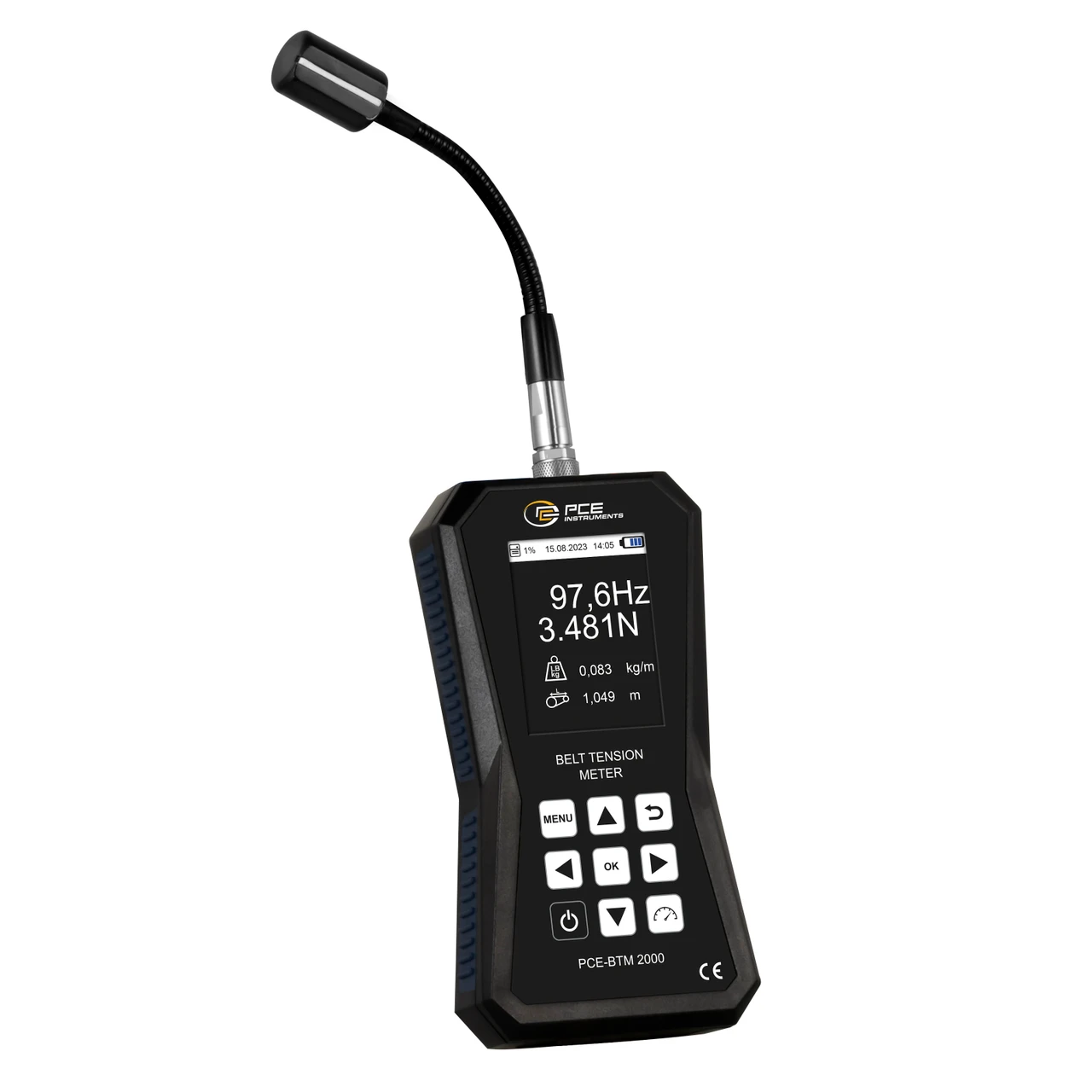

PCE Instruments Digital Belt Tension Meter (PCE-BTM 2000A)
PCE Instruments Digital Belt Tension Meter (PCE-BTM 2000A) provides fast and precise measurements of belt tension, ensuring optimal performance for machinery and equipment. Featuring an intuitive menu with six languages and a memory for 750 measurements, this device simplifies maintenance and prevents belt-related failures.
The belt tension meter detects vibrations and calculates belt tension in Newtons (N) and Hertz (Hz). The flexible gooseneck sensor allows easy access to tight spaces, making it an ideal tool for industrial production, conveyor systems, and automotive applications.
Specifications and Dimensions
Measuring Range: 10 … 900 Hz
Accuracy: ± (1% of reading + 4 digits)
Repeatability: ± 1 Hz
Resolution: <100 Hz: 0.1 Hz / >100 Hz: 1 Hz
Maximum Belt Length: 9,999 m
Maximum Belt Mass: 9,999 kg/m
Sensor Length: 16 cm / 6.2 in
Memory: Stores 750 measured values (15 sets of 50 points each)
Power Supply: 3 x 1.5V AA batteries
Operating Conditions: 0 … 50 °C / 32 … 122 °F; max. 95% R.H.
Storage Conditions: -20 … 65 °C / -4 … 149 °F; max. 95% R.H.
Dimensions: 150 x 80 x 38 mm / 5.9 x 3.1 x 1.4 in
Weight: Approx. 200 g / 7 oz (including batteries)
Key Features and Benefits
Measures belt tension in both Newtons (N) and Hertz (Hz)
Flexible gooseneck sensor for accessing tight spaces
Graphical display with intuitive six-language menu
Memory storage for up to 750 measurement records
Ideal for belt-driven machinery, conveyors, and automotive applications
Battery-powered for portable use with long-lasting operation
Includes a carrying bag for easy transportation
1 x Belt Tension Meter PCE-BTM 2000A
1 x Standard Sensor Head
3 x 1.5V AA Batteries
1 x Carrying Bag
1 x Operating Manual
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-BTM 2000A
