Digital battery tester details

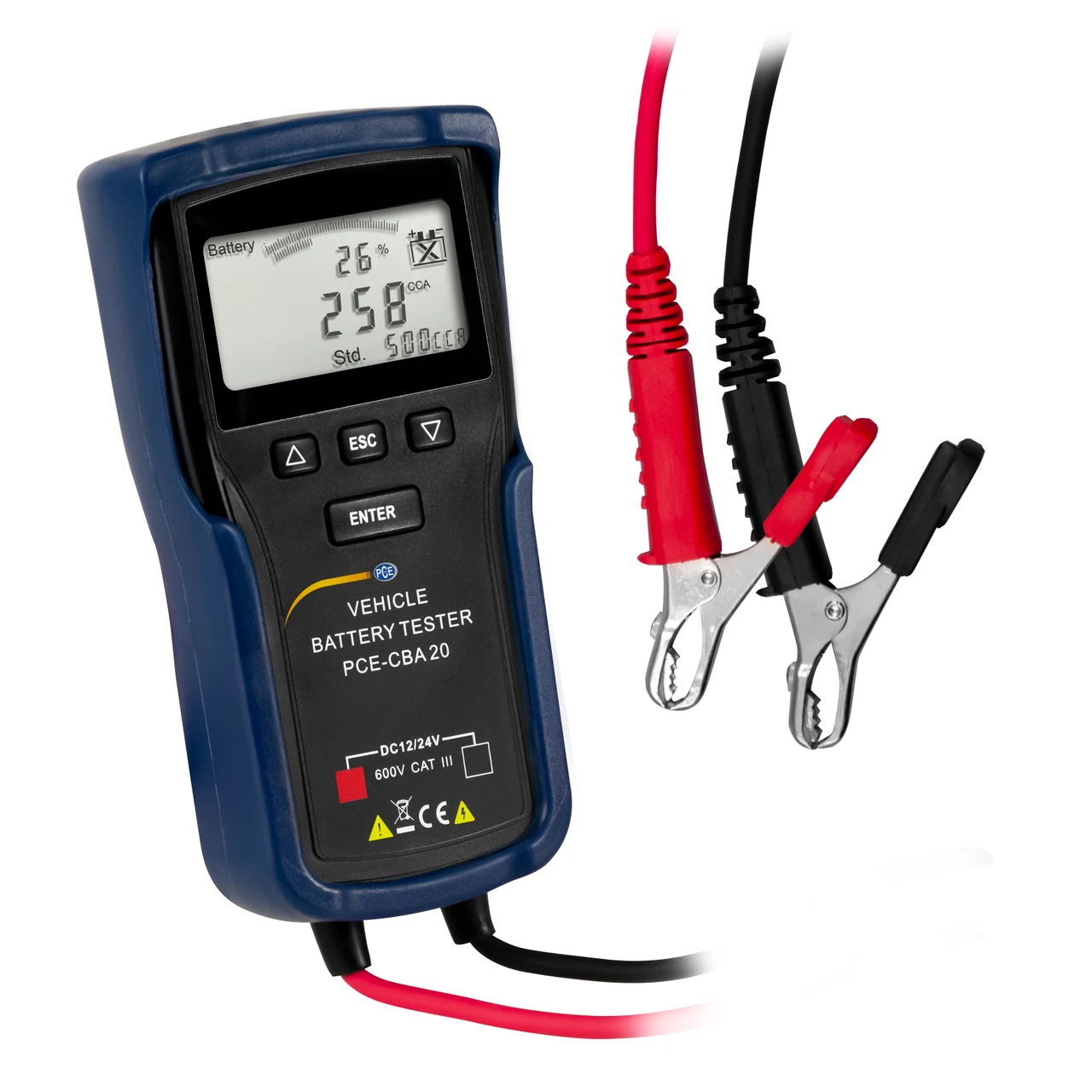

PCE Instruments Digital Automotive Battery Tester (PCE-CBA 20)
PCE Instruments Digital Automotive Battery Tester (PCE-CBA 20) is a versatile tool for evaluating 12V and 24V starter batteries. Designed for quick and precise diagnostics, this automotive tester assesses battery health, charging system performance, and cold cranking amps (CCA). It provides real-time results on an easy-to-read LCD display, making it an essential tool for vehicle maintenance.
With its built-in Kelvin clamps and automatic activation, the car battery diagnostic tester operates directly from the tested battery, requiring no additional power source.
Specifications and Dimensions
Measurement Object: 12V / 24V starter batteries
Battery Standards: DIN, JIS, EN, SAE
Test Time: 3 – 10 seconds
Cold Cranking Amps (CCA): 100 – 1700 A
Display: 2.75" LC screen
Power Supply: 9 – 35V DC via test voltage
Connection Type: Kelvin clamps
Dimensions: 185 x 95 x 41 mm / 7.3 x 3.7 x 1.6 in
Cable Length: Approx. 70 cm / 27.5 in
Weight: Approx. 250 g / 8.8 oz
Key Features and Benefits
Tests both 12V and 24V vehicle batteries
Measures cold cranking amps (CCA) for battery health assessment
Quick and easy operation with short measurement time
Automatic activation upon connection to a battery
Clear LC display for real-time test results
Ideal for automotive workshops and personal vehicle maintenance
1 x Automotive Tester / Car Battery Tester PCE-CBA 20
1 x Instruction Manual
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-CBA 20
