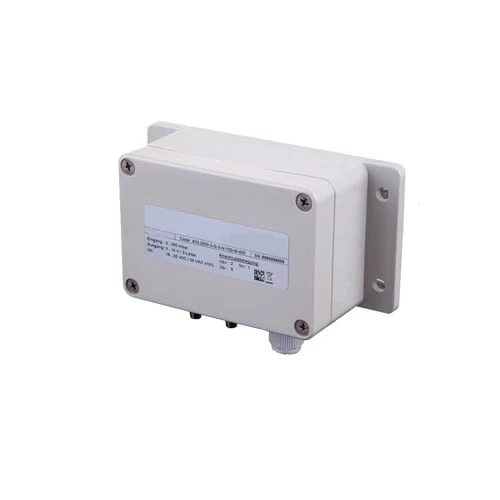

PCE Instruments Differential Pressure Transmitter (PCE-DDMU 10)
PCE Instruments Differential Pressure Transmitter (PCE-DDMU 10) is a versatile measuring device designed for precise differential and relative pressure monitoring. Featuring selectable measuring ranges, high overload capacity, and an optional LCD display, this transmitter ensures accuracy and reliability for industrial applications.
This differential pressure transmitter guarantees long-term stability and consistent readings. The device is ideal for use in HVAC systems, cleanrooms, laboratories, and process control applications where precise pressure monitoring is required.
Specifications and Dimensions
User-adjustable measuring ranges
Static pressure: 1.6 mBar to 10,000 mBar
Response time: <100 ms
Damping adjustable via potentiometer: 0 – 5000 ms
Long-term stability: ≤ ± 1% FSO / year for PN < 6 mBar
Measuring rate: 12.5 Hz
Switching output: 2 x 230V / 2A change-over relays (3-wire)
Temperature error: ≤ ± 0.5% FSO / 10 K (typ.) for PN < 6 mBar
Operating temperature: 0 – 50°C / 32 – 122°F
Storage temperature: -10 – 70°C / 14 – 158°F
Power supply: 3-wire (19 – 32V), 2-wire (11 – 32V)
Current consumption: 3-wire (30mA), 2-wire (22mA)
Protection: IP54
Weight: 200 g / < 1 lb
Dimensions: 152 x 68.5 x 50 mm / 6 x 2.7 x 2 in
Key Features and Benefits
High-accuracy differential pressure monitoring
Switchable measuring ranges for flexibility
Compact and durable design
Adjustable damping for optimized performance
Optional LCD display for on-site reading
EMC compliance with EN 61326 for interference resistance
Includes automatic zero setting for easy recalibration
Output signal options: 0-10V, 4-20mA, and more
1 x PCE-DDMU 10 Differential Pressure Transmitter
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-DDMU 10
