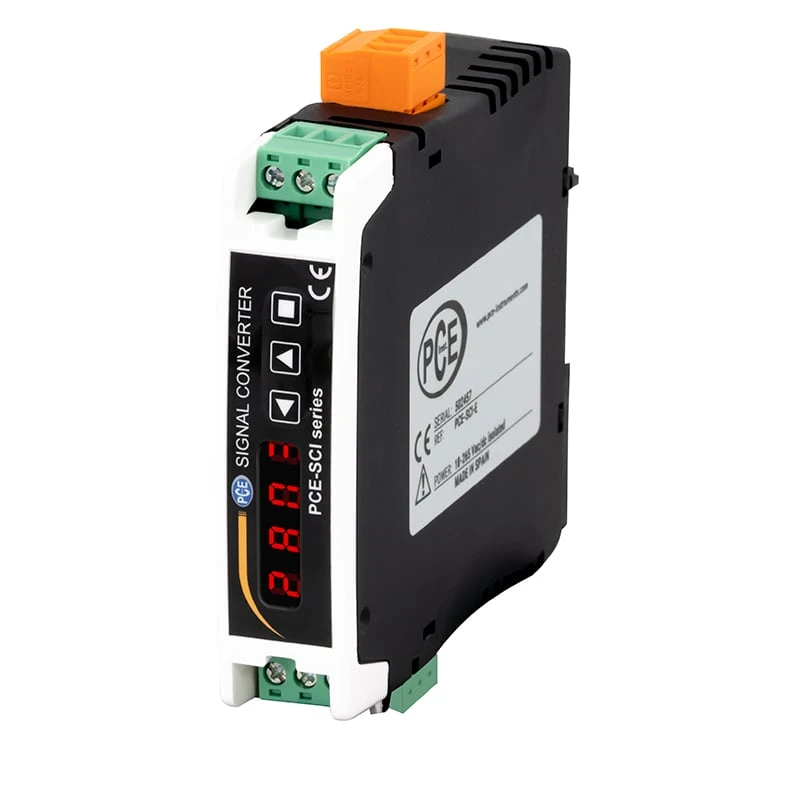

PCE Instruments Current Signal Converter (PCE-SCI-E)
PCE Instruments Current Signal Converter (PCE-SCI-E) is a highly versatile transducer designed for precise signal conversion and electrical isolation in industrial applications. With adjustable measuring ranges up to 600 V AC/DC and 5 A AC/DC, it enables accurate monitoring and transmission of electrical signals.
This current signal converter supports both active and passive output signals, making it adaptable for various process control systems. Its built-in keypad allows easy configuration without additional cables or software. The device mounts on a DIN rail, ensuring secure installation.
Specifications and Dimensions
Input Voltage Ranges: 0 … 600 V AC/DC
Input Current Ranges: 0 … 5 A AC/DC
Accuracy: <0.3% of full scale
Overload Protection: Up to 800 V AC/DC
Measuring Resistance: 13 MΩ (high voltage), 81 KΩ (low voltage)
Output Signal: 4 … 20 mA (active/passive) or 0 … 10 V DC
Step Response: <350 ms (AC), <90 ms (DC)
Power Supply: 18 … 265 V AC/DC
Electrical Isolation: 3000 Vrms for 60 seconds
Protection Class: IP30
Operating Temperature: 0 … 50°C / 32 … 122°F
Storage Conditions: -20 … 70°C / -4 … 158°F
Mounting: Standard DIN rail 35 x 7.5 mm
Dimensions: 106 x 108 x 22.5 mm / 4.1 x 4.2 x 0.9 in
Weight: <150 g / 5.3 oz
Key Features and Benefits
Converts and isolates electrical signals for process control
Supports a wide range of input and output configurations
Quick setup with built-in keypad, no additional software needed
Provides stable signal transmission with minimal interference
Ideal for industrial applications requiring precise signal conversion
DIN rail mounting for secure and easy installation
Robust design with long-term reliability
1 x Current Signal Converter PCE-SCI-E
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-SCI-E
