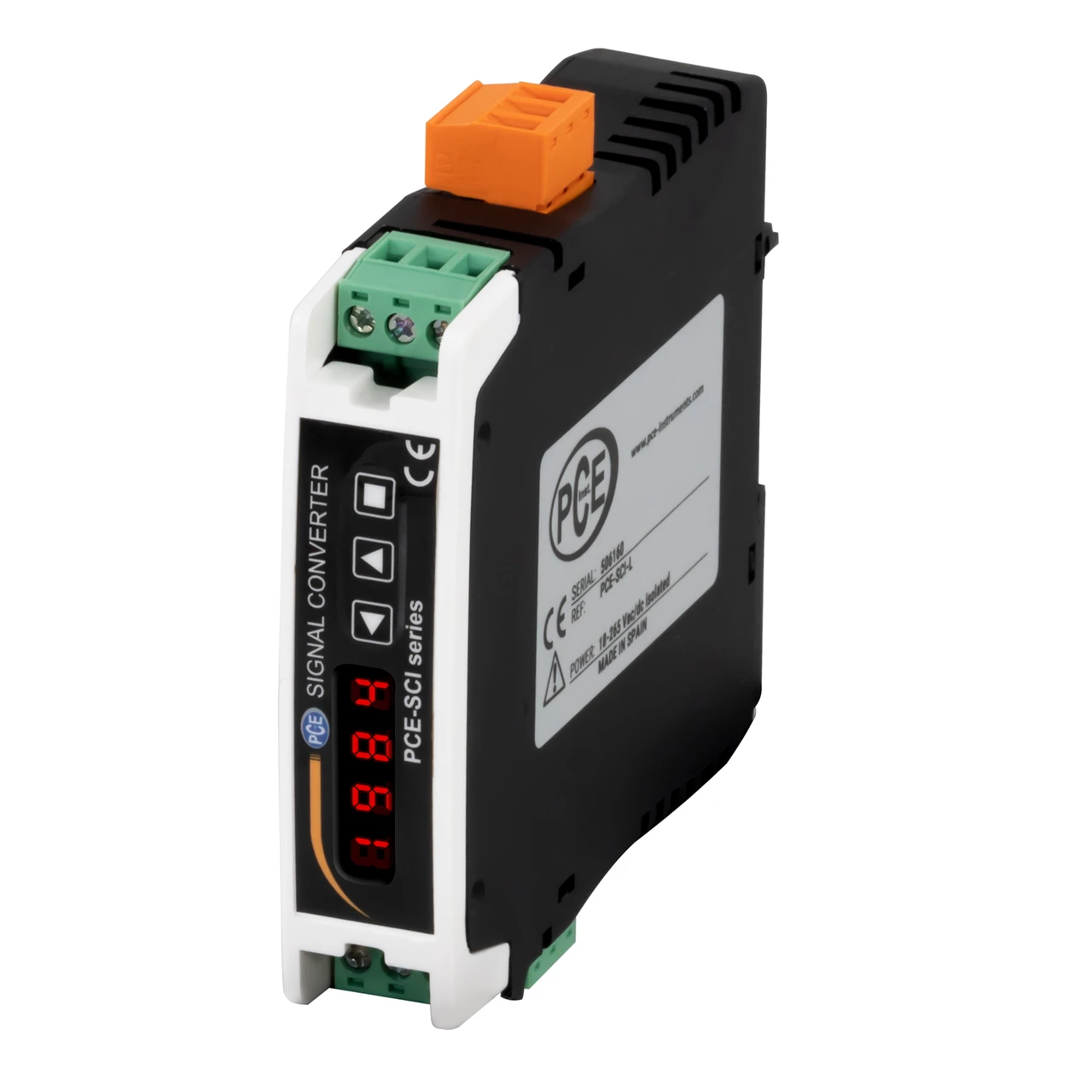

PCE Instruments Current Measuring Transducer (PCE-SCI-L)
PCE Instruments Current Measuring Transducer (PCE-SCI-L) is a versatile transducer designed for precision signal conversion in industrial applications. It supports millivolt and current signals with a wide configuration range. The output signal can be selected between 4 … 20 mA and 0 … 10 V DC, making it adaptable to various systems.
This current measuring transducer is ideal for integrating load cells and force sensors in the range of 0 … 5 mV to 0 … 80 mV, including bipolar signals from ±5 mV to ±80 mV. The device also supplies +5 V DC excitation voltage, ensuring compatibility with various load cell applications.
Specifications and Dimensions
Measurement Range: -80 mV … +80 mV
Resolution: 0.1 mV
Accuracy: 0.05 to 0.15% FS (depending on input range)
Output Signal: 4 … 20 mA or 0 … 10 V DC
Excitation Voltage: +5 V DC
Power Supply: 24 … 240 V DC ±10%, 45 … 65 Hz
Insulation: 3000 Vrms for 60 seconds
Operating Temperature: 0 … 50°C / 32 … 122°F
Storage Conditions: -20 … 70°C / -4 … 158°F
Mounting: Standard 35 mm DIN rail
Protection Class: IP30
Dimensions: 110 x 22 x 118 mm / 4.3 x 0.9 x 4.6 in
Key Features and Benefits
Supports both unipolar and bipolar millivolt signals
Configurable via front keypad and digital display
Password protection prevents unauthorized adjustments
Provides excitation voltage for connected sensors
SOS mode enables quick maintenance without process interruptions
DIN rail mounting ensures secure installation
Reliable insulation and high signal accuracy
1 x Current Measuring Transducer PCE-SCI-L
1 x Operating Instructions
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-SCI-L
Transducer measuring instruments: see the listed specifications for this model.
