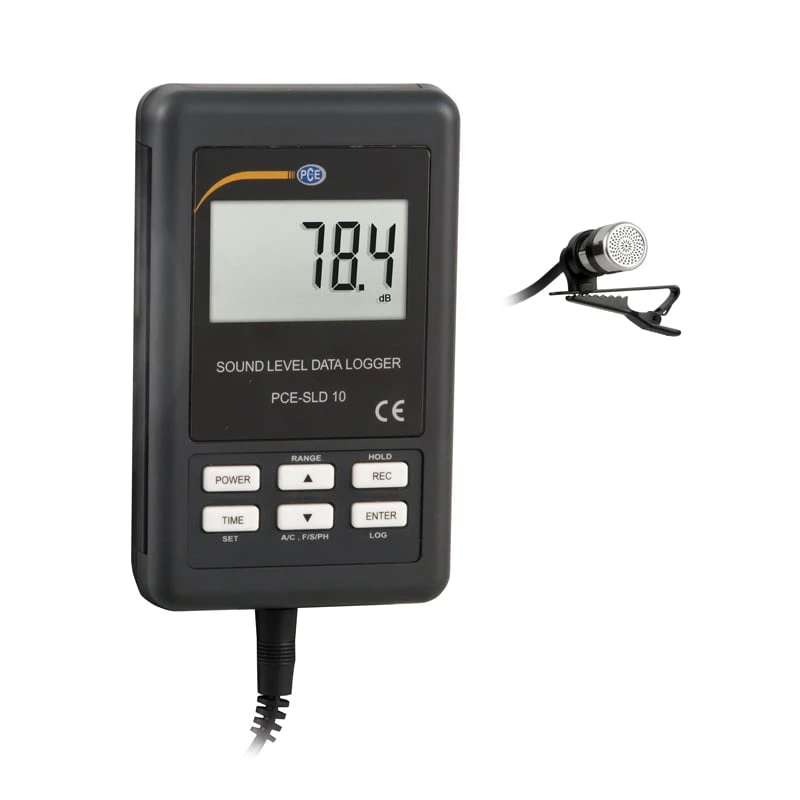

PCE Instruments Condition Monitoring Device (PCE-SLD 10)
PCE Instruments Condition Monitoring Device (PCE-SLD 10) is designed for continuous monitoring of sound levels in various environments. The device records real-time noise levels, stores the data on an SD card, and outputs analog signals for integration with external systems. The sound level data logger has a measuring range of 30 … 130 dB and allows for A or C frequency weighting.
The stored data is easily accessible via the SD card and can be analyzed without additional software. This makes it an ideal tool for monitoring industrial noise, workplace safety, and environmental noise levels.
Specifications and Dimensions
Measuring Range: 30 … 130 dB
Measurement Accuracy: Class 2 according to IEC61672
Resolution: 0.1 dB
Frequency Weighting: A & C
Frequency Range: 31.5 Hz … 8 kHz
Measurement Modes:
Hold by pressing a button
Analog Output: 4 … 20-mA
Data Storage: SD card (max. 16 GB)
Storage Rate Options: 5 s, 10 s, 30 s, 60 s, 120 s, 300 s, 600 s, 1800 s, 3600 s
Display Refresh Rate: ~1 second
Interface: Serial port for live visualization (SOFT-LUT-USB cable sold separately)
6 x 1.5V AAA batteries
9V / 1 A power adapter for long-term operation
Automatic Shutdown: After 10 minutes (disabled in power supply mode)
Operating Conditions: 0 … 50°C / 32 … 122°F, max. 85% RH
Weight: 230 g / < 1 lb
Device: 132 x 90 x 32 mm / 5.2 x 3.5 x 1.3 in
Microphone: 12.5 x 32 mm
Cable Length: 120 cm
Key Features and Benefits
Wide measurement range up to 130 dB for various applications
4 … 20-mA analog output for system integration
Stores measurement data as an Excel file on an SD card
Fast and slow measurement modes for precise noise assessment
Large LCD display for clear data visualization
Battery or mains-powered for flexible usage
External microphone for accurate sound level detection
1 x Condition Monitoring Device PCE-SLD 10
1 x External Microphone
1 x SD Memory Card
1 x 4 … 20-mA Screw Connectors
1 x 9V / 1 A Power Adapter
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-SLD 10
