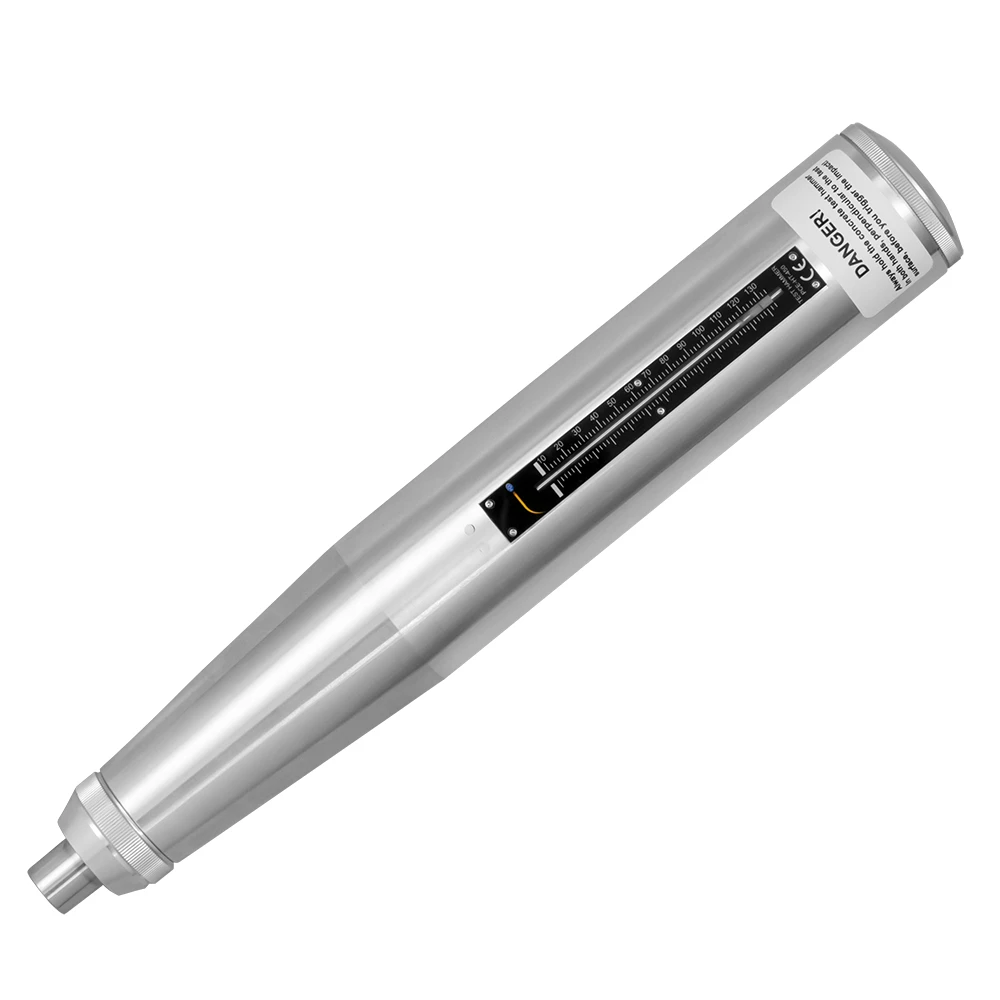

PCE Instruments Concrete Rebound Test Hammer (PCE-HT-450)
PCE Instruments Concrete Rebound Test Hammer (PCE-HT-450) is an analog device designed for assessing concrete strength using the Schmidt principle. With a high kinetic energy impact of 4.5 J, this test hammer is ideal for measuring the hardness of high-strength concrete used in heavily loaded structures like bridges, high-rise buildings, and foundations.
This high-impact concrete hardness tester offers quick and easy operation, making it a practical solution for engineers and construction professionals. To enhance safety, the device features a lockable firing pin, preventing accidental use by untrained personnel.
Specifications and Dimensions
Nominal Kinetic Energy: 4.5 J
Impact Spring Stroke: 100 mm / 3.9 in
Impact Spring Travel: 106 mm / 4.1 in
Impact Spring Force: 900 ± 40 N/m
Calibration Value: 88 ± 2
Radius of Spherical Tip: SR 35 mm / 1.3 in
Dimensions: Ø54 x 350 mm / Ø2.1 x 13.7 in
Weight: Approx. 2039 g / 72 oz
Key Features and Benefits
Schmidt principle-based rebound test hammer for accurate concrete hardness testing
High-impact kinetic energy of 4.5 J for testing high-strength concrete
Ideal for evaluating bridges, high-rise buildings, and foundation materials
Durable metal housing for long-lasting use in rugged environments
Lockable firing pin to prevent accidental operation by untrained users
Quick and easy operation for efficient field testing
Measures compressive strength with precision and reliability
1 x PCE-HT-450 Concrete Rebound Test Hammer
1 x Round Grindstone
1 x Carrying Case
1 x Instruction Manual
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-HT-450
