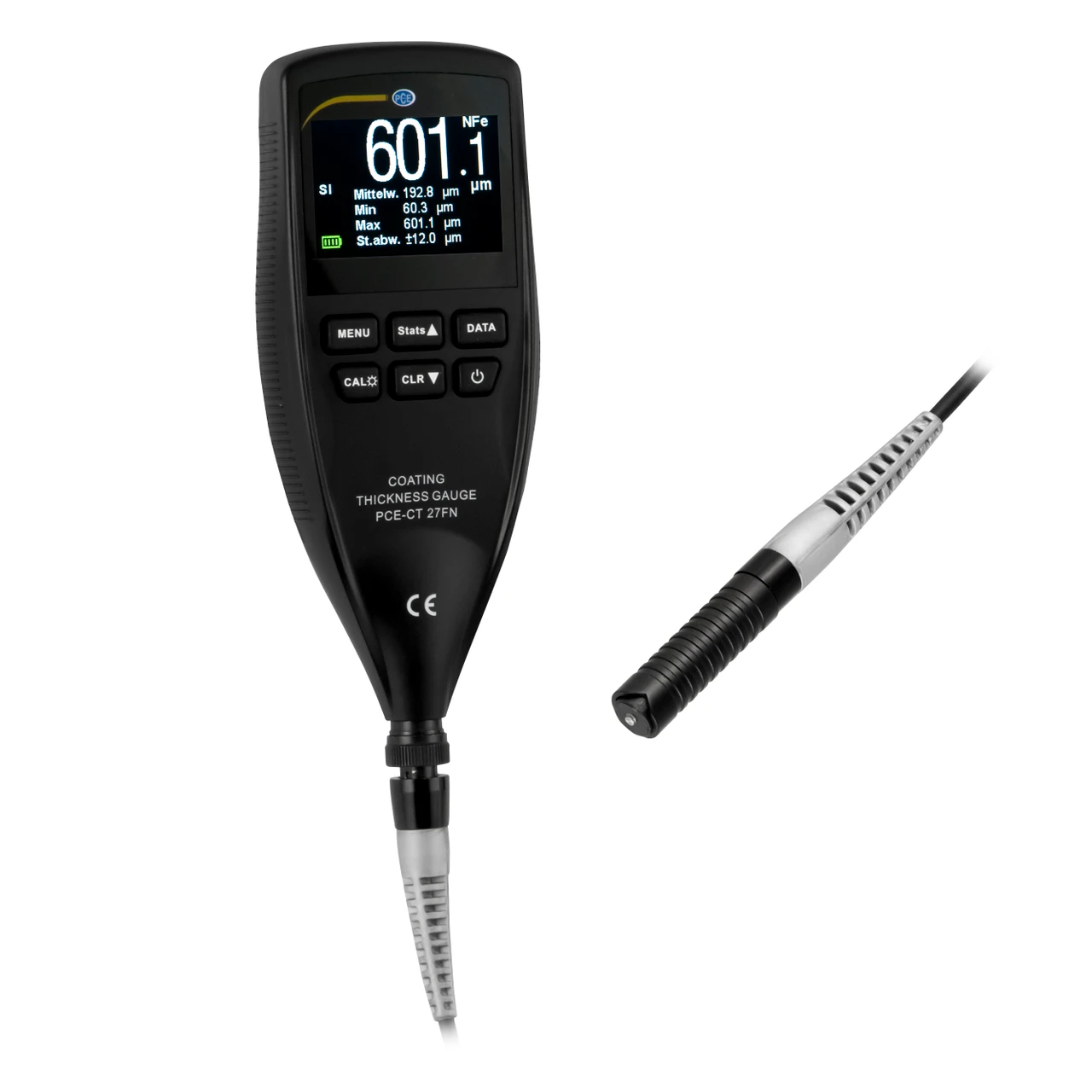

PCE Instruments Compact Coating Thickness Gauge (PCE-CT 27FN)
PCE Instruments Coating Thickness Gauge (PCE-CT 27FN) is a high-precision device for measuring non-magnetic coatings on metal surfaces. It is designed for automotive paint inspection, quality control, and material testing in manufacturing. With an external sensor and a v-groove, this gauge ensures accurate readings on flat and cylindrical parts.
The device features a measuring range of up to 1250 µm and includes a set of calibration standards for both ferrous and non-ferrous substrates. It operates with two 1.5V batteries, making it portable and efficient for field and laboratory use.
Specifications and Dimensions
Measuring Range: 0 … 1250 µm / 0 … 50 mils
Accuracy: ± (2% + 2 µm) / ± (2% + 0.1 mils)
Resolution: 0.1 µm / 0.1 mil
Measurable Substrates: Ferrous (Fe) and Non-Ferrous (NFe)
Operating Temperature: -10 … 50°C / 14 … 122°F
Power Supply: 2 x 1.5V batteries
Dimensions: 166 x 68 x 30 mm / 6.54 x 2.68 x 1.18 in
Weight: 0.180 kg / <1 lb
Key Features and Benefits
Measures non-magnetic coatings on ferrous and non-ferrous substrates
External sensor with v-groove for curved and small cylindrical surfaces
Calibration standards included for precise measurement adjustments
Quick and non-destructive testing of coatings such as paint, enamel, and rubber
Lightweight, portable design for easy on-site use
Powered by two standard 1.5V batteries for extended operation
Durable construction suitable for industrial and laboratory applications
1 x PCE-CT 27FN Coating Thickness Gauge
1 x Set of Calibration Standards
1 x Probe with 1 m / 3.28 ft Cable
1 x Set of Plastic Shims
1 x Carrying Case
2 x 1.5V Batteries
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-CT 27FN
