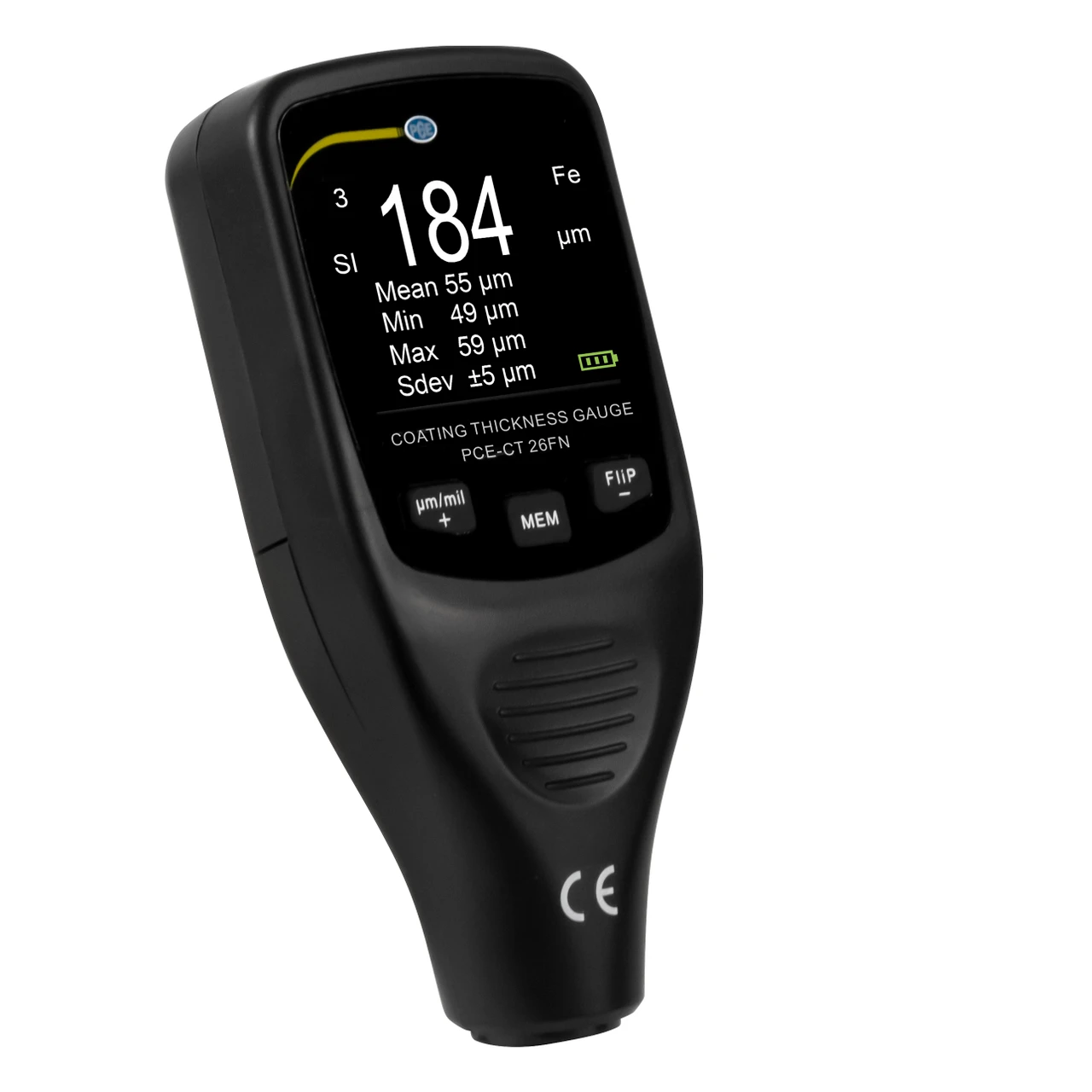

PCE Instruments Compact Coating Thickness Gauge (PCE-CT 26FN)
PCE Instruments Coating Thickness Gauge (PCE-CT 26FN) is a precision instrument designed for measuring non-magnetic coatings on ferrous and non-ferrous metals. With a large measuring range of up to 1250 μm, this device is ideal for automotive inspections, industrial coatings, and quality control applications.
The device features a rotatable OLED display for easy readability, a wear-resistant sensor, and a V-groove for measuring pipes. It enables single-handed operation and delivers highly accurate readings. The coating thickness gauge is compatible with various materials, including lacquer, plastics, enamel, and galvanized coatings.
Specifications and Dimensions
Measuring Range: 0 … 1250 μm (0 … 49.2 mils)
Resolution: 1 μm (0.039 mils)
Accuracy: ±(3% + 2 μm) or ±(3% + 0.079 mils)
Measurable Substrates: Ferrous (Fe) and Non-Ferrous (NFe)
Smallest Measuring Surface: 5 x 5 mm / 0.2 in x 0.2 in
Smallest Radius of Curvature: Convex 3 mm (0.1 in), Concave 50 mm (2 in)
Minimum Base Material Thickness: Fe: 0.5 mm / 0.02 in, NFe: 0.3 mm / 0.01 in
Display: OLED Display
Power Supply: 2 x AAA batteries (1.5V)
Operating Temperature: 0 … 50°C / 32 … 120°F
Dimensions: 100 x 52 x 29 mm / 4 x 2 x 1.1 in
Weight: Approx. 68 g / <1 lb (without batteries)
Key Features and Benefits
Measures non-magnetic coatings on ferrous and non-ferrous metals
Rotatable OLED display for easy reading from different angles
Wear-resistant sensor for long-lasting performance
V-groove for measuring coatings on pipes and curved surfaces
One-handed operation with fast and precise measurement capabilities
Calibration foils included for accurate adjustments
Compact and lightweight design for convenient portability
ISO calibration available upon request
1 x PCE-CT 26FN Coating Thickness Gauge
2 x AAA Batteries (1.5V)
1 x Set of Calibration Foils (5 Pieces)
1 x Fe Standard Block
1 x NFe Standard Block
1 x Transport Case
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-CT 26FN
