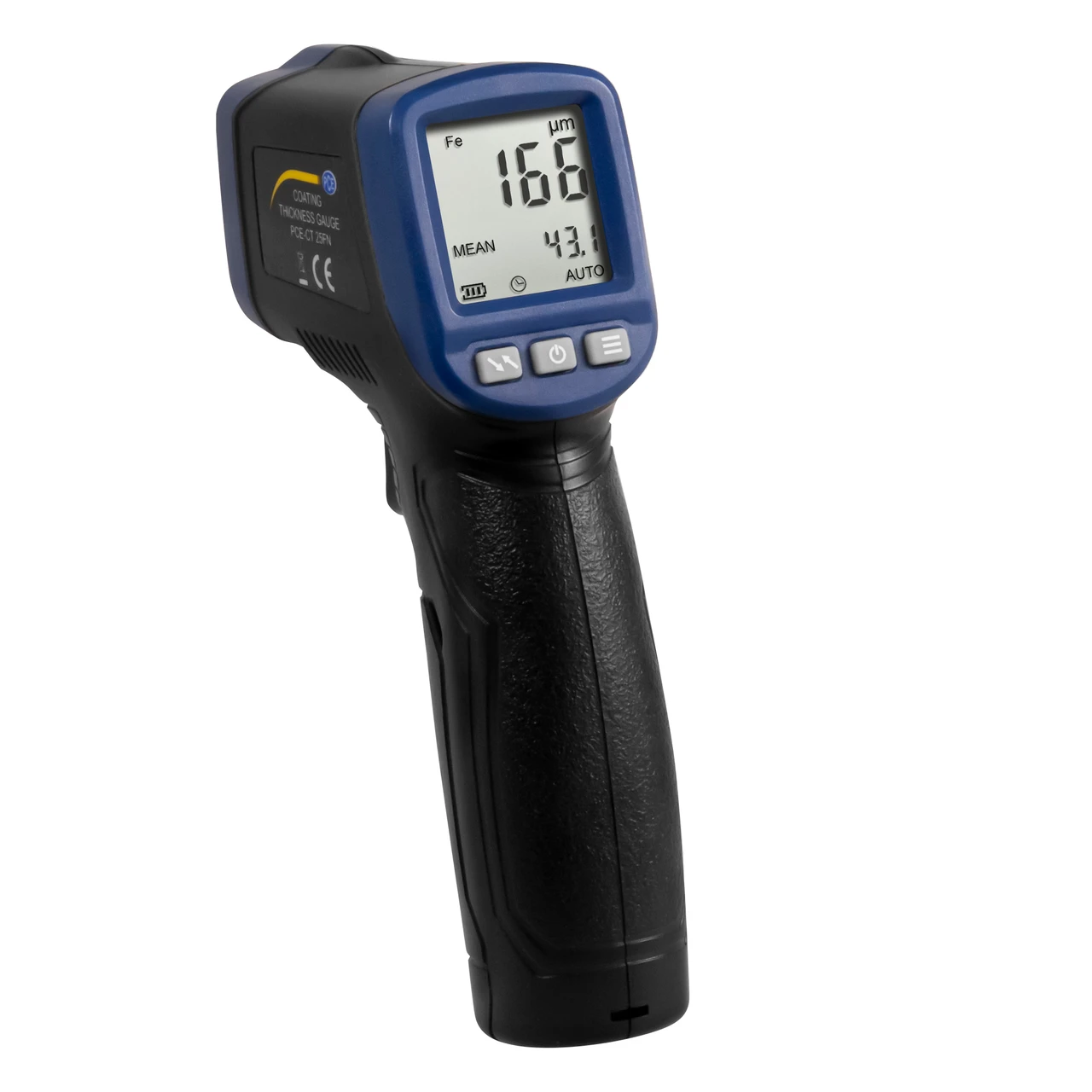

PCE Instruments Compact Coating Thickness Gauge (PCE-CT 25FN)
PCE Instruments Coating Thickness Gauge (PCE-CT 25FN) is a compact and user-friendly device designed for quick and precise layer thickness measurements on ferrous and non-ferrous metals. With a measuring range of up to 1500 µm, this thickness gauge is ideal for quality control, automotive refinishing, and industrial inspections.
The device features an intuitive interface with one-hand operation, a fast measuring frequency, and multiple selectable units. It allows users to determine the minimum, maximum, and mean values from measurement series.
Specifications and Dimensions
Measuring Range: 0…1500 µm
Accuracy: ±(3% + 1 µm)
Resolution: 0.1 µm (0…100 µm), 1 µm (>100 µm)
Measurable Substrates: Ferrous (Fe), Non-Ferrous (NFe)
Units: µm, mm, mils
Minimum Substrate Thickness: Fe: 0.3 mm, NFe: 0.05 mm
Smallest Measuring Area: Ø 20 mm
Smallest Curvature: Convex 5 mm, Concave 25 mm
Measuring Frequency: Max. 2 Hz
Power Supply: 9V block battery
Operating Temperature: -10…50 °C, 20…90% RH (non-condensing)
Storage Temperature: -10…60 °C, 20…90% RH (non-condensing)
Dimensions: 143 x 85 x 39 mm
Weight: Approx. 100 g
Key Features and Benefits
Compact and lightweight design for easy one-hand operation
Measures coating thickness on both ferrous and non-ferrous metals
Fast measuring frequency for efficient readings
Displays minimum, maximum, and mean values for detailed analysis
Calibration set included for precise measurement adjustments
Selectable measurement units: µm, mm, and mils
Automatic power-off function to extend battery life
1 x PCE-CT 25FN Coating Thickness Gauge
5 x Calibration Foil Reference
1 x Fe Zero Standard
1 x NFe Zero Standard
1 x 9V Block Battery
1 x Instruction Manual
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-CT 25FN
