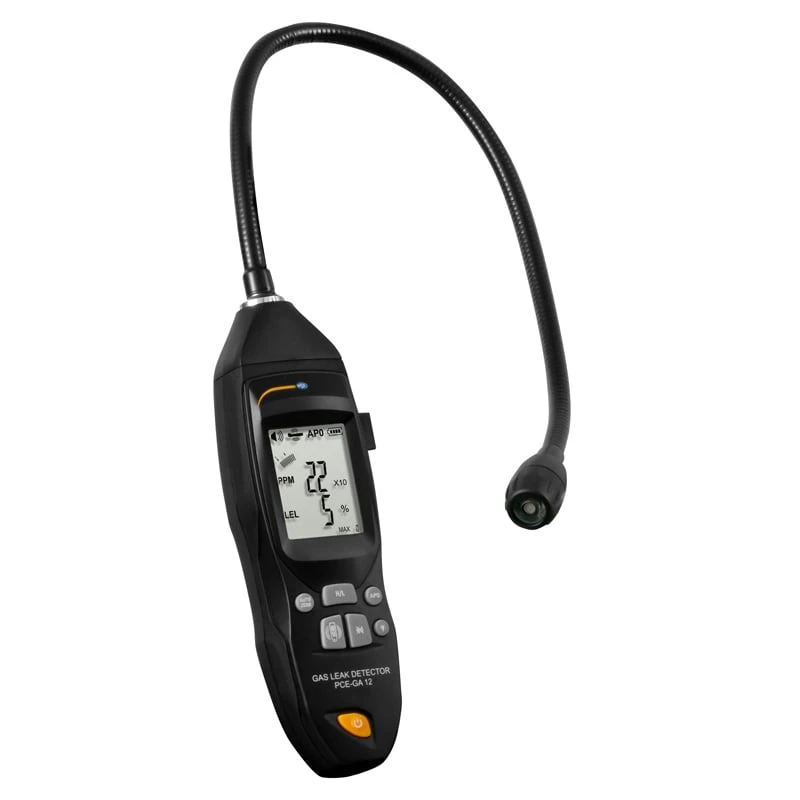

PCE Instruments Combustible Gas Leak Detector (PCE-GA 12)
PCE Instruments Combustible Gas Leak Detector (PCE-GA 12) is a highly reliable tool for detecting combustible gases in various environments. Designed for easy use, it features automatic calibration and a semi-rigid 400 mm probe to access hard-to-reach areas. The PCE-GA 12 gas detector is equipped with an 85 dB audible alarm and vibration alert to notify users of gas leaks.
It operates on a rechargeable lithium-ion battery, ensuring mobility, and can also be powered by an AC adapter. Its high sensitivity enables rapid detection of gases with a response time of less than two seconds.
Specifications and Dimensions
Measuring Range: 0 … 1000 ppm (low concentration for methane), 0 … 10000 ppm (high concentration)
Acoustic Alarm: 85 dB volume
Sensitivity: < 10 ppm (with methane)
Measuring Interval: < 2 seconds
Display: LCD with bar graph for gas concentration
Calibration: Automatic
Warming Up Time: 40 seconds
Battery: Polymer Li-ion 18500, 3.7V
Primary: 100 … 240V, 50/60 Hz, 0.2 A
Secondary: 5V, 1 A
Automatic Shutdown: Turns off when battery is too low or after 10 minutes of inactivity
Sensor Durability: Approx. 5 years (sensor is replaceable)
Probe Length: Semi-rigid 400 mm / 16 in
Weight: Approx. 430 g / < 1 lb
Key Features and Benefits
Detects combustible gases efficiently with fast response time
85 dB audible alarm and vibration alert for immediate notification
Automatic calibration for ease of use
Rechargeable battery for portable operation
Long sensor lifespan of approximately 5 years
Flexible 400 mm probe for hard-to-reach areas
LCD display with bar graph for real-time gas concentration
AC power adapter included for continuous use
1 x Gas Detector PCE-GA 12
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-GA 12
