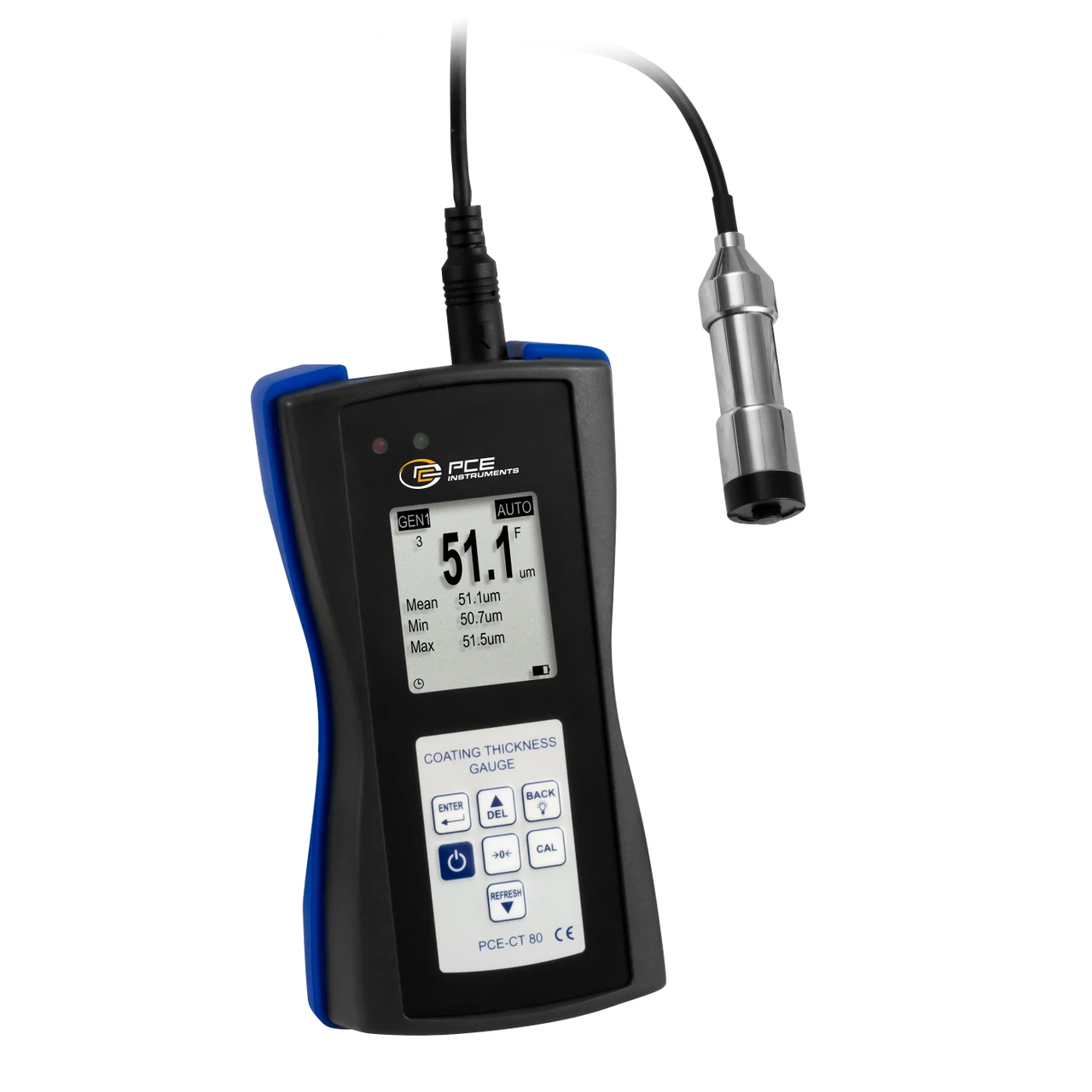

PCE Instruments Coating Thickness Meter (PCE-CT 80-FN2)
PCE Instruments Coating Thickness Meter (PCE-CT 80-FN2) is a precision tool designed for measuring non-magnetic coatings on ferrous and non-ferrous metals. Its external sensor allows for highly accurate readings, even in hard-to-reach areas.
Featuring a USB interface and integrated memory storage, this device supports up to 2000 readings for efficient data analysis. With user-friendly navigation and multipoint calibration, it is ideal for quality control, industrial material testing, and automotive paint inspection.
Specifications and Dimensions
Measuring Range:
Ferrous: 0 … 2000 µm
Non-Ferrous: 0 … 2000 µm
Accuracy: ±(2% of reading + 1 µm)
Measurable Materials: Ferrous and Non-Ferrous Metals
Minimum Radius of Curvature:
Convex: 5 mm / 0.19"
Concave: 25 mm / 0.98"
Minimum Measuring Surface: Ø17 mm / 0.67"
Minimum Substrate Thickness:
Magnetic: 0.2 mm / 0.008"
Non-Magnetic: 0.05 mm / 0.002"
Automatic material detection (Fe + NFe)
Magnetic mode (Fe)
Eddy current mode (NFe)
Multipoint calibration (1 … 4 points per group)
Zero-point calibration
Units: µm, mm, mils
Data Transfer: USB 2.0
DIR Mode: Volatile measuring group
GEN Mode: Four groups with automatic storage, max. 2000 readings
Statistical Functions: Number of measured values, mean, minimum, maximum, standard deviation
Alarm: Display when adjustable upper and lower limits are exceeded
Power Supply: 3 x 1.5 V AAA batteries
Display: 128 x 128 px LCD
Operating Conditions: 0 … +50 °C / 32 … 122 °F; 20 … 90 % RH non-condensing
Storage Conditions: -10 … +60 °C / 14 … 140 °F; 20 … 90 % RH non-condensing
Dimensions: 143 x 71 x 37 mm / 5.6 x 2.8 x 1.5" (L x W x H)
Weight: Approx. 271 g / 9.5 oz (with sensor and batteries)
Key Features and Benefits
Non-destructive measurement of coatings on ferrous and non-ferrous metals
External sensor for accessing difficult measurement points
USB interface for efficient data transfer
Integrated data storage for up to 2000 readings
Ergonomic design with user-friendly menu navigation
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-CT 80-FN2
