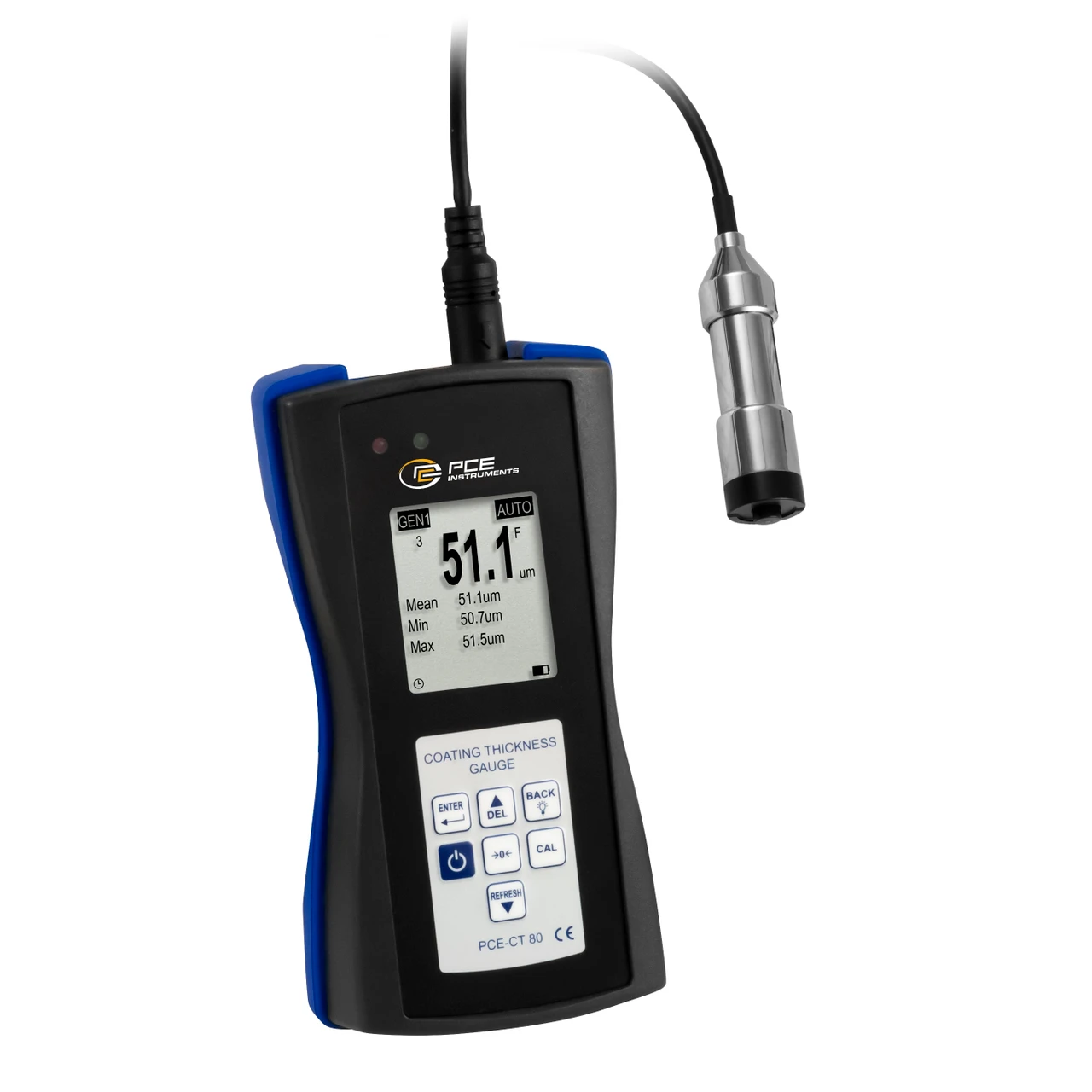

PCE Instruments Coating Thickness Meter (PCE-CT 80-FN1D5)
PCE Instruments Thickness Meter (PCE-CT 80-FN1D5) is a precision instrument for measuring coating thickness on ferrous and non-ferrous metals. It features an external sensor, allowing measurements in hard-to-reach areas while maintaining high accuracy.
This thickness meter is equipped with a USB interface for data transfer and an integrated memory function capable of storing up to 2000 readings. With its user-friendly design and easy menu navigation, it is ideal for industrial material testing, automotive paint inspection, and quality control applications.
Specifications and Dimensions
Measuring Range:
Ferrous: 0 … 1500 µm
Non-Ferrous: 0 … 1500 µm
Accuracy: ±(2% of reading + 1 µm)
0.1 µm (<100 µm)
Measurable Materials: Ferrous and Non-Ferrous Metals
Minimum Radius of Curvature:
Convex: 5 mm / 0.19 in
Concave: 25 mm / 0.98 in
Minimum Measuring Surface: Ø17 mm / 0.67 in
Minimum Substrate Thickness:
Magnetic: 0.2 mm / 0.008 in
Non-Magnetic: 0.05 mm / 0.002 in
Automatic material detection (Fe + NFe)
Magnetic mode (Fe)
Eddy current mode (NFe)
Multipoint calibration (1 – 4 points per group)
Zero-point calibration
Units: µm, mm, mils
Data Transfer: USB 2.0
DIR Mode: Volatile measuring group
GEN Mode: Four groups with automatic storage, max. 2000 readings
Statistical Functions: Mean, min, max, standard deviation
Alarm: Adjustable upper and lower limits with visual alerts
Power Supply: 3 x 1.5V AAA batteries
Display: 128 x 128 px LCD
Operating Temperature: 0 … 50°C / 32 … 122°F
Storage Temperature: -10 … 60°C / 14 … 140°F
Dimensions: 143 x 71 x 37 mm / 5.6 x 2.8 x 1.5 in
Weight: Approx. 271 g / 9.5 oz (with batteries)
Key Features and Benefits
Non-destructive coating thickness measurement for ferrous and non-ferrous metals
External sensor enables measurements in difficult-to-reach areas
USB 2.0 data transfer for quick and efficient documentation
Multipoint and zero-point calibration for enhanced measurement precision
Automatic material detection for seamless operation
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-CT 80-FN1D5
