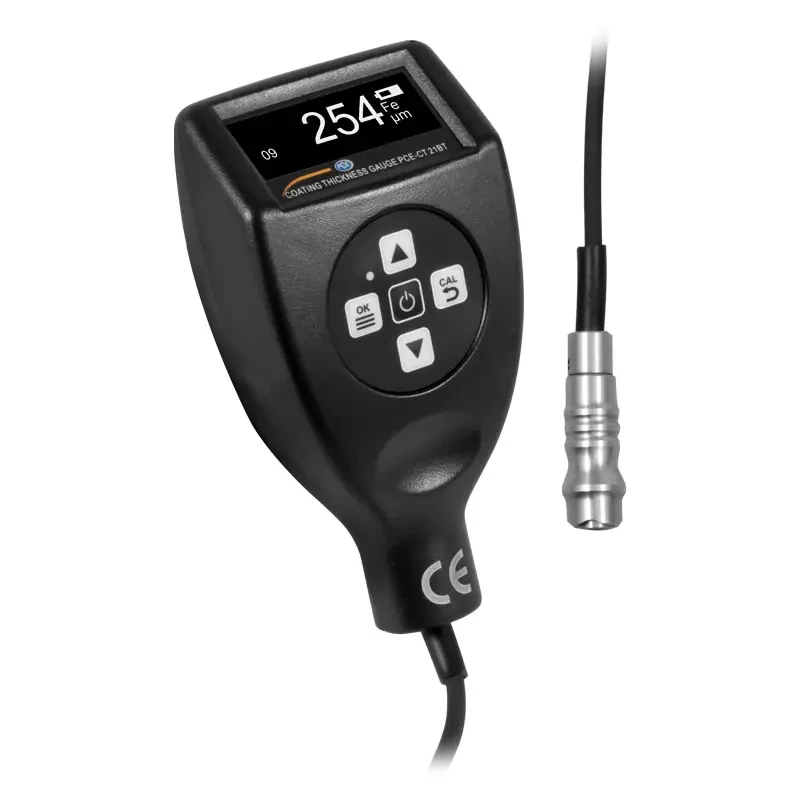

PCE Instruments Coating Thickness Meter (PCE-CT 21BT, PCE-CT 22BT)
PCE Instruments Coating Thickness Meter is a high-precision device designed for measuring layer thickness on metallic surfaces. With a wide measuring range of 1500 µm, this device is ideal for industrial applications, including paint shops, quality control, and incoming goods inspections. The built-in Bluetooth interface allows seamless data transfer to iOS and Android devices, where users can export measurements as CSV, PDF, or TXT files.
Equipped with a micro USB interface, the coating thickness meter enables direct data transfer to a PC for further analysis. It also features an integrated power supply option via USB, allowing operation without batteries for extended measurement sessions. The device supports a five-point calibration system for enhanced accuracy and includes a data storage capacity of up to 600 measurements, ensuring reliable tracking of readings.
Specifications and Dimensions
Measuring Range: 0 – 1500 µm
Resolution: 0.1 µm (0 – 99.9 µm) / 1 µm (100 – 1500 µm)
Accuracy: ± (1 µm + 2% of layer thickness)
Smallest Curvature: Convex 5 mm, Concave 5 mm
Smallest Measuring Area: 10 x 10 mm
Minimum Substrate Thickness: 0.4 mm
Interfaces: Bluetooth, Micro USB
Memory: 10 groups with 60 measurements each
Power Supply: 2 x 1.5V AA batteries, 5V USB interface
Environmental Conditions: -10 to 50°C / 10 to 85% RH
Dimensions: 126 x 69 x 35 mm
Weight: Approx. 97 g (without batteries)
Key Features and Benefits
Measures layer thickness on metallic surfaces with high accuracy
Bluetooth connectivity for wireless data transfer
Micro USB interface for PC connection and power supply
Five-point calibration system for precise measurements
Backlit display for easy reading in various environments
Data storage capacity of up to 600 measurements
Adjustable alarm function for predefined measurement thresholds
Includes calibration foils and zero standards for verification
1 x PCE Instruments Coating Thickness Meter
5 x Calibration Foil Reference
1 x Fe Zero Standard
1 x Transport Loop
2 x 1.5V AA Batteries
1 x Carrying Case
1 x Instruction Manual
Product identification
- Brand: PCE INSTRUMENTS
