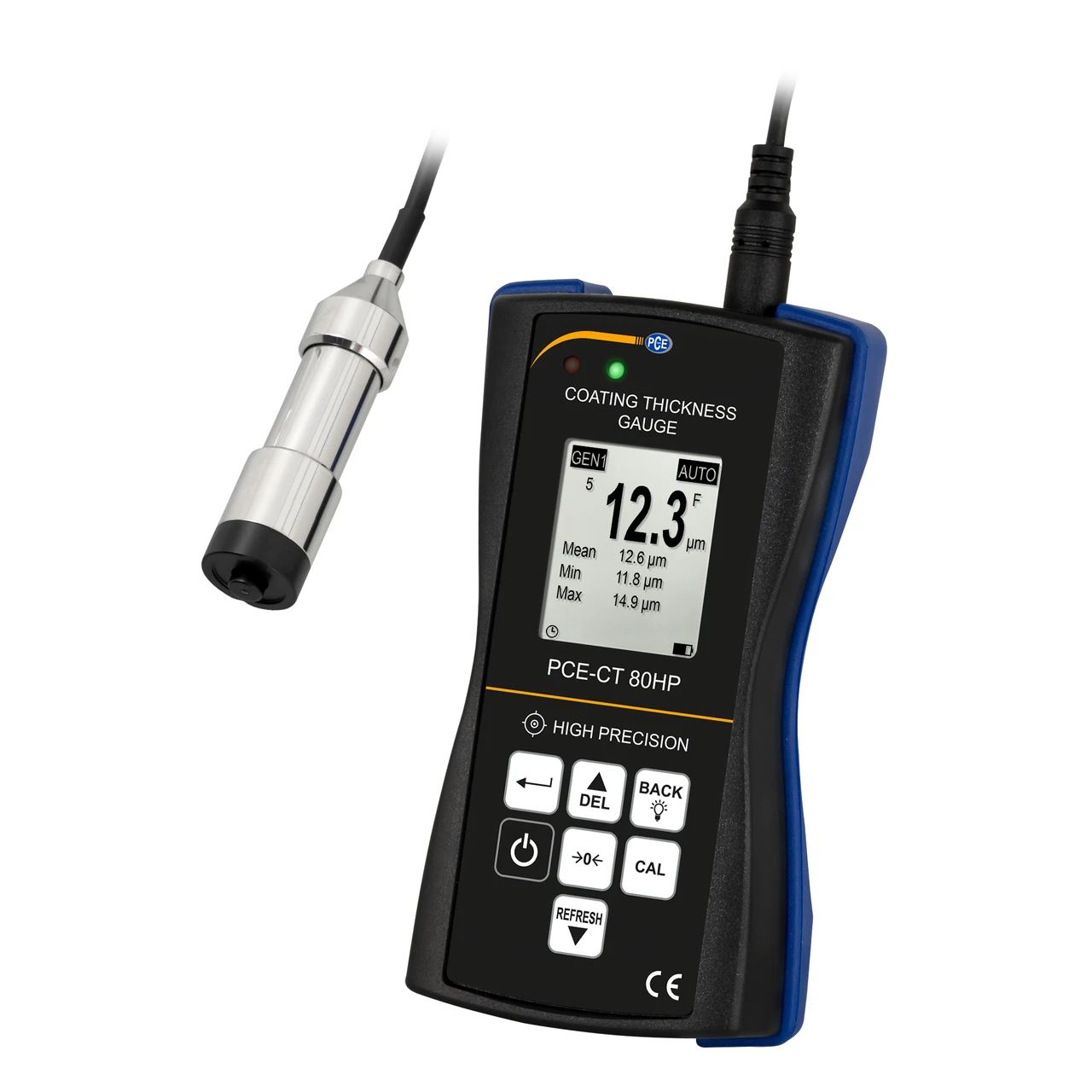

PCE Instruments Coating Thickness Gauge (PCE-CT 80HP-FN2)
PCE Instruments Coating Thickness Gauge (PCE-CT 80HP-FN2) is a precision measuring tool for coatings such as paint, plastic, and varnish on ferrous and non-ferrous metals. The integrated V-groove sensor ensures accurate readings on both convex and concave surfaces, making it ideal for quality control and industrial applications.
This device features adjustable alarm limits, a rugged rubberized housing for durability, and a built-in memory capable of storing up to 2,000 readings. Data can be seamlessly transferred via USB to a computer for further analysis using the included software.
Specifications and Dimensions
Measuring Range:
Ferrous (Fe): 0 … 2000 µm
Non-Ferrous (NFe): 0 … 2000 µm
Accuracy after Foil Calibration: ±(1.0% of measured value + 1 µm)
Accuracy after Zeroing: ±(1.5% of measured value + 1 µm)
Probe Diameter: Ø17 mm / 0.67"
0.1 µm (below 100 µm)
1 µm (above 100 µm)
Measurable Materials:
Fe substrates: steel and iron
NFe substrates: aluminum and copper
Minimum Radius of Curvature:
Convex: 5 mm / 0.19"
Concave: 25 mm / 0.98"
Minimum Measuring Surface: Ø17 mm / 0.67"
Minimum Layer Thickness:
Magnetic Materials: 0.2 mm / 0.007"
Non-Magnetic Materials: 0.05 mm / 0.002"
Automatic Material Detection (Fe + NFe)
Magnet Mode (Fe)
Eddy Current Mode (NFe)
Multi-Point Calibration (1 … 4 points per group)
Zero Calibration
Units: µm, mm, mils
Data Transfer: USB 2.0
DIR Mode: Volatile Measurement Group
GEN Mode: Four Measurement Groups with Automatic Storage, up to 2,000 readings
Statistical Functions: Number of Measurements, Mean, Minimum, Maximum, Standard Deviation
Alarm: Visual Alert for Adjustable Upper and Lower Limits
Automatic Shutdown: After 3 minutes of inactivity
Power Supply: 3 x 1.5 V AAA batteries
Display: 128 x 128 px LCD
Additional Indicators: Battery Status, Error Detection
Operating Conditions: 0 … +50 °C / 32 … 122 °F; 20 … 90% RH non-condensing
Storage Conditions: -10 … +60 °C / 14 … 140 °F; 20 … 90% RH non-condensing
Dimensions: 143 x 71 x 37 mm / 5.6 x 2.8 x 1.4" (L x W x H)
Weight (with sensor and batteries): 271 g / 9.5 oz
Key Features and Benefits
Non-destructive measurement of coatings on ferrous and non-ferrous metals
Data memory for up to 2,000 readings, transferable via USB for analysis
Rugged rubberized housing ensures durability in industrial settings
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-CT 80HP-FN2
