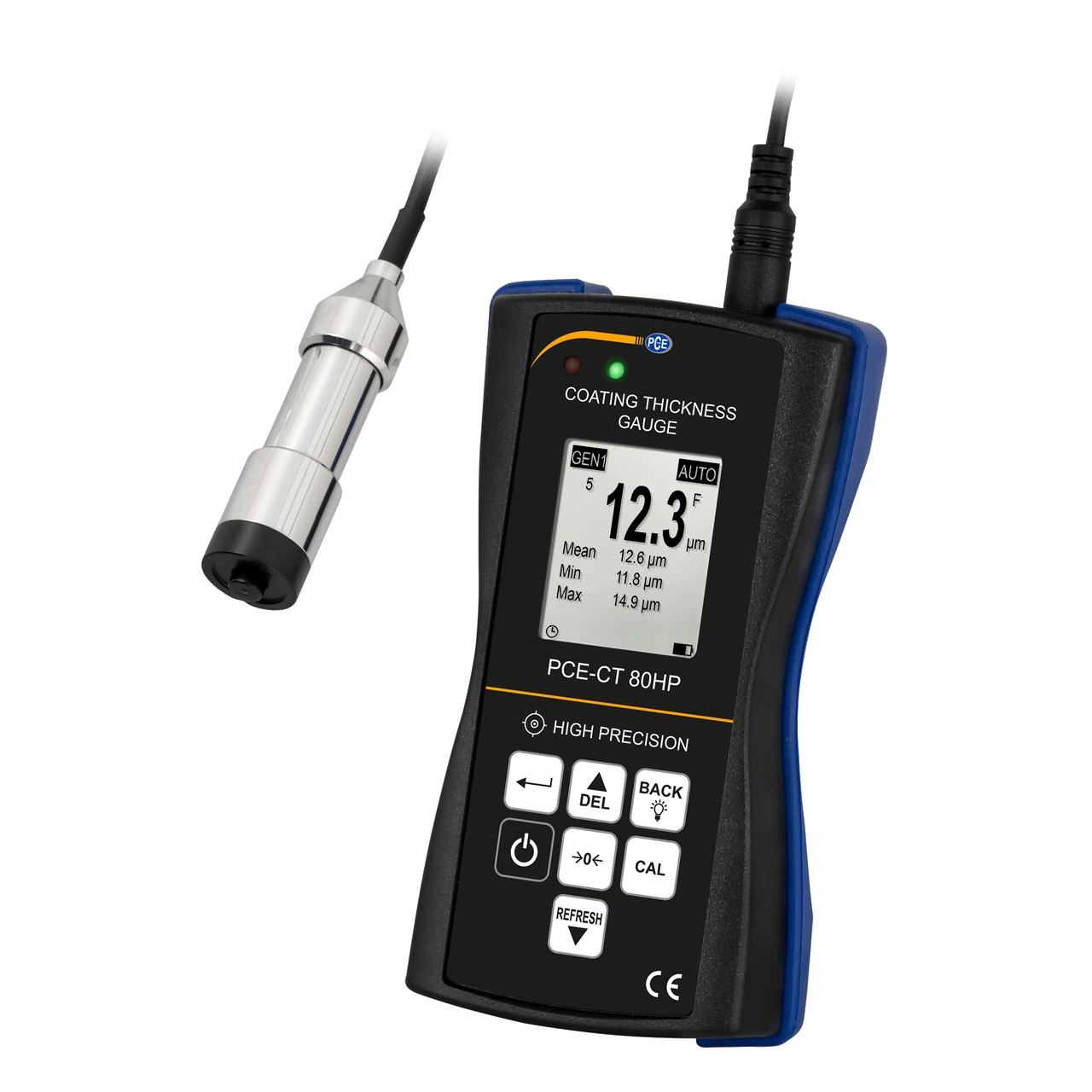

PCE Instruments Coating Thickness Gauge (PCE-CT 80HP-FN0D5)
PCE Instruments Coating Thickness Gauge (PCE-CT 80HP-FN0D5) is designed for non-destructive measurement of coatings such as paint and plastics on ferrous and non-ferrous metals. Its V-groove sensor allows for accurate measurements on both convex and concave surfaces.
Equipped with adjustable alarm limits and a robust rubberized housing, this gauge ensures durability and precision. It features data storage for up to 2,000 readings, which can be transferred to a computer for analysis using the included software.
Specifications and Dimensions
Measuring Range:
Ferrous (Fe): 0 … 500 µm
Non-Ferrous (NFe): 0 … 500 µm
Accuracy after Foil Calibration: ±(1.0% of measured value + 0.5 µm)
Accuracy after Zeroing: ±(1.0% of measured value + 0.7 µm)
Probe Diameter: Ø17 mm / 0.67"
0.1 µm (<100 µm)
Measurable Materials:
Fe substrates: steel and iron
NFe substrates: aluminum and copper
Minimum Radius of Curvature:
Convex: 5 mm / 0.19"
Concave: 25 mm / 0.98"
Minimum Measuring Surface: Ø17 mm / 0.67"
Minimum Layer Thickness:
Magnetic Materials: 0.2 mm / 0.007"
Non-Magnetic Materials: 0.05 mm / 0.002"
Automatic Material Detection (Fe + NFe)
Magnet Mode (Fe)
Eddy Current Mode (NFe)
Multi-Point Calibration (1 … 4 points per group)
Zero Calibration
Units: µm, mm, mils
Data Transfer: USB 2.0
DIR Mode: Volatile Measurement Group
GEN Mode: Four Measurement Groups with Automatic Storage, up to 2,000 readings
Automatic Shutdown: After 3 minutes of inactivity
Power Supply: 3 x 1.5 V AAA batteries
Display: 128 x 128 px LCD
Additional Indicators: Battery Status, Error Detection
Operating Conditions: 0 … +50 °C / 32 … 122 °F; 20 … 90% RH non-condensing
Storage Conditions: -10 … +60 °C / 14 … 140 °F; 20 … 90% RH non-condensing
Key Features and Benefits
Non-destructive measurement of coatings on ferrous and non-ferrous metals
V-groove sensor for accurate readings on curved surfaces
High accuracy with adjustable alarm limits for quality control
Data memory for up to 2,000 readings, transferable via USB for analysis
Robust, rubberized housing for enhanced durability in various environments
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-CT 80HP-FN0D5
