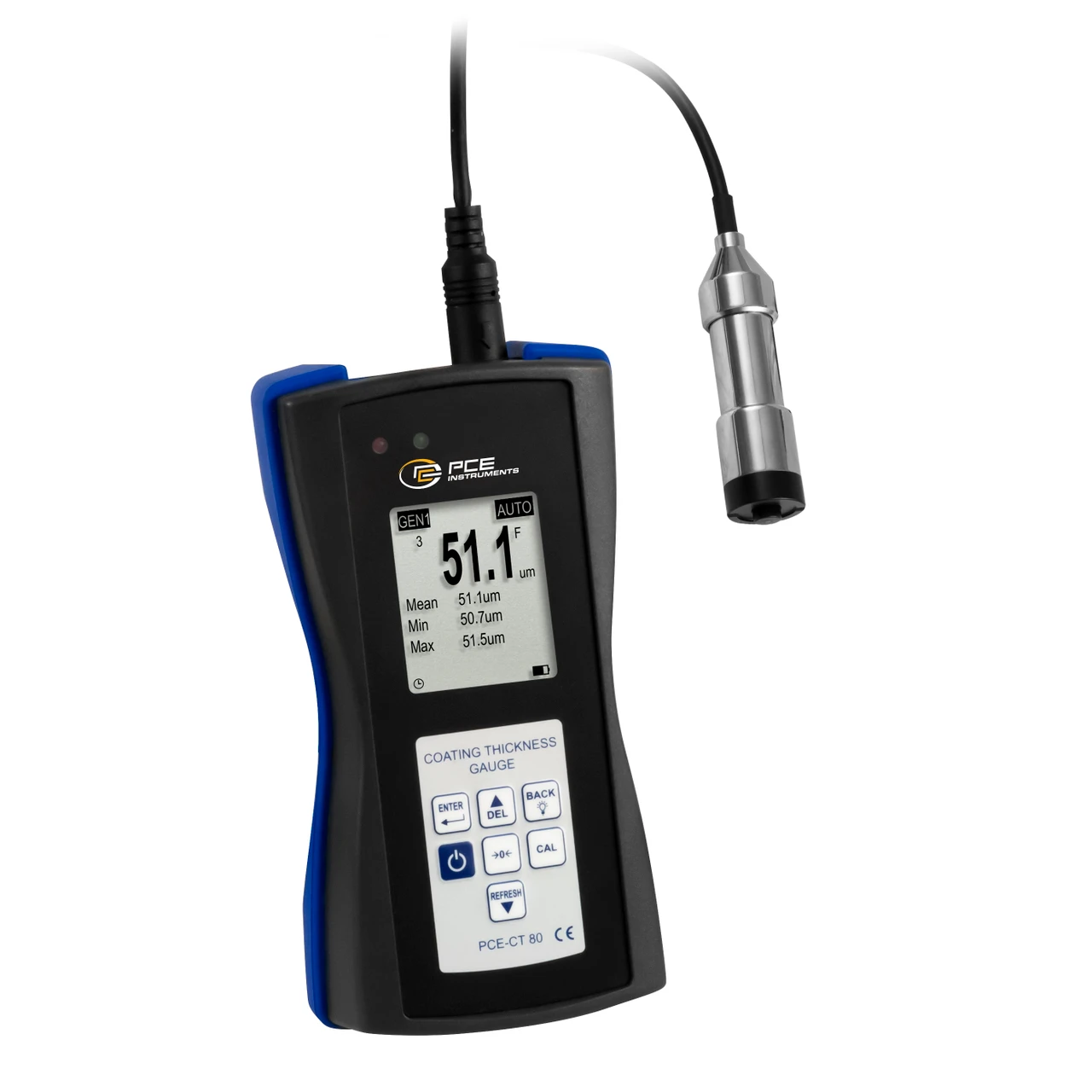

PCE Instruments Coating Thickness Gauge (PCE-CT 80-FN3)
PCE Instruments Coating Thickness Gauge (PCE-CT 80-FN3) is designed for non-destructive measurement of coatings such as varnishes, paints, and plastics on steel, iron, and non-ferrous metals. Its external sensor allows for precise measurements in hard-to-reach areas.
This device features a USB interface for efficient data transfer and an integrated memory capable of storing up to 2000 readings. Ideal for quality control in production, workshops, and industrial inspections, it supports multipoint and zero-point calibration to ensure measurement accuracy.
Specifications and Dimensions
Measuring Range:
Ferrous: 0 … 3000 µm
Non-Ferrous: 0 … 3000 µm
Accuracy: ±(2% of reading + 1 µm)
0.1 µm (<100 µm)
Measurable Materials: Steel, iron, aluminum, copper, brass, stainless steel
Minimum Radius of Curvature:
Convex: 5 mm / 0.19"
Concave: 25 mm / 0.98"
Minimum Measuring Surface: Ø17 mm / 0.67"
Minimum Substrate Thickness:
Magnetic: 0.2 mm / 0.008"
Non-Magnetic: 0.05 mm / 0.002"
Automatic material detection (Fe + NFe)
Magnetic mode (Fe)
Eddy current mode (NFe)
Multipoint calibration (1 … 4 points per group)
Zero-point calibration
Units: µm, mm, mils
Data Transfer: USB 2.0
DIR Mode: Volatile measuring group
GEN Mode: Four groups with automatic storage, max. 2000 readings
Statistical Functions: Number of measured values, mean, minimum, maximum, standard deviation
Alarm: Display when adjustable upper and lower alarm limits are exceeded
Power Supply: 3 x 1.5 V AAA batteries
Display: 128 x 128 px LCD
Operating Conditions: 0 … +50 °C / 32 … 122 °F; 20 … 90 % RH non-condensing
Storage Conditions: -10 … +60 °C / 14 … 140 °F; 20 … 90 % RH non-condensing
Dimensions: 143 x 71 x 37 mm / 5.6 x 2.8 x 1.5" (L x W x H)
Weight: Approx. 271 g / 9.5 oz (with sensor and batteries)
Key Features and Benefits
Non-destructive measurement of coatings on ferrous and non-ferrous metals
External sensor for accessing hard-to-reach areas
USB interface for efficient data transfer
Integrated memory stores up to 2000 readings
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-CT 80-FN3
