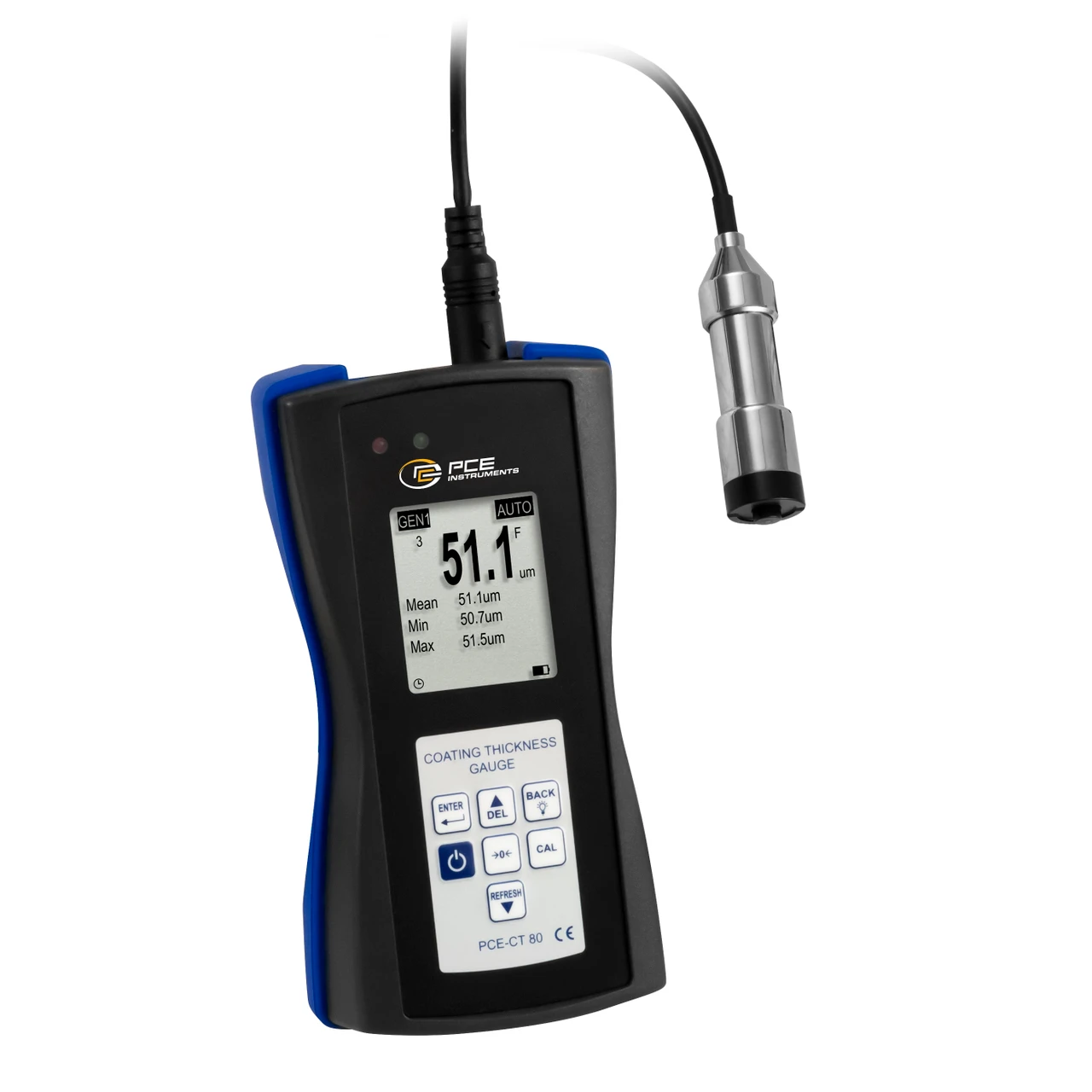

PCE Instruments Coating Thickness Gauge (PCE-CT 80-FN2D5)
PCE Instruments Coating Thickness Gauge (PCE-CT 80-FN2D5) is a measuring device for non-destructive coating measurement on steel, iron, and non-ferrous metals. Its external sensor allows precise readings in hard-to-reach areas.
With a USB interface for easy data transfer and an integrated memory that stores up to 2000 readings, this device is ideal for quality control, industrial inspections, and automotive refinishing. It supports multipoint and zero-point calibration for accurate measurements.
Specifications and Dimensions
Measuring Range:
Ferrous: 0 … 2500 µm
Non-Ferrous: 0 … 2500 µm
Accuracy: ±(2% of reading + 1 µm)
0.1 µm (below 100 µm)
1 µm (above 100 µm)
Measurable Materials: Steel, iron, aluminum, copper, brass, stainless steel
Minimum Radius of Curvature:
Convex: 5 mm / 0.19"
Concave: 25 mm / 0.98"
Minimum Measuring Surface: Ø17 mm / 0.67"
Minimum Substrate Thickness:
Magnetic: 0.2 mm / 0.008"
Non-Magnetic: 0.05 mm / 0.002"
Automatic material detection (Fe + NFe)
Magnetic mode (Fe)
Eddy current mode (NFe)
Multipoint calibration (1 … 4 points per group)
Zero-point calibration
Units: µm, mm, mils
Data Transfer: USB 2.0
DIR Mode: Volatile measuring group
GEN Mode: Four groups with automatic storage, max. 2000 readings
Statistical Functions: Number of measured values, mean, minimum, maximum, standard deviation
Alarm: Display when adjustable upper and lower limits are exceeded
Power Supply: 3 x 1.5 V AAA batteries
Display: 128 x 128 px LCD
Operating Conditions: 0 … +50 °C / 32 … 122 °F; 20 … 90 % RH non-condensing
Storage Conditions: -10 … +60 °C / 14 … 140 °F; 20 … 90 % RH non-condensing
Dimensions: 143 x 71 x 37 mm / 5.6 x 2.8 x 1.5" (L x W x H)
Weight: Approx. 271 g / 9.5 oz (with sensor and batteries)
Key Features and Benefits
Non-destructive measurement of coatings on ferrous and non-ferrous metals
External sensor for hard-to-reach areas
USB interface for easy data transfer
Integrated memory for up to 2000 readings
Multipoint and zero-point calibration
Automatic material detection
Adjustable alarm limits with visual alerts
1 x Coating Thickness Gauge PCE-CT 80-FN2D5
3 x AAA batteries
1 x Instruction manual
1 x Carrying case
1 x Set of standard foils
1 x Calibration plates (Fe and NFe)
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-CT 80-FN2D5
