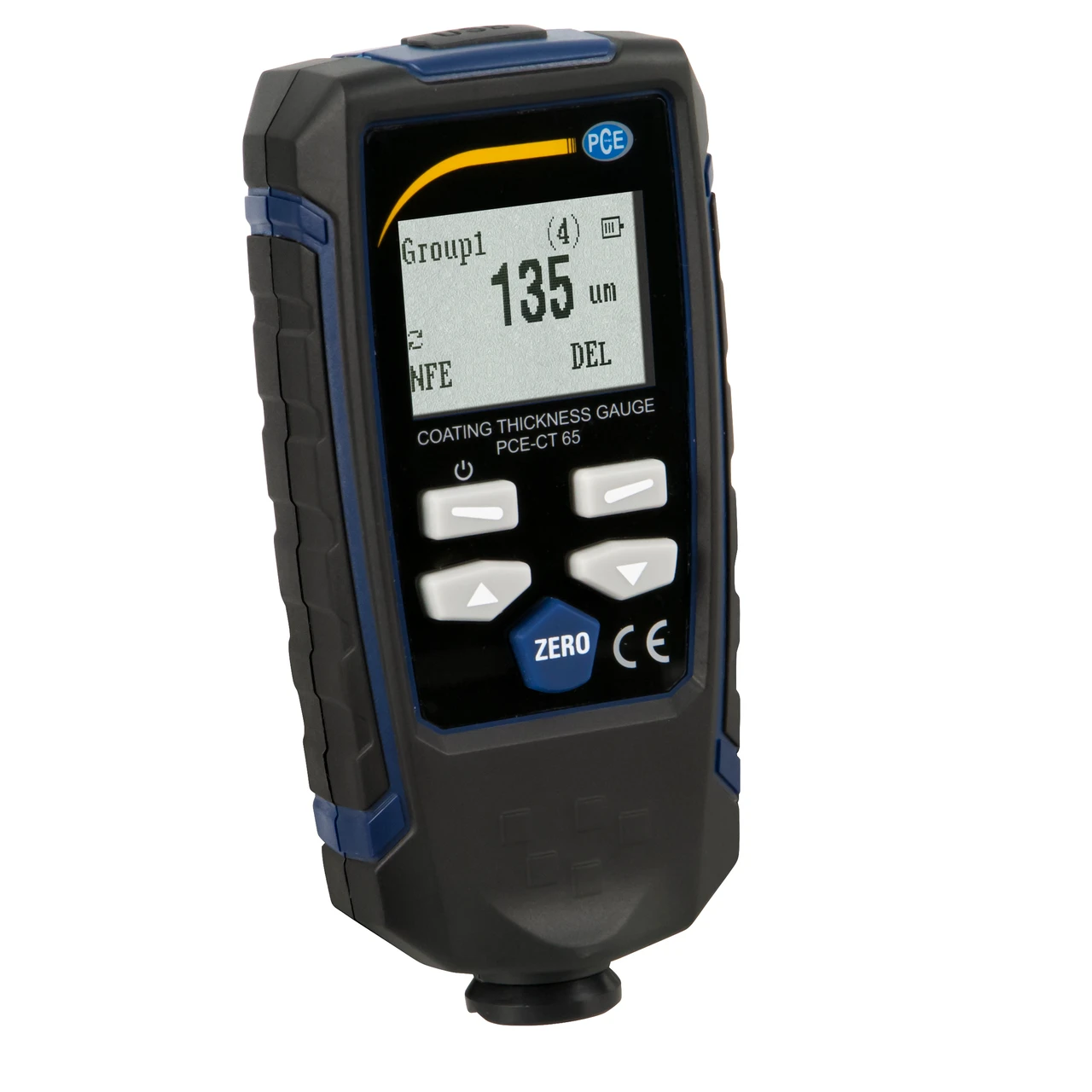

PCE Instruments Coating Thickness Gauge (PCE-CT 65)
PCE Instruments Coating Thickness Gauge (PCE-CT 65) is a non-destructive measuring device designed for fast and accurate coating thickness measurement on ferrous and non-ferrous metals. It utilizes magnetic induction for ferrous materials and eddy current testing for non-ferrous metals, making it ideal for automotive paint inspection, coated material testing, and industrial quality control applications.
This coating thickness gauge includes a USB interface for data transfer and features a memory function that stores up to 1500 measurements.
Specifications and Dimensions
Measurement Method: Magnetic Induction (Fe) & Eddy Current (NFe)
Measuring Range (Fe): 0 … 1350 µm / 0 … 53.1 mils
Measuring Range (NFe): 0 … 1350 µm / 0 … 53.1 mils
0 … 1000 µm: ±(2.5% ±2 µm)
1000 … 1350 µm: ±3.5%
0 … 100 µm: 0.1 µm
100 … 1000 µm: 1 µm
> 1000 µm: 0.01 mm
Smallest Surface Area:
Ferrous: Ø 7 mm / 0.3 in
Non-Ferrous: Ø 5 mm / 0.2 in
Minimum Curvature Radius:
Ferrous: Convex 1.5 mm / 0.05 in
Non-Ferrous: Convex 3 mm / 0.1 in
Minimum Substrate Thickness:
Ferrous: 0.5 mm / 0.02 in
Non-Ferrous: 0.3 mm / 0.01 in
Measurement Units: µm, mils
Memory: 30 groups with 50 measurements each (1500 total)
Functions: Alarm, backlit display, auto shutdown, calibration
Data Interface: USB
Power Supply: 2 x 1.5V AAA batteries
Operating Conditions: 0 … 40°C / 32 … 104°F, 20% … 90% RH
Dimensions: 126 x 65 x 27 mm / 5.0 x 2.6 x 1.1 in
Weight: 120 g / 0.26 lbs (with batteries)
Key Features and Benefits
Non-destructive testing for coatings on ferrous and non-ferrous metals
Integrated sensors for easy, one-handed operation
USB data transfer and downloadable PC software for advanced analysis
Memory function stores up to 1500 measurement values
1 x PCE-CT 65 Coating Thickness Gauge
2 x 1.5V AAA Batteries
5 x Calibration Shims
2 x Calibration Blocks (Aluminum and Iron)
1 x Carrying Case
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-CT 65
