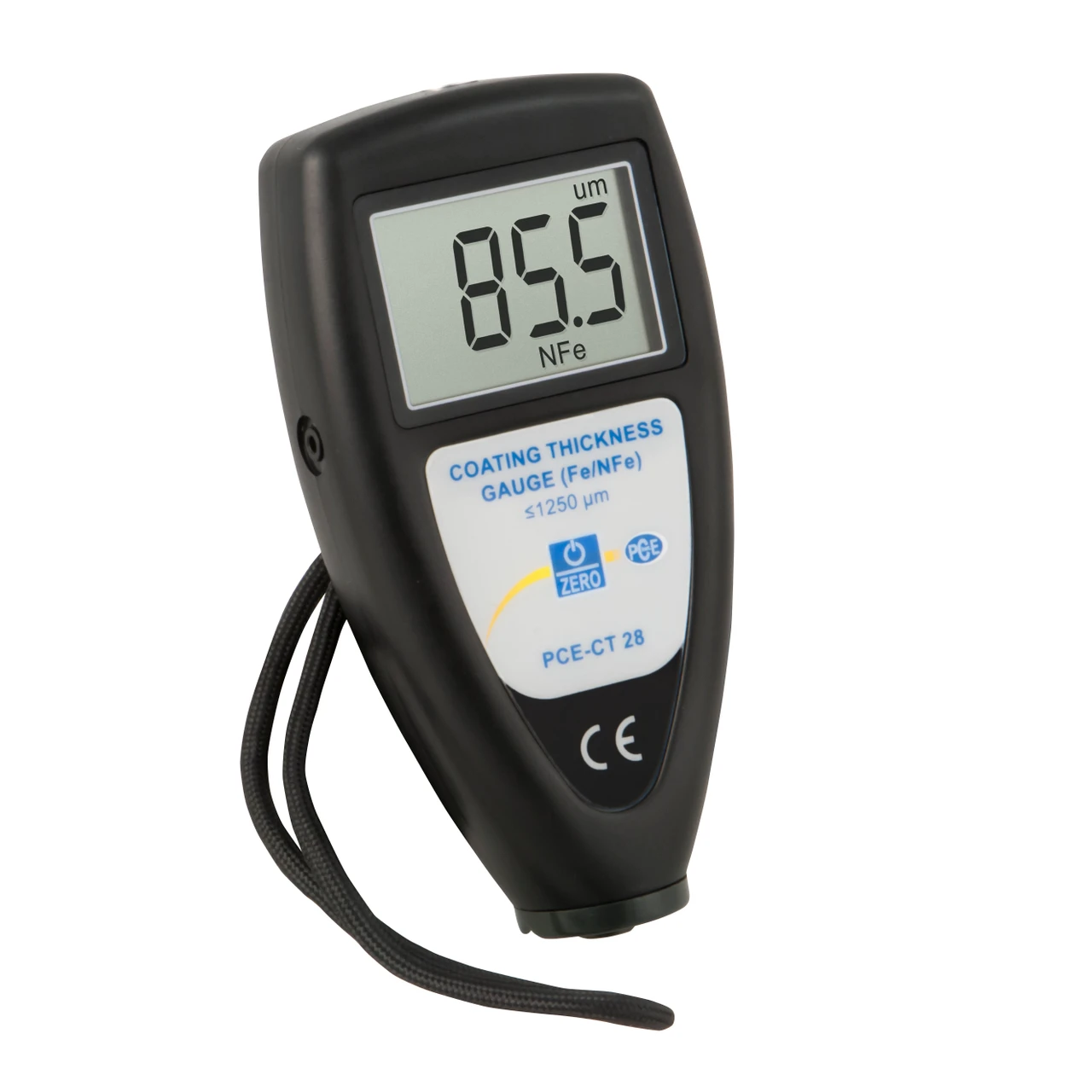

PCE Instruments Coating Thickness Gauge (PCE-CT 28)
Designed for user-friendly operation, the device features an integrated sensor, a large LCD display, and a V-slot for measuring curved surfaces.
Specifications and Dimensions
Measurement Range: 0 … 1250 µm / 49.2 mils
Resolution: 0.1 µm / 0.004 mils (0.0 to 99.9 µm), 1 µm / 0.04 mils (above 99.9 µm)
Accuracy: ± 2% or 2.5 µm / 0.10 mils
Minimum Measurable Surface: 6 mm x 6 mm / 0.2 in x 0.2 in
Minimum Radial Curve: Convex 5 mm / 0.2 in, Concave 60 mm / 2.4 in
Minimum Substrate Thickness: Ferrous 0.3 mm / 0.01 in, Non-Ferrous 0.1 mm / 0.004 in
Display: LCD with 4 mm x 10 mm (0.2 in x 0.4 in) high digits
Operating Temperature: 0 … 50°C / 32 … 122°F
Power Supply: 4 batteries
Dimensions: 126 x 65 x 27 mm / 5.0 x 2.6 x 1.1 in
Weight: 120 g / 0.26 lbs (including batteries)
Key Features and Benefits
Measures coatings on both ferrous and non-ferrous metals
Non-destructive testing with instant results
Integrated V-slot simplifies measurements on curved surfaces
Elastic-lined measuring head prevents surface damage
1 x PCE-CT 28 Coating Thickness Gauge with Integrated F/N Sensor
1 x Carrying Case
1 x Set of Calibration Standards
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-CT 28
