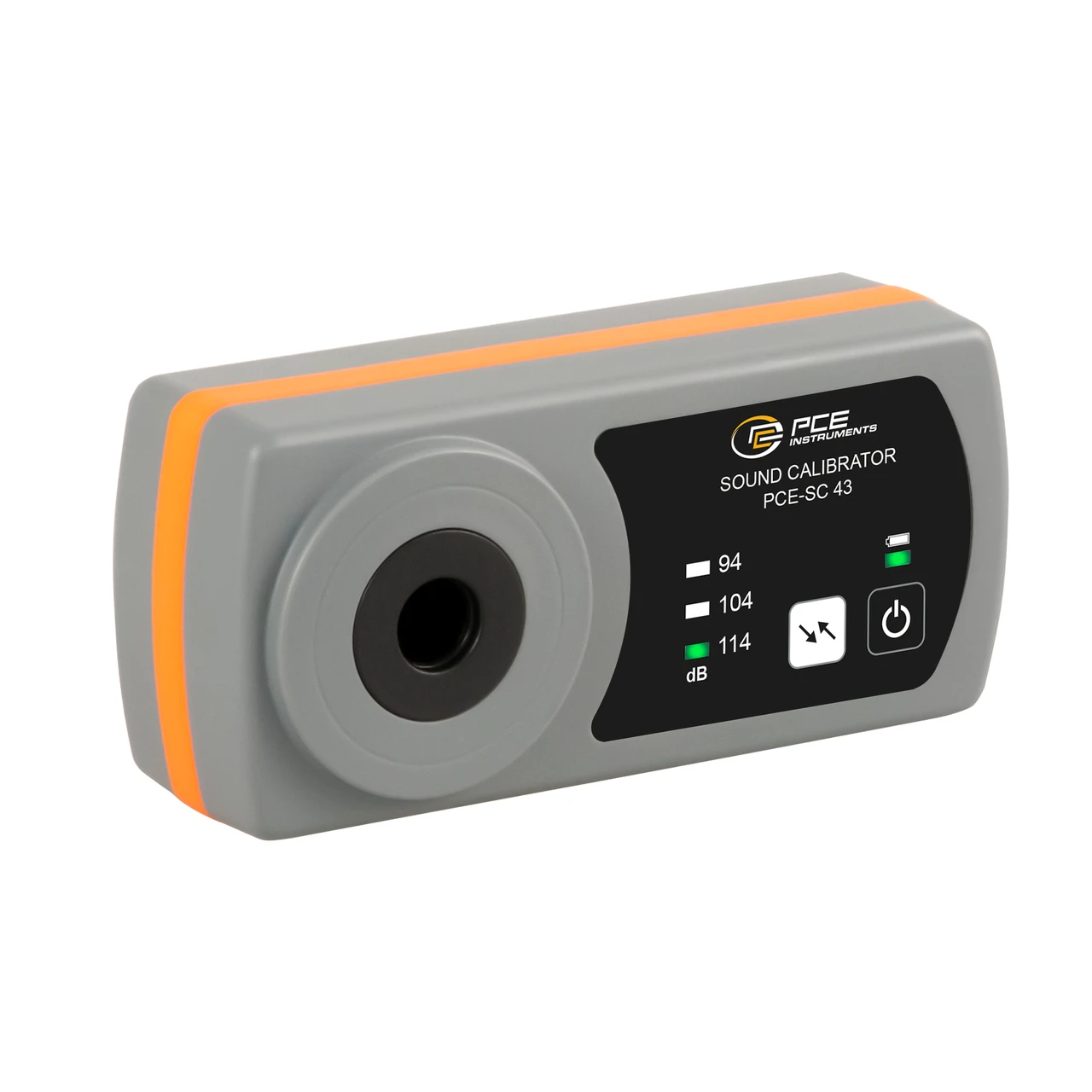

PCE Instruments Class 2 Decibel Meter Calibrator (PCE-SC 43)
PCE Instruments Class 2 Decibel Meter Calibrator (PCE-SC 43) is a reliable device for verifying and adjusting sound level meters. It features three selectable sound pressure levels—94 dB, 104 dB, and 114 dB—allowing for precise calibration in various noise measurement applications.
Its ±0.4 dB accuracy makes it an essential tool for checking the precision of sound-measuring devices. Designed for extended use, it offers up to 50 hours of battery life and an automatic shut-off function to conserve power during periods of inactivity.
Specifications and Dimensions
Sound Pressure Levels: 94 dB, 104 dB, 114 dB
Accuracy: ±0.4 dB
Calibration Frequency: 1000 Hz for A, B, C, and D weighting filters
Frequency Accuracy: ±1.7%
Stabilization Time: 10 seconds
Total Harmonic Distortion: <3%
Environmental Conditions:
Temperature Influence: <0.4 dB at 0 … 40°C / 32 … 104°F
Humidity Influence: 25 … 90% RH
Atmospheric Pressure Influence: <0.1 dB at 65 … 108 kPa
Stability within <60 seconds: ±0.15 dB
Stability after one year (normal use): ±0.35 dB
Operating Conditions: 0 … 40°C / 32 … 104°F, 25 … 90% RH (non-condensing)
Storage Conditions: -20 … 50°C / -4 … 122°F, <90% RH (non-condensing)
Automatic Shutdown: After 20 minutes
Power Supply: 2 x 1.5 V AA batteries
Battery Life: Approximately 50 hours
Microphone Size: 1/2 inch
Dimensions: 60 x 130 x 37.5 mm / 2.3 x 5.1 x 1.4 in
Weight: 400 g / 14.1 oz
Key Features and Benefits
Three adjustable sound pressure levels: 94 dB, 104 dB, and 114 dB
Ensures accurate calibration of sound level meters
Compatible with A, B, C, and D weighting filters
Battery life of up to 50 hours for extended operation
Automatic shut-off function conserves battery power
Lightweight and portable for convenient field and lab use
Meets IEC 942 Class 2 accuracy standards
1 x Class 2 Decibel Meter Calibrator PCE-SC 43
2 x 1.5 V AA Batteries
1 x Instruction Manual
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-SC 43
