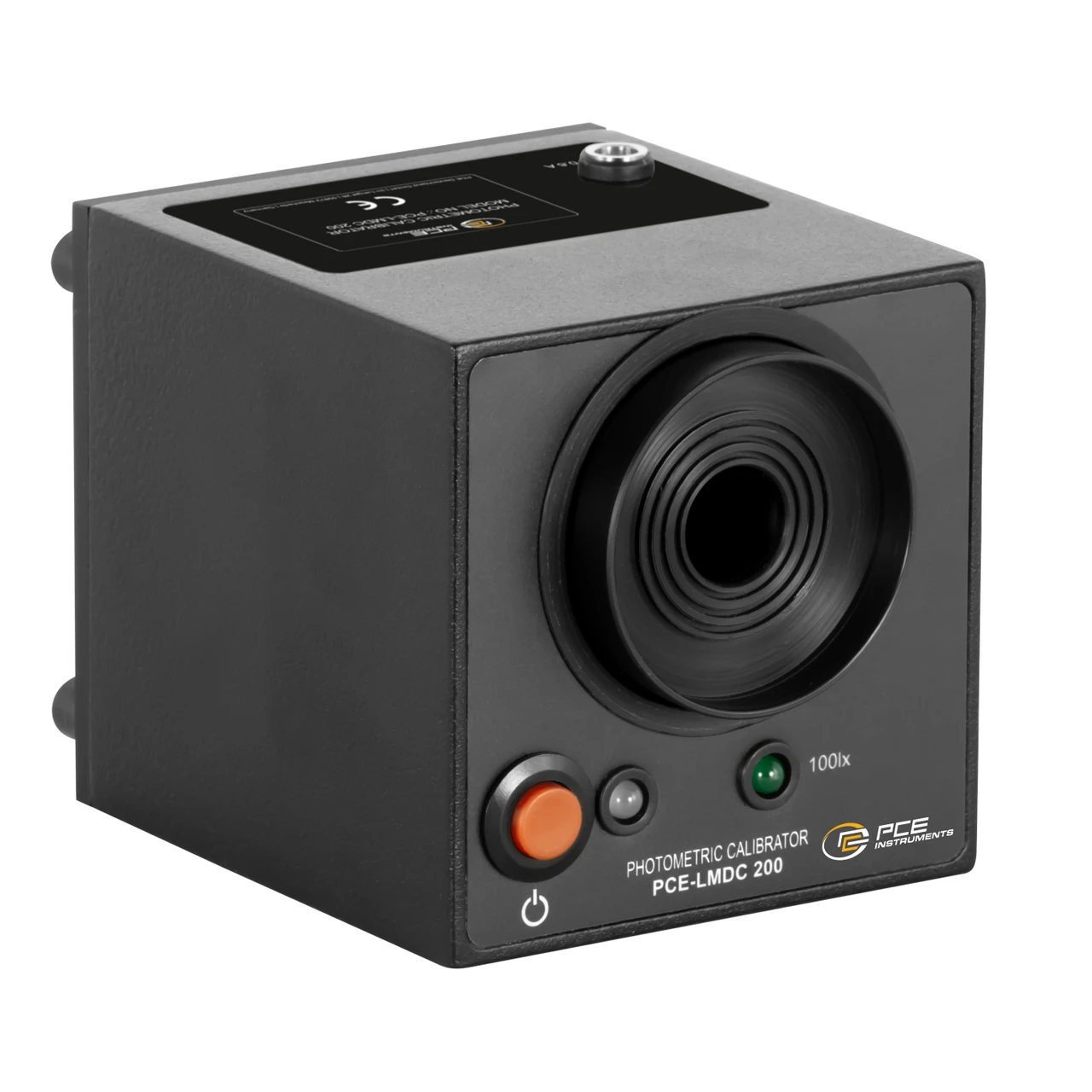

PCE Instruments Calibrator/Simulator for Light Measurement Devices (PCE-LMDC 200)
PCE Instruments Calibrator Simulator (PCE-LMDC 200) is a precise and reliable tool designed for calibrating light measurement devices. With a fixed light intensity of 100 lux and a defined color temperature of 3000 Kelvin, it ensures consistent and accurate sensor adjustments.
This calibrator enhances the reliability of lux meters by providing a controlled environment for calibration, minimizing potential errors. The PCE Instruments Calibrator Simulator includes input voltage control to optimize performance and prevent inaccuracies caused by unstable power supply.
Specifications and Dimensions
Light Intensity: 100 lx
Light Color: 3000 K
Accuracy: ±0.1% (max. ±0.3%)
Long-Term Accuracy: ±1% after 3000 periods or 1 year
Working Period: 1 minute
Input Voltage Control: Yes
Power Supply: 12V DC, 0.6 A
Plug Type: Euro plug
Protection Class: IP20
Dimensions: 110 x 80 x 80 mm
Weight: 650 g (Device), 1310 g (With Accessories), 1450 g (With Packaging)
Operating Conditions: 0 to 40°C, 0 to 80% RH
Storage Conditions: 0 to 40°C, 0 to 80% RH
Key Features and Benefits
Provides 100 lx fixed light intensity for accurate sensor calibration
3000K light color matches common lighting conditions for precise adjustments
Input voltage control prevents calibration errors due to unstable power
1-minute working period extends light source lifespan
Designed for professional calibration of light measuring devices
Compatible with the PCE-LMD 200 for seamless sensor adjustment
Compact and lightweight design for easy handling and storage
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-LMDC 200
