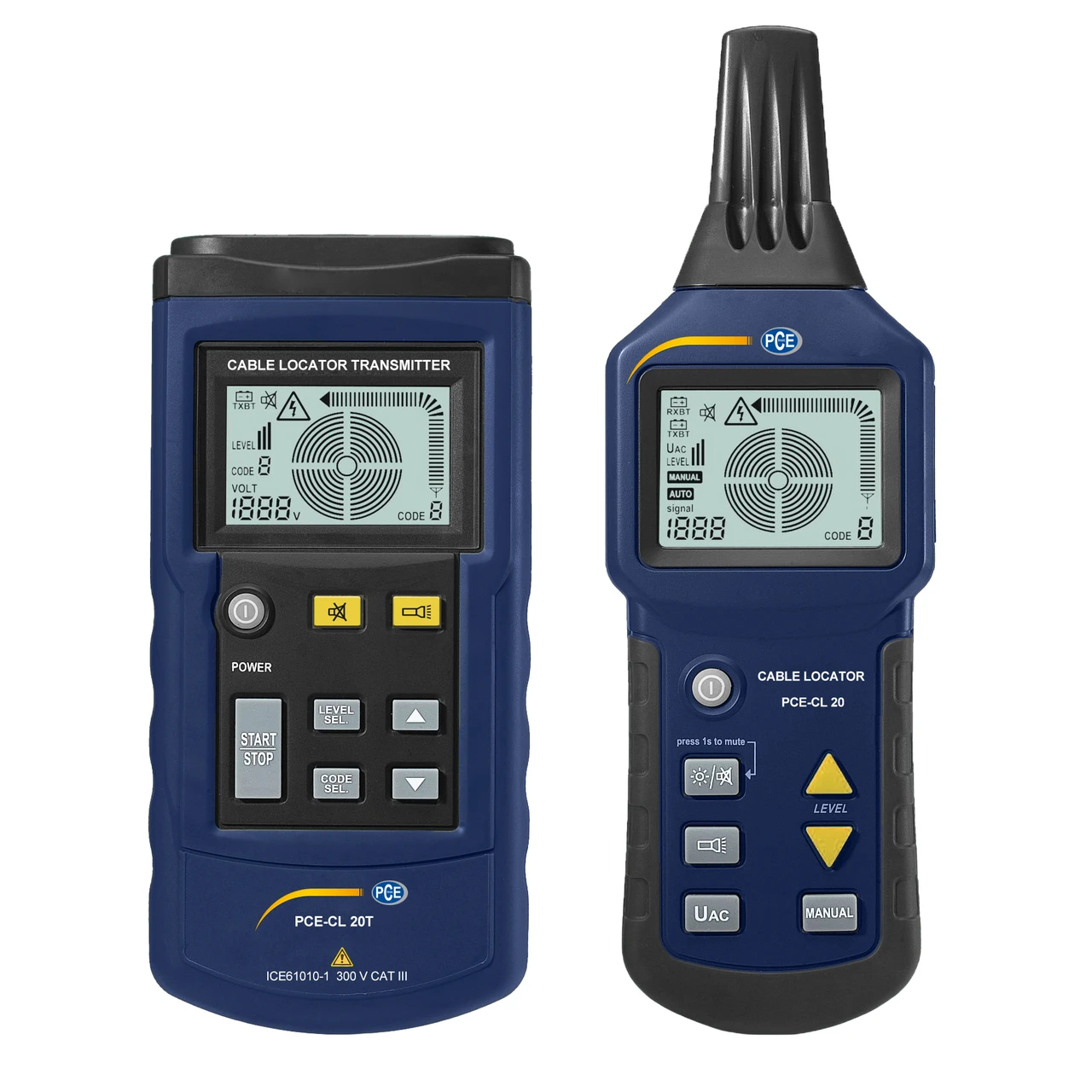

PCE Instruments Cable Detector (PCE-CL 20)
PCE Instruments Cable Detector (PCE-CL 20) is a versatile tool designed to detect live and non-live electrical wires, short circuits, and metallic or non-metallic pipes. Featuring an integrated LCD display and LED lighting, this detector allows professionals to trace wires inside walls, ceilings, and floors with precision.
The multi-purpose wire detector offers accurate results for electricians, technicians, and DIY users. The signal generator and receiver system ensures easy identification of hidden cables while the included accessories provide enhanced usability in various applications.
Specifications and Dimensions
Output Signal: 125 kHz
External Voltage Identification: DC 12 – 400 V, AC 12 – 400 V (50 – 60 Hz)
Maximum Voltage: 400 V AC/DC
Overvoltage Category: CAT III 300 V
Detection Depth: Up to 2.5 m (8.2 ft) depending on application
Display: LCD with LED backlight
Power Supply (Transmitter): 9V battery
Power Supply (Receiver): 6 x 1.5V AAA batteries
Operating Conditions: 0 – 40°C (32 – 72°F), <80% RH
Storage Conditions: -20 – 60°C (12 – 92°F), <80% RH
Transmitter Dimensions: 190 x 89 x 42.5 mm (7.48 x 3.50 x 1.67 in)
Receiver Dimensions: 241.5 x 78 x 38.5 mm (9.5 x 3.07 x 1.51 in)
Weight: Transmitter – 420 g (0.92 lbs); Receiver – 350 g (0.77 lbs)
Key Features and Benefits
Detects live and non-live electrical cables, gas and water pipes
Locates short circuits and follows hidden lines inside walls
Compatible with one- and two-pole circuits
Automatic, manual, and UAC measurement modes for different applications
Bright LED indicators for use in low-light environments
LCD screen with backlight for clear readings
Includes alligator clips, measuring tips, test leads, and a ground rod
1 x PCE-CL 20 Cable Detector (Transmitter and Receiver)
2 x Alligator Clips
2 x Measuring Tips
1 x Grounding Rod
1 x Carrying Strap
1 x Carrying Bag
6 x 1.5V AAA Batteries
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-CL 20
