PCE INSTRUMENTS sound level meter details

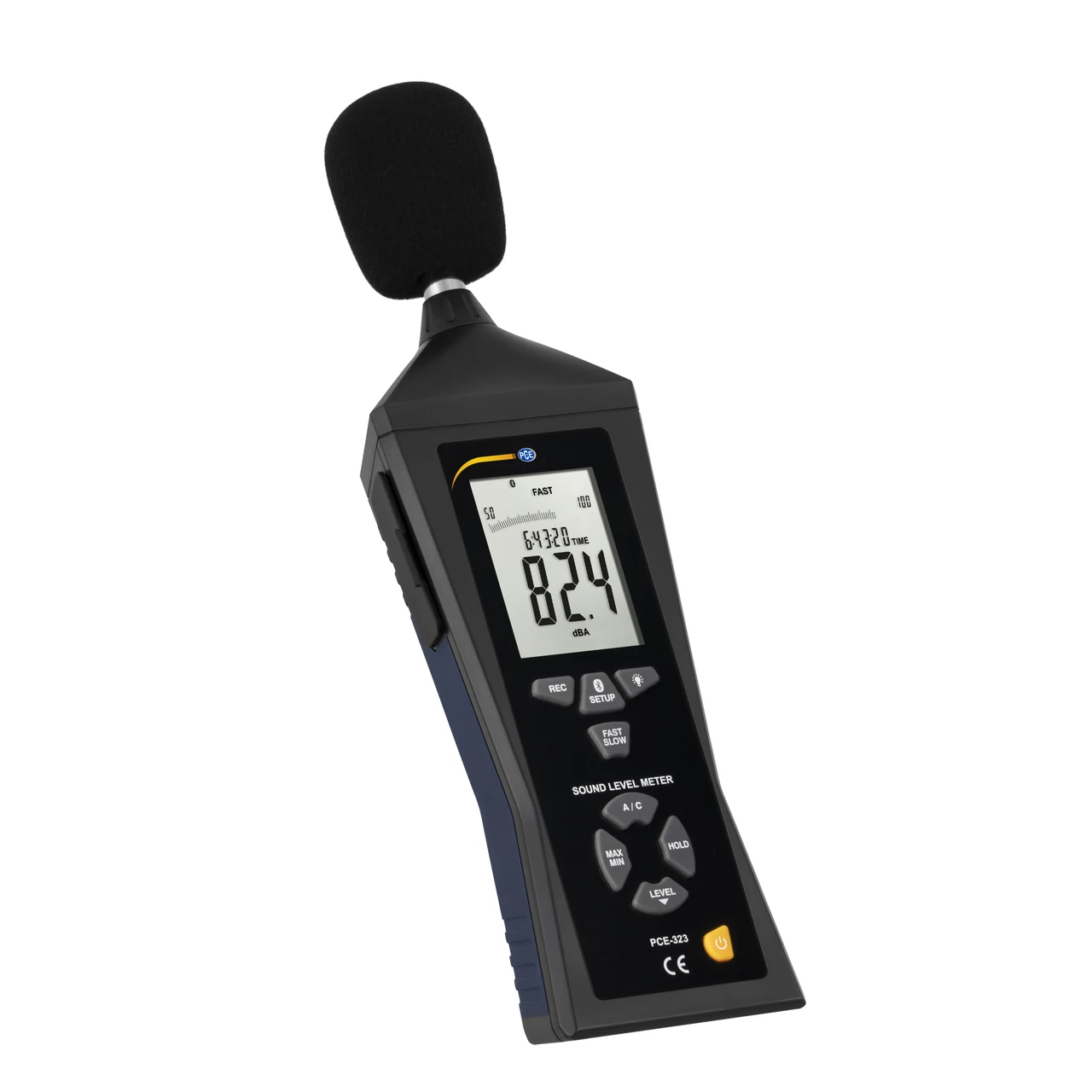

PCE Instruments Bluetooth Sound Level Meter (PCE-323)
PCE Instruments Bluetooth Sound Level Meter (PCE-323) is a professional noise measurement device with Bluetooth connectivity, USB data logging, and real-time monitoring capabilities. This meter is ideal for industrial, workplace, and environmental noise monitoring.
It features A and C frequency weighting and supports both battery and mains power for versatile operation. With a measurement range of 30 to 130 dB and accuracy class 2 compliance, the sound level meter delivers precise readings for compliance testing, machine noise assessment, and workplace safety checks.
Specifications and Dimensions
Measuring Range: 30 – 130 dB
Resolution: 0.1 dB
Accuracy: ±1.4 dB
Frequency Range: 31.5 Hz – 8 kHz
Storage Capacity: 32,700 readings
Time Weighting: Fast (125 ms) / Slow (1 sec.)
Frequency Weighting: A and C
Microphone Type: 1/2" Electret Condenser
Data Interface: USB, Bluetooth 4.0
Analog Output: 1 Vrms/dB AC, 3.5mm jack
Power Supply: 9V battery (approx. 30-hour operation) / AC adapter
Operating Temperature: 0 – 40°C (32 – 104°F), <90% RH
Storage Temperature: -10 – 60°C (14 – 140°F), <75% RH
Dimensions: 278 x 76 x 50 mm (10.9 x 3.0 x 2 in)
Weight: 350 g (12.3 oz)
Compliance: IEC 61672-1 Class 2
Key Features and Benefits
Bluetooth connectivity for real-time noise monitoring via mobile app
USB interface for seamless data transfer and storage
High-precision measurements with A and C frequency weighting
Tripod mount for stable and accurate readings
Supports battery and AC power for flexible use
32,700 reading storage for long-term noise assessments
Includes software for graphical analysis and data export
Durable ABS plastic housing for industrial applications
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-323
