Stroboscope details

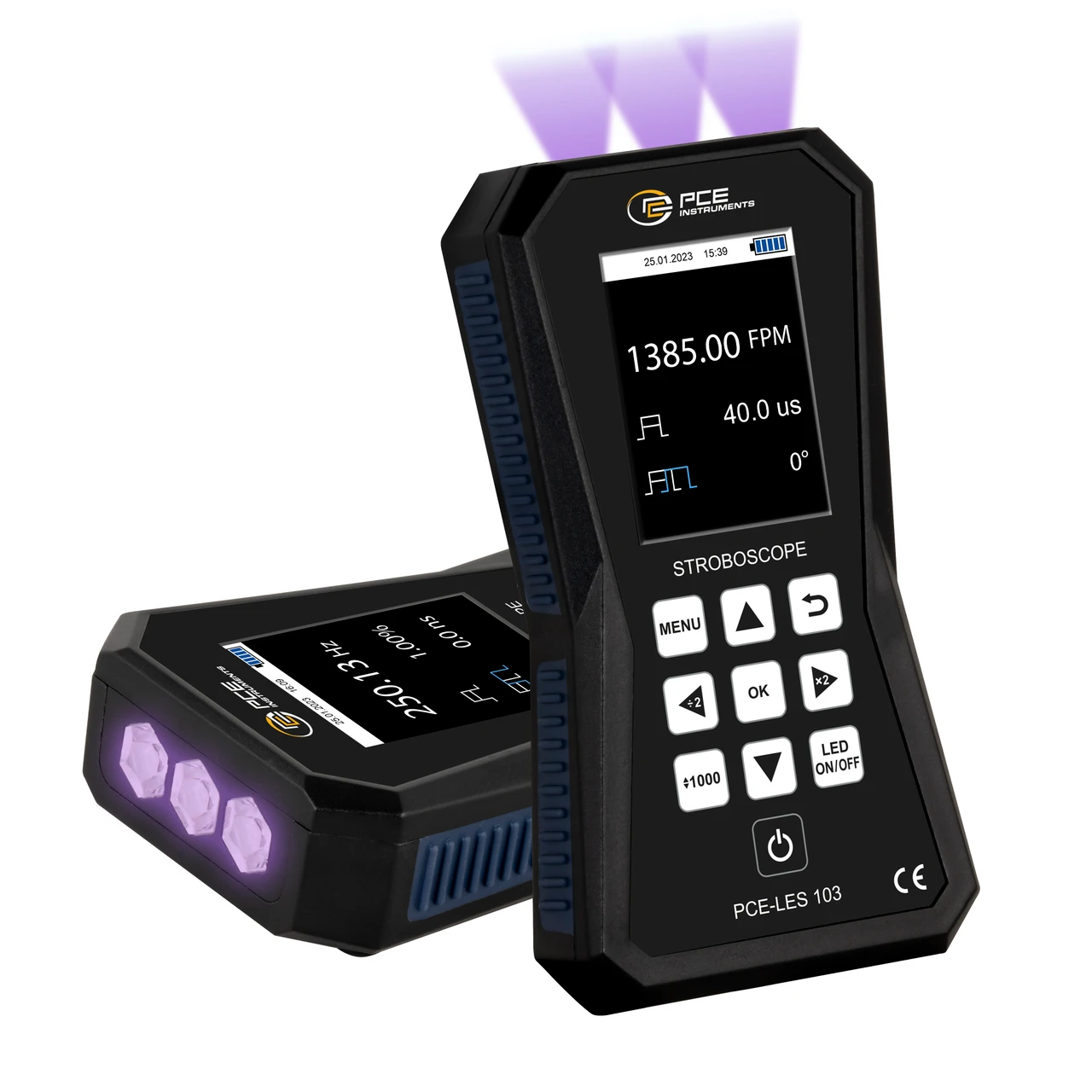

PCE Instruments Automotive Tester/Stroboscope with UV High-Power LEDs (PCE-LES 103UV-385)
PCE Instruments Automotive Tester/Stroboscope (PCE-LES 103UV-385) is a high-performance device designed for precision motion analysis and industrial inspection. With three UVA high-power LEDs (385 nm), this stroboscope provides an intensity of 317 μW/cm² at 30 cm, making it ideal for monitoring rotating machinery and detecting high-speed motion with clarity.
The PCE Instruments Automotive Tester/Stroboscope allows precise flash frequency adjustment in FPM and Hz. The intuitive interface includes phase shift capabilities and digital pulse width modulation for enhanced visibility and control.
Specifications and Dimensions
Flash Frequency: Adjustable in FPM and Hz
Measurement Range: 60 to 300,000 FPM
Phase Shift: -360° to +360°
Pulse Width: 0.01% to 1% of pulse duration
Light Intensity: 317 μW/cm² at 30 cm
Light Wavelength: 380 … 390 nm
Display Type: 2.8-inch TFT color display
Operating Time: Up to 4.5 hours at 100 Hz
Power Supply: 5V DC, 2A rechargeable battery
Device Protection: IP52
Device Weight: 284 g / 0.6 lbs
Device Dimensions: 165 x 90 x 35 mm
Operating Temperature: -20 to 60°C
Key Features and Benefits
Three UVA high-power LEDs for precise motion analysis
Adjustable flash frequency for non-contact speed measurement
Phase shift capability to optimize inspection accuracy
Digital pulse width modulation for consistent light intensity
Lightweight, battery-operated design for portability
Auto shut-off feature to extend battery life
Easy-to-use menu with multilingual support
Ideal for industrial maintenance, printing, and textile inspections
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-LES 103UV-385
