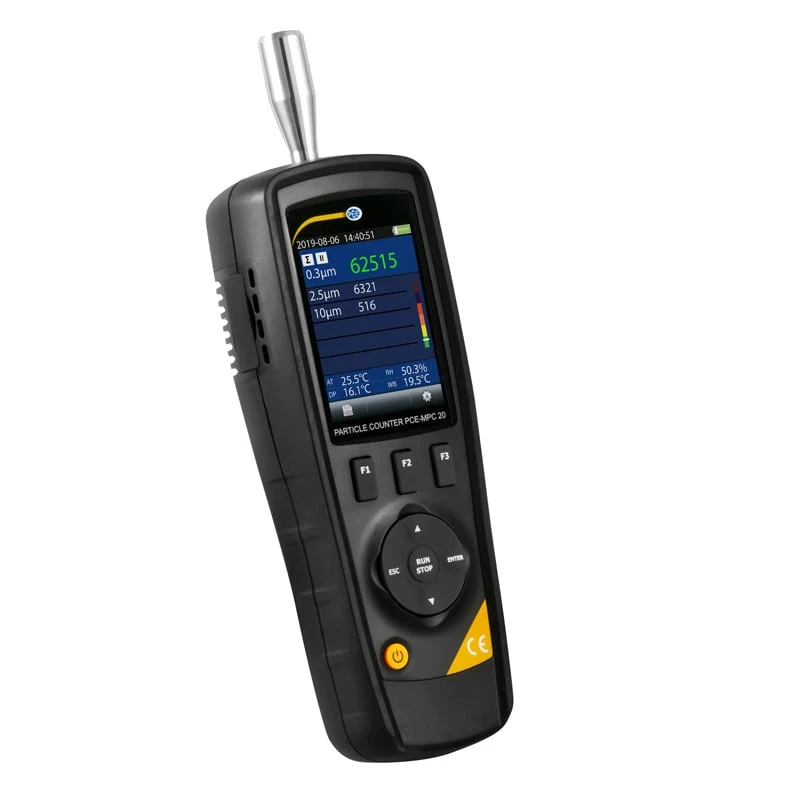

PCE Instruments Air Quality Monitoring Particle Counter (PCE-MPC 20)
PCE Instruments Air Quality Monitoring Particle Counter (PCE-MPC 20) is a portable air quality monitoring device designed to measure PM 2.5 and PM 10 concentrations in the air. Equipped with a high-performance pump for accurate readings, this device also tracks temperature, humidity, and dew point, making it ideal for indoor and outdoor applications.
Powered by a rechargeable battery with a runtime of approximately 4 hours, this device ensures continuous air quality monitoring. The included mini tripod and hard case enhance portability and convenience.
Specifications and Dimensions
Particle Measurement: PM 2.5 and PM 10
Measuring Range (Mass Concentration): 0 … 2000 μg/m³
Resolution: 1 μg/m³
Particle Counter Sizes: 0.3, 2.5, and 10 μm
Flow Rate: 2.83 l/min (0.1 ft³)
Temperature Range: 0 … 50°C / 32 … 122°F
Humidity Measurement: 0 … 100 % RH
Display: 2.8" color LCD with 320 x 240 pixels
Power Supply: Rechargeable 7.4V 1200-mAh battery
Battery Life: Approx. 4 hours
Data Storage: 5,000 data sets (Micro SD card)
Interface: USB for charging
Dimensions: 240 x 75 x 57 mm / 9.4 x 3 x 2.2 in
Weight: 570 g / 1.3 lbs
Key Features and Benefits
Measures PM 2.5 and PM 10 concentrations for air quality analysis
Equipped with a high-performance pump for precise particle counting
Built-in data logger stores up to 5,000 measurement records
Adjustable alarm alerts users when PM 2.5 levels exceed limits
1 x PCE Instruments PCE-MPC 20 Particle Counter
1 x Rechargeable Battery
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-MPC 20
