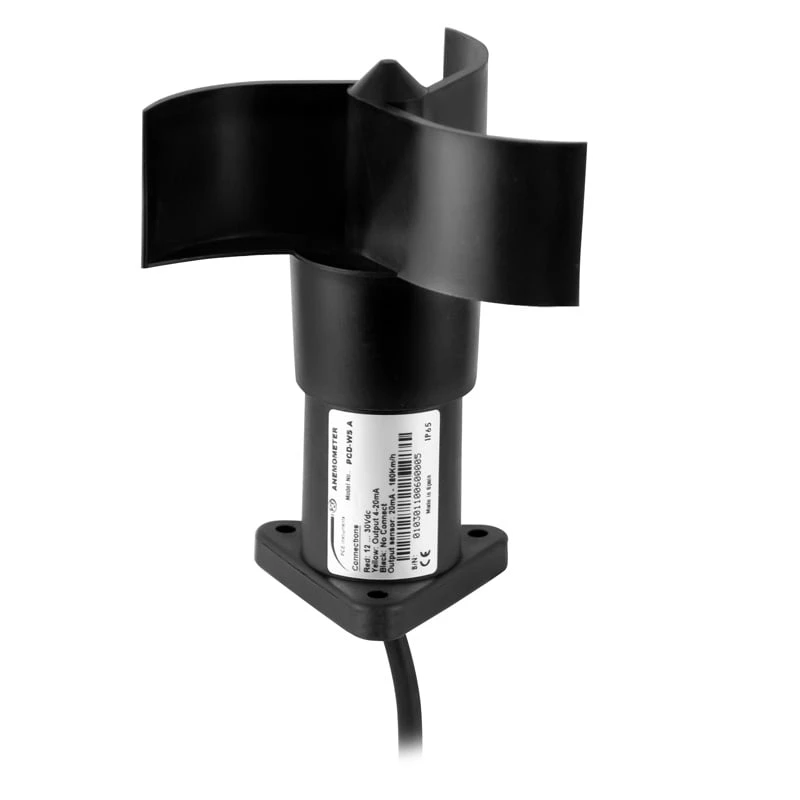

PCE Instruments Air Flow Meter with Wind Speed Monitoring
PCE Instruments Air Flow Meter is a high-precision wind speed sensor designed for fixed installations in industrial, building automation, and wind warning systems. With a measuring range of 2.62 to 164.04 ft/s (0.8 to 50 m/s), this robust anemometer ensures accurate real-time airflow monitoring in various applications.
The durable plastic housing provides high resistance to corrosion, and the IP65-rated enclosure ensures weather protection in outdoor environments. The PCE Instruments Air Flow Meter offers multiple output signals, including 4–20 mA, 0–10V, pulse, or Modbus.
Specifications and Dimensions
Measuring Range: 2.62 … 164.04 ft/s, 0.8 … 50 m/s
Minimum Measurement: ≤2.62 ft/s, 0.8 m/s
Below 13.12 ft/s: ± 0.89 ft/s / Below 4 m/s: ± 0.27 m/s
Above 13.12 ft/s: ± 3% / Above 4 m/s: ± 3%
Operating Voltage: 12 … 30 V DC
Operating Temperature: -4 … +185 °F (-20 … +80 °C) at ≤95% relative humidity
Maximum Wind Speed: 180.45 ft/s (123 mph, 55 m/s)
Electrical Connection: 65 ft (20 m) connection cable
Protection Class: PCE-WS A: IP65 (dust and water-resistant), PCE-WS CR: IP 54 protection, PCE-WS P: IP65 (dust and water-resistant), PCE-WS RS485: IP65 (dust and water-resistant), PCE-WS V: IP65 (dust and water-resistant)
Key Features and Benefits
Provides real-time wind speed monitoring with high accuracy
Multiple output options (4–20 mA, 0–10V, Modbus, pulse) for integration
Robust plastic housing ensures resistance to corrosion and harsh environments
IP65-rated enclosure for protection against dust and water
Designed with a star-shaped structure for accurate wind readings
Long lifespan and maintenance-free operation
Suitable for wind warning systems, automation, and environmental monitoring
Product identification
- Brand: PCE INSTRUMENTS
