Ph meter pce instruments details

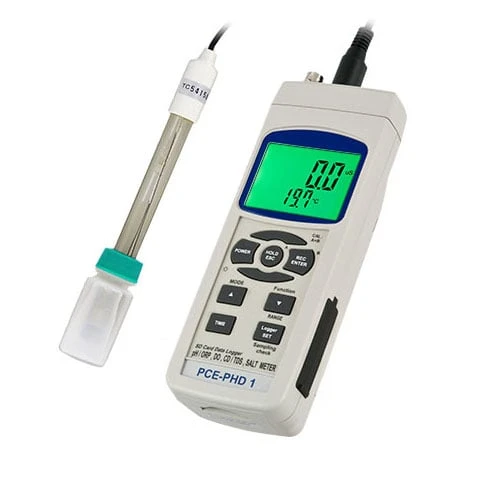

PCE Instruments Advanced Water Quality pH Meter (PCE-PHD 1-PH)
PCE Instruments Advanced Water Quality pH Meter (PCE-PHD 1-PH) is a portable device designed for precise measurement of pH levels and temperature in various water samples. Its user-friendly interface and robust design make it suitable for both laboratory and field applications.
Equipped with automatic temperature compensation and a three-point calibration system, this meter ensures high accuracy even under varying conditions. The device supports pH measurements ranging from 0 to 14.0, catering to a wide array of testing needs.
Specifications and Dimensions
pH Measurement Range: 0 to 14.0 pH
pH Resolution: 0.01 pH
pH Accuracy: ±0.02 pH + 2 digits
Calibration: 3 points (pH 4, pH 7, and pH 10)
Temperature Compensation: Automatic with additional temperature sensor (0 … 60 ºC / 32 ºF … 140 ºF) or manual (0 … 100 ºC / 32 ºF … 212 ºF)
Temperature Measurement Range: 0 to 60 ºC (32 to 140 ºF)
Temperature Resolution: 0.1 ºC
Temperature Accuracy: ±0.8 ºC
Display: LCD 52 x 38 mm / 2 x 1.5"
Memory: SD card up to 16 GB (2 GB card included)
Interface: RS-232
Power Supply: 6 x 1.5 V AA batteries (optional power adapter)
Operating Conditions: 0 … +50 ºC / < 85 % RH
Dimensions: 177 x 68 x 45 mm / 7.0 x 2.7 x 1.8"
Weight: 490 g / 1.1 lbs
Key Features and Benefits
Measures pH and temperature
Automatic temperature compensation for increased accuracy
Three-point calibration system
Real-time data logging with SD card storage (Excel format)
RS-232 interface for easy data transfer
Suitable for both laboratory and field applications
Includes pH electrode and temperature sensor
Robust, compact, and easy to operate
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-PHD 1-PH
