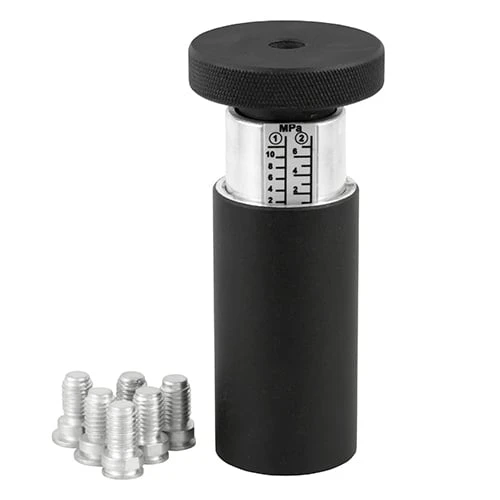

PCE Instruments Adhesion Tester (PCE-TAT 10)
PCE Instruments Adhesion Tester (PCE-TAT 10) is a professional pull-off testing device designed for precise adhesion measurements of paints, coatings, and surface treatments. This adhesion tester operates using a mechanical spring system, ensuring accurate breakout force readings.
By gluing a dolly to the test surface and applying force, it determines adhesion values based on industry standards. The device is ideal for paint adhesion testing, coatings evaluation, and industrial quality control.
Specifications and Dimensions
Breakout Force: 200 kg
Dolly Diameter: 15.1 mm (№ 1), 19.5 mm (№ 2)
Specific Breakout Force:
Dolly №1: up to 10 MPa (100)
Dolly №2: up to 6 MPa (60)
Scale Measurement: 1 MPa (№ 1), 2 MPa (№ 2)
Device Dimensions: 150 × 70 mm
Package Dimensions: L180 × W150 × H100 mm
Key Features and Benefits
Designed for testing adhesion strength of coatings and paints
Mechanical pull-off operation with precise breakout force reading
Conforms to EN13144 and ISO 4624 standards
Simple and user-friendly design for daily adhesion testing
Two different dolly sizes for various material applications
Includes fast-curing glue for quick testing procedures
Lightweight and portable for field and laboratory use
1 x Adhesion Tester PCE-TAT 10
1 x Cutter (ballerina) for surface preparation
1 x Two-component epoxy adhesive
1 x Operating Manual
1 x Carrying Case
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-TAT 10
