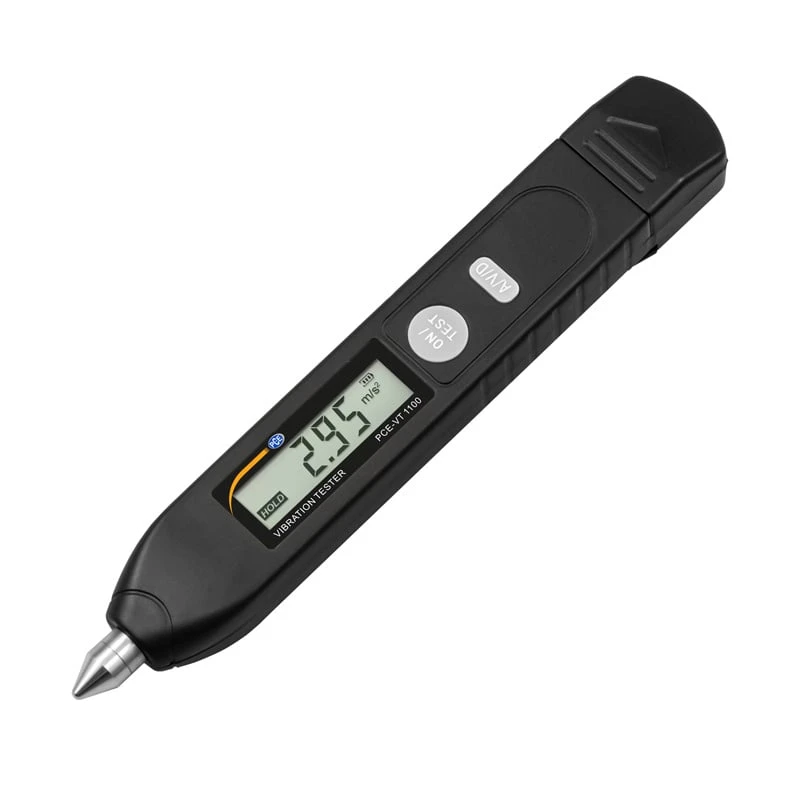

PCE Instruments Accelerometer with Handheld Vibration Testing (PCE-VT 1100)
PCE Instruments Accelerometer (PCE-VT 1100) is a compact handheld device designed for precise vibration measurements in industrial environments. It measures acceleration, vibration speed, and displacement, making it an essential tool for machine condition monitoring and maintenance.
With a wide frequency range and built-in data memory, this accelerometer enables users to assess equipment performance efficiently. The device is battery-operated for portability and features an automatic shutdown function to conserve battery life.
Specifications and Dimensions
Acceleration: 0.01 … 199.9 m/s² peak (10 Hz … 1 kHz)
Vibration Speed: 0.01 … 199.9 mm/s RMS (10 Hz … 1 kHz)
Displacement: 0.001 … 1.999 mm p-p (10 … 500 Hz)
Measurement Accuracy:
Acceleration: ≤ 3%
Vibration Speed: ±5%, ±2 Digits
Displacement: +10/-20% (10 … 20 Hz), ±5% (20 … 1000 Hz)
Display: LCD with fast response time (~1 second)
Power Supply: 2 x 6V CR2032 button cells
Battery Life: ~5 hours (continuous operation)
Environmental Conditions: 0 … +40°C (32 … 104°F), 0 … 84% RH
Dimensions: 155 x 24 x 18.7 mm / 6.1 x 0.9 x 0.7"
Weight: ~40 g / 1.4 oz (including batteries)
Key Features and Benefits
Measures acceleration, vibration speed, and displacement
Ideal for machine condition monitoring and maintenance
Retains measured values for comparison after each test
Battery-operated and portable for on-site assessments
Wide frequency range ensures versatile application
Automatic shut-down after 20 seconds of inactivity to save power
Compact, lightweight, and easy to operate
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-VT 1100
