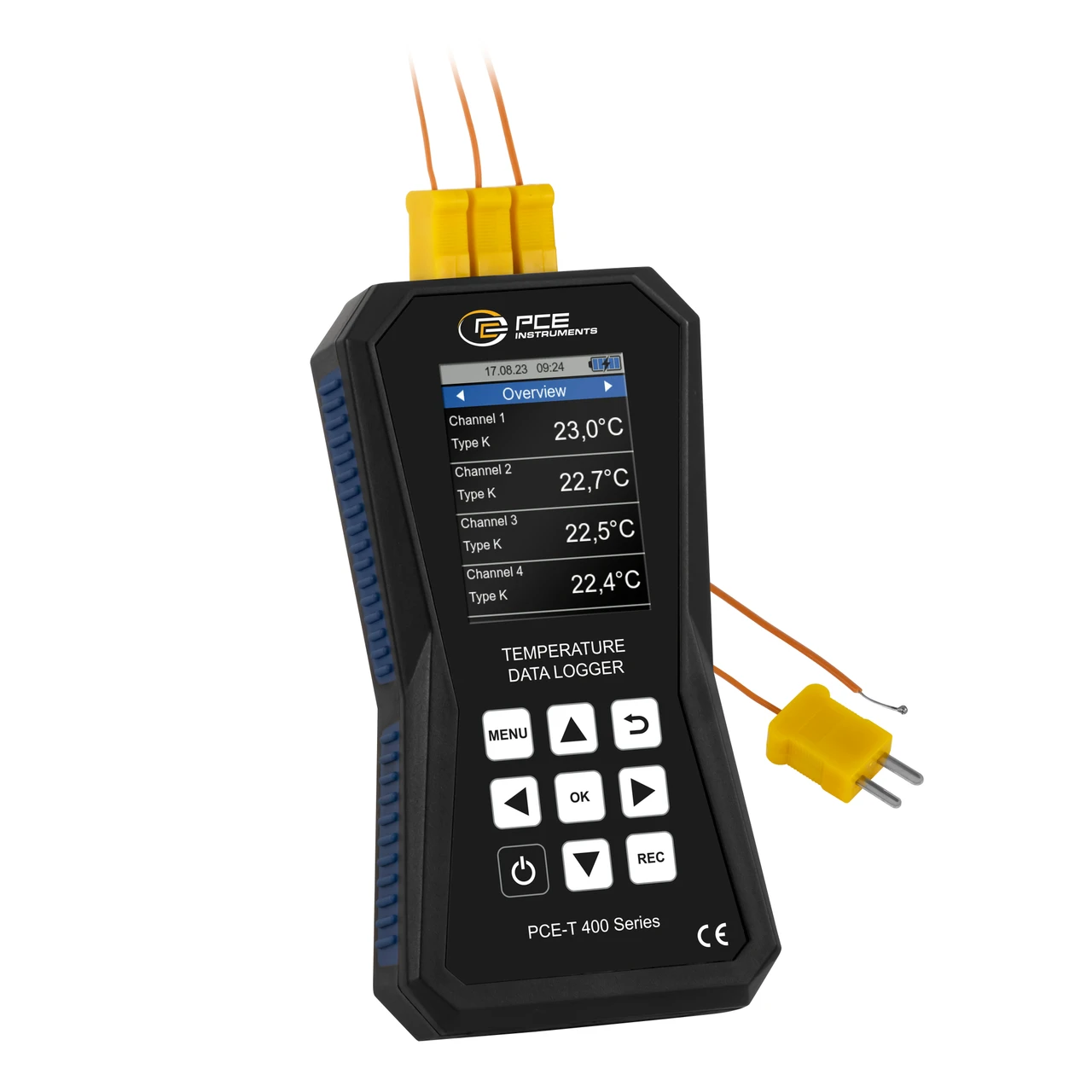

PCE Instruments 4-Channel Thermometer with Data Logger and USB Interface (PCE-T 420)
PCE Instruments 4-Channel Thermometer (PCE-T 420) is a highly precise multi-channel thermometer designed for industrial and laboratory applications. With four input channels, it supports multiple thermocouple types, allowing users to monitor different temperature points simultaneously.
This multi-channel thermometer is ideal for processes that require precise temperature tracking. It features an extensive data logger capable of storing up to 10 million readings. The LCD screen displays real-time measurements, and adjustable alarm thresholds help identify critical temperature variations.
Specifications and Dimensions
Measurement Range:
Type K: -200 … 1370°C
Type J: -200 … 1050°C
Type S: 0 … 1750°C
Type R: 0 … 1750°C
Type E: -200 … 850°C
Type T: -200 … 400°C
Type N: -200 … 1300°C
Type B: 600 … 1800°C
Resolution: 0.1°C
Accuracy: ± (0.04% + 0.3°C) for Type K
Number of Channels: 4
Units: °C, °F, K
Display: 2.8-inch LCD with illumination
Memory Capacity: 100 data sets (up to 100,000 readings per set)
Memory Interval: 1s to 43,200s
Interface: USB-C
Battery: 3.7V Lithium-Ion, 2500 mAh
Battery Life: Approximately 15-20 hours
Operating Conditions: -20 … 65°C, 10 … 95% r.H.
Protection Class: IP52
Dimensions: 6.4 x 3.3 x 1.2 inches
Key Features and Benefits
Simultaneous monitoring of up to four temperature channels
Supports eight thermocouple types (K, J, S, R, E, T, N, B)
Data logging for up to 10 million readings
Adjustable alarm limits with red-highlighted warnings
Real-time temperature difference comparison between channels
USB-C interface for fast data transfer
Battery-powered with long operational time
Multi-language menu including English, German, Spanish, and more
1 x PCE-T 420 Thermometer
4 x K-Type Wire Probes (TF-500)
1 x USB Stick with Manual and PC Software
1 x Carrying Case
1 x Quick Start Guide
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-T 420
