Drill press details

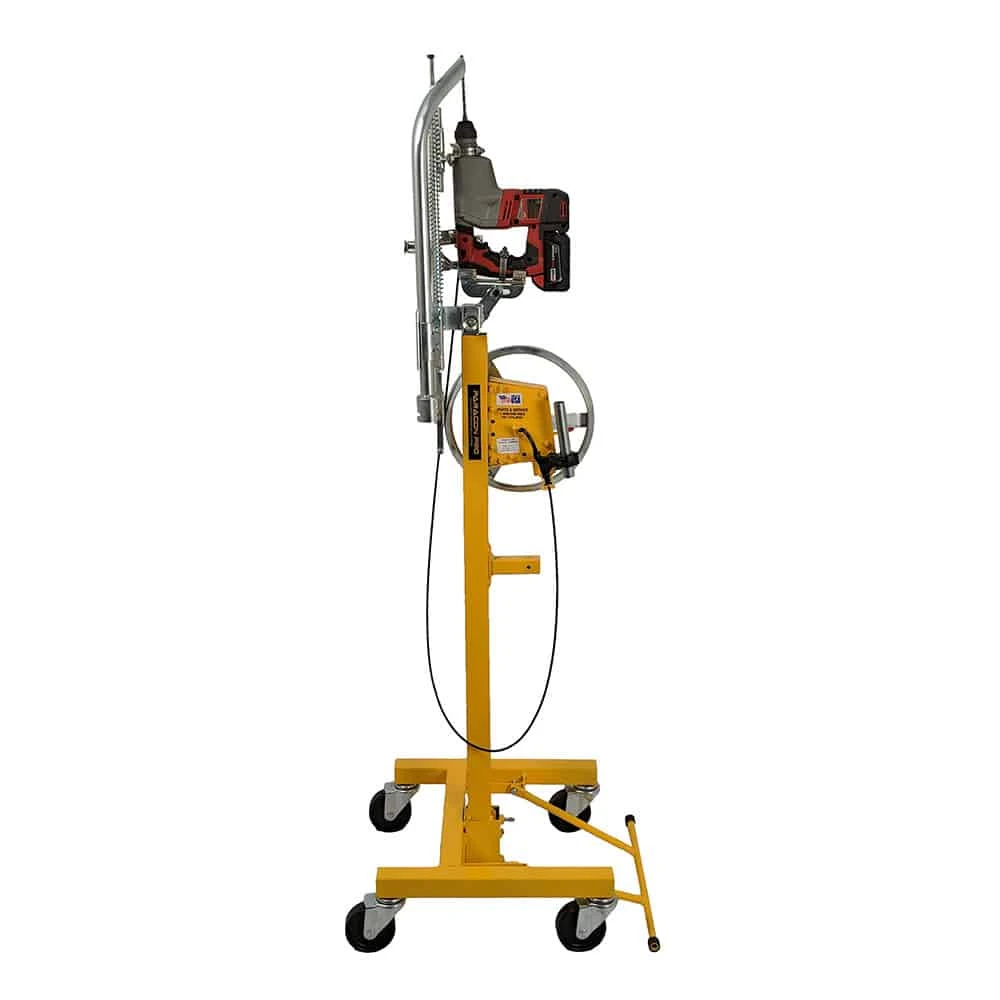

Paragon Pro DrillRite 7' Mini Overhead Concrete Drill Press (210)
The Paragon Pro DrillRite 7' Mini Overhead Concrete Drill Press (210) is an innovative, professional-grade tool engineered to transform how you approach overhead concrete drilling. Designed with safety and efficiency as top priorities, this drill press provides a stable, hands-free method for drilling into ceilings, significantly reducing operator fatigue and eliminating the dangers associated with drilling from a ladder. Its compact size and mobility make it a perfect fit for a wide range of job sites, from new construction to renovation projects.
KEY FEATURES AND BENEFITS:
Reaches heights up to 7 feet, ideal for scaffolding, mobile work platforms, and scissor lifts.
All-steel construction ensures long-term reliability and a stable drilling platform.
Built-in dust extraction system captures silica dust when connected to a vacuum, promoting a cleaner, safer work environment.
Includes dolly base with casters and a static flat base for easy movement or stable, stationary use.
Enhances safety and efficiency while working with concrete overhead.
Overall Length: 24 inches
Overall Width: 24 inches
Overall Height: 74.5 inches
Drill Cradle Height (Minimum): 51 inches
Drill Cradle Height (Maximum): 84 inches
Weight: 90-100 lbs
Included in Shipment: Main drill press unit, dolly base with casters, static flat base, all necessary assembly hardware
Assembly: Connect the two main components according to the instructions. Attach the desired base (dolly or static) to the bottom.
Mounting the Drill: Secure your rotary hammer drill into the drill cradle at the top of the unit, compatible with most SDS Plus rotary hammers.
Adjusting Height: Use the manual chain-driven winch to raise or lower the drill cradle to the required ceiling height (51 inches minimum to 84 inches maximum).
Positioning: Move the unit under the drilling spot. Ensure stability and lock the base if using casters.
Drilling: Engage the drill and apply pressure as needed. Hands-free operation provides consistent pressure and accurate hole drilling.
Dust Control: Connect a vacuum to the integrated dust extraction port to collect dust at the source, keeping the workspace clean.
BENEFITS OF USING THE PARAGON PRO DRILLRITE 7' MINI OVERHEAD CONCRETE DRILL PRESS (210):
Improved Safety: Eliminates the need to hold a heavy drill overhead, reducing injury risk.
Reduced Strain: Hands-free operation supports drill weight, minimizing operator fatigue.
Increased Precision: Stable platform ensures accurate, straight drilling.
Enhanced Productivity: Efficient drilling allows completion of more work in less time.
Cleaner Workspace: Integrated dust extraction collects silica dust for a safer environment.
Versatility: Compact design and dual bases adapt to various job site conditions and work platforms.
Hands-free operation for overhead drilling tasks.
Manual winch with chain drive for raising and lowering the drill.
Integrated vacuum port for dust collection.
All-steel construction for durability.
Holds most rotary hammer drills, including SDS Plus models.
Two interchangeable bases: mobile dolly with casters and static flat base.
Maximum drill reach of 7 feet.
Compatible with scaffolding, scissor lifts, and mobile work platforms.
Product identification
- Brand: Paragon Pro MFG
- Model / MPN: 210
