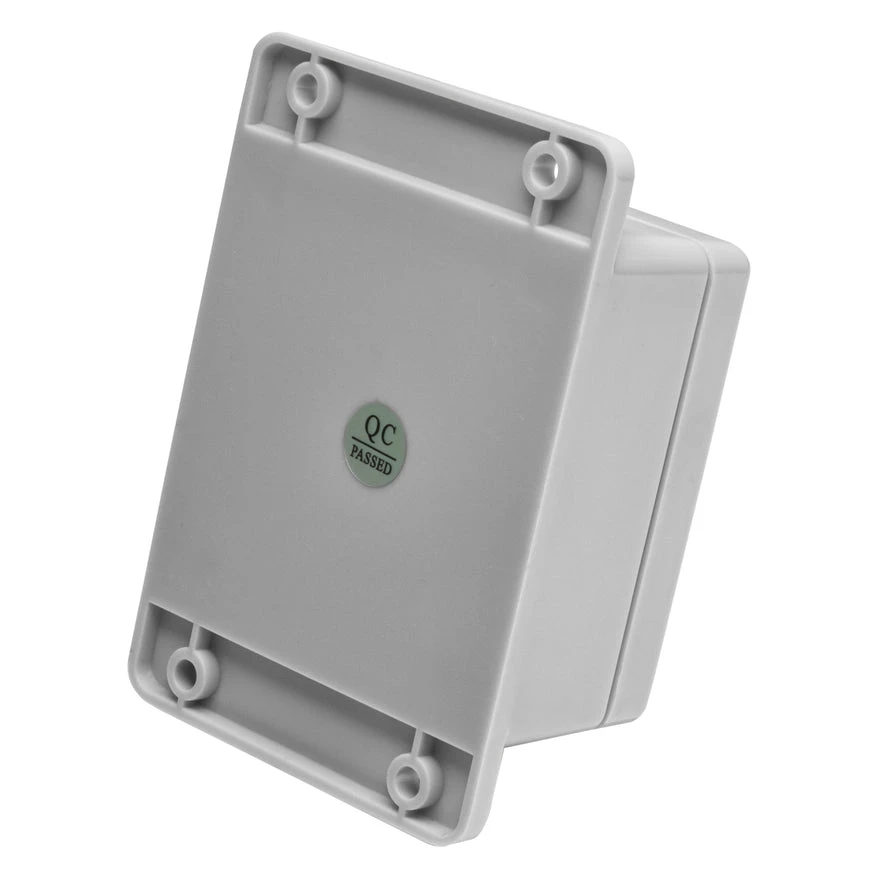

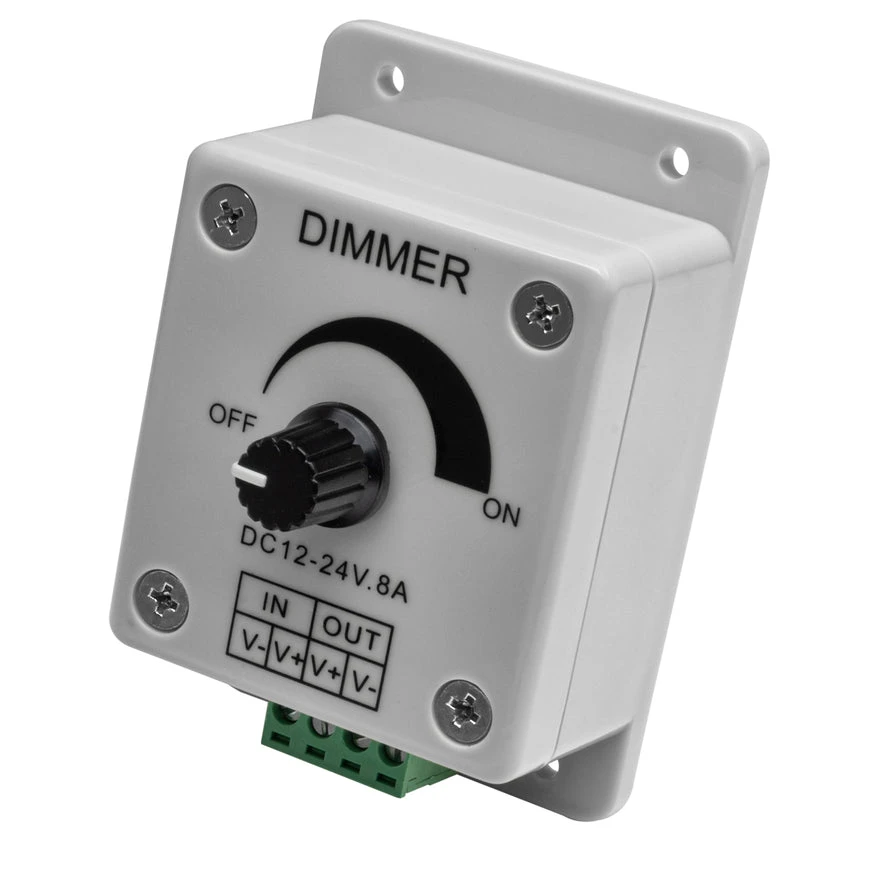

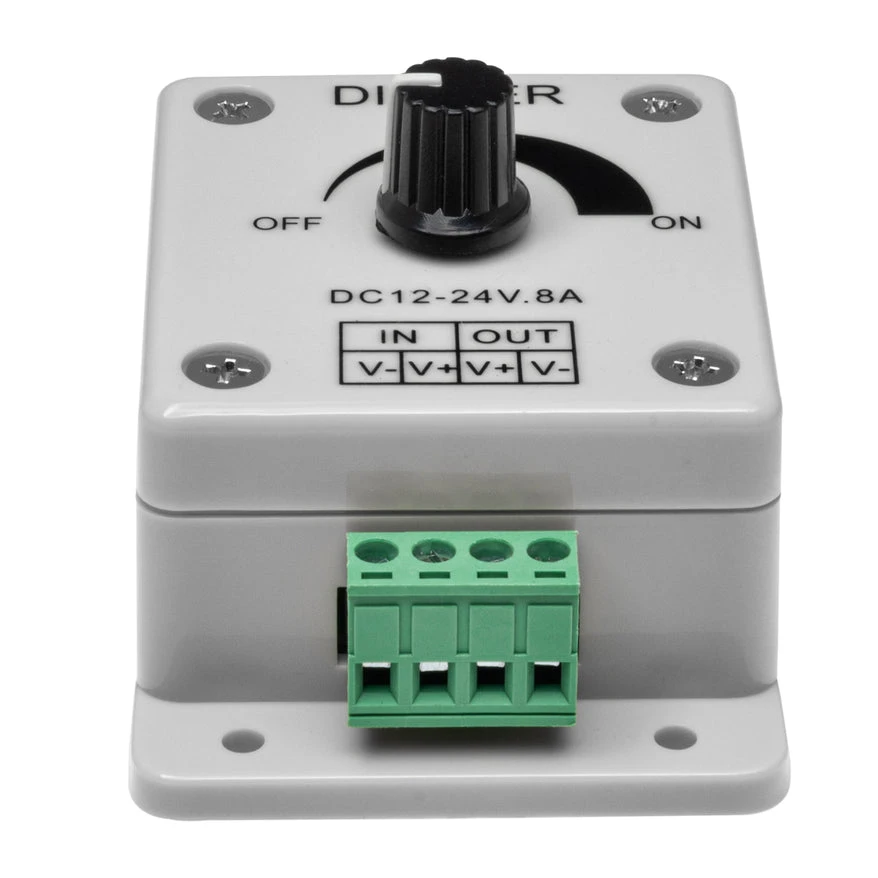

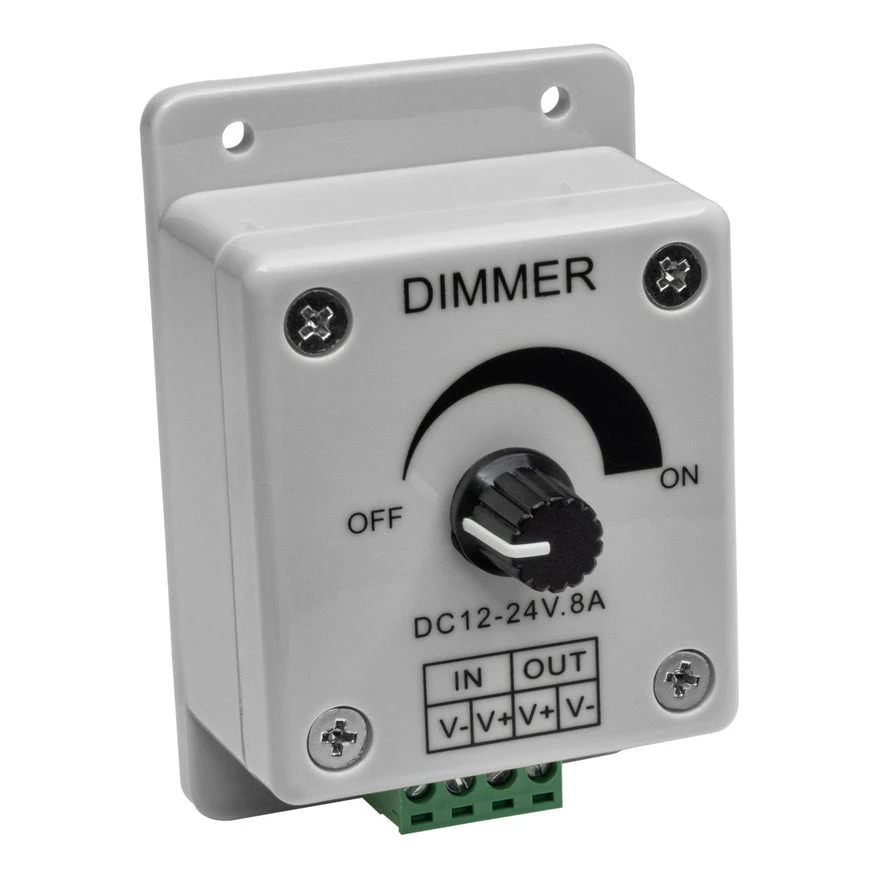

Oracle Lighting LED Dimmer Switch – Potentiometer (1708-001)
Oracle Lighting LED Dimmer Switch – Potentiometer (1708-001) is a universal single color LED dimmer. It can dim any 12V to 24V LEDs from 0%-100% brightness using a circuit control knob. The switch has screw terminal connections for power in and out and a maximum load of 8 Amps. Always observe proper polarity when connecting power and load.
The Oracle Lighting LED Dimmer Switch is designed for indoor use only and is not waterproof or weatherproof. It provides precise control over LED brightness, making it an essential component for any LED lighting setup.
Specifications and Dimensions
Supply Voltage: DC 12~24V
Max load current: 8 Amps
Output: 1 channel
Working temperature: -4~140F
Static power consumption: < 1 Watt
Output Power: 96 Watts
Function: Dim LEDs from 0~100% brightness
Key Features and Benefits
Universal single color LED dimmer
Adjust brightness from 0% to 100%
Easy screw terminal connections
Suitable for indoor use only
Perfect for single color SMD strips
Product identification
- Brand: Oracle Lighting
- Model / MPN: 1708-001
