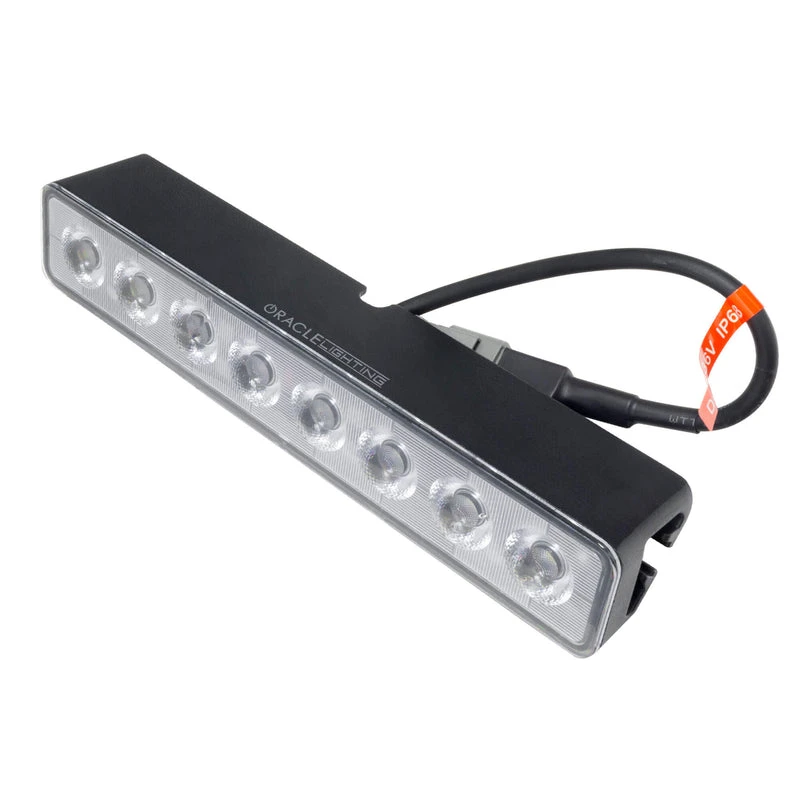

Oracle Lighting 9.5" 48W Angled LED Scene Light Flush Mount Bar (2916-48-001)
Oracle Lighting 9.5" 48W Angled LED Scene Light Flush Mount Bar (2916-48-001) offers powerful illumination for any workspace, making it ideal for exterior or interior lighting on RVs, trailers, or utility vehicles. Designed with a unique vertical-side flush mount, this light provides precise fitment and easy aiming, ensuring optimal lighting in all conditions.
The durable construction features an anodized polyester powder coating, offering resistance to rust, corrosion, and freezing. This scene light is designed to perform in extreme temperatures, ranging from -40°F to +125°F, ensuring reliable operation wherever you go.
Specifications and Dimensions
8pcs*6W LED (LUMILEDS)
Color Temperature: 5500K
Polycarbonate (PC) Front Cover
Finish: Polyester Powdercoat
Dimensions: 242*42*42mm
AMP Draw (12V/24V): 3A / 1.5A
Raw Lumens: 5,600LM
Effective Lumens: 4,400LM
Peak Beam Intensity (cd): 6,800
Voltage Range: 9-36VDC
Working Temperature: -40~+60 °C
Key Features and Benefits
Wide 70° flood beam for enhanced visibility
Anti-rust, corrosion, and freezing resistance
Electronic Thermal Management (ETM) for extended lifespan
Surface mount with 35° and 48° options
IP68/69K waterproof rating for all-weather use
UV resistant, shock resistant, and durable construction
LED lifespan of 50,000+ hours
Compliant with ECE R23/R10, CE, and CISPR25 standards
Over/under voltage and reverse polarity protection
(1) 9.5" 48W Angled LED Scene Light Flush Mount Bar
Installation Hardware
Product identification
- Brand: Oracle Lighting
- Model / MPN: 2916-48-001
