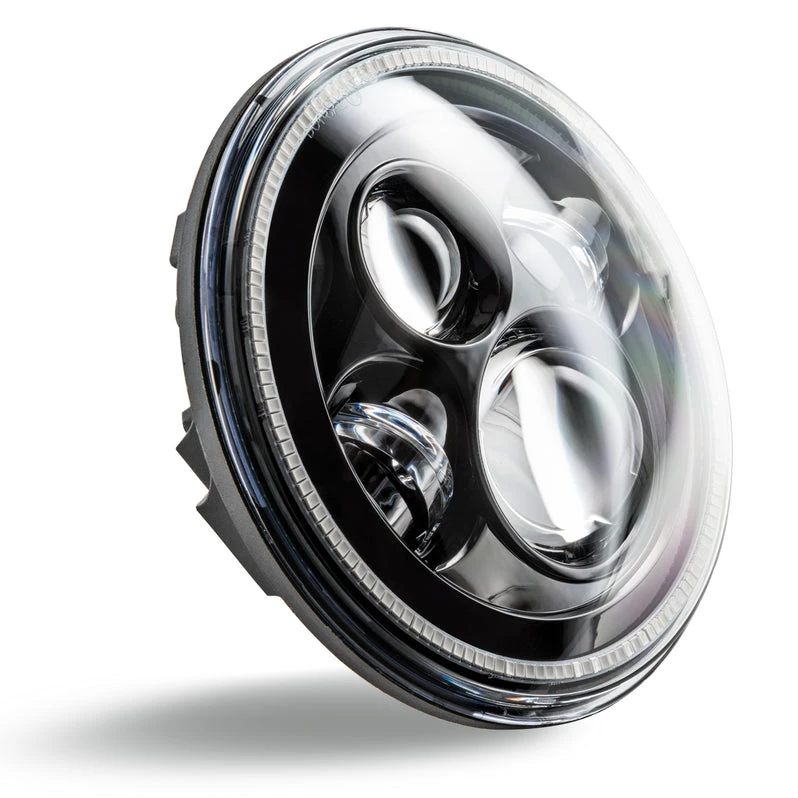

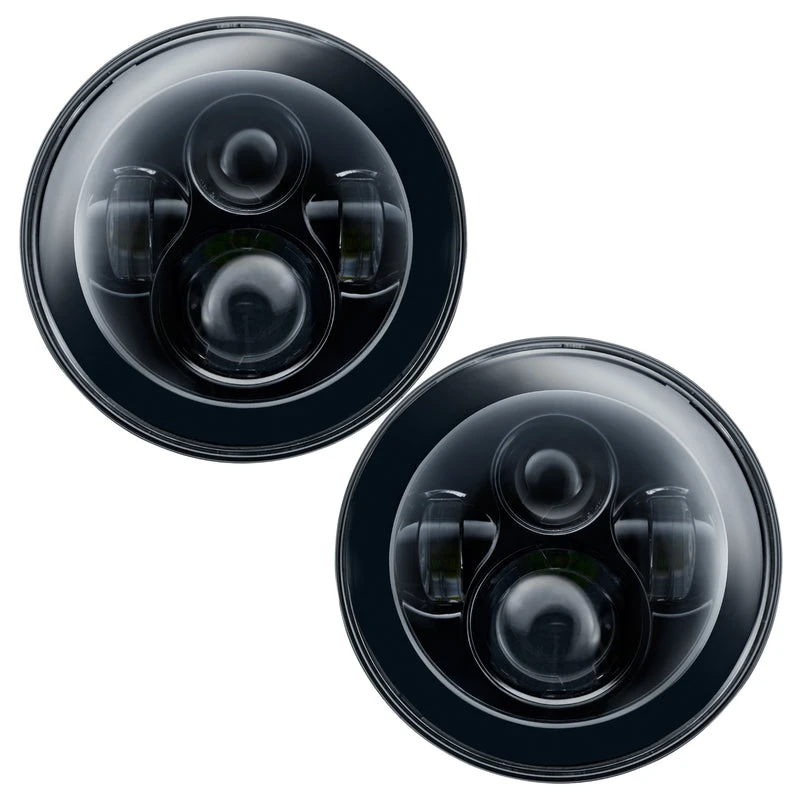

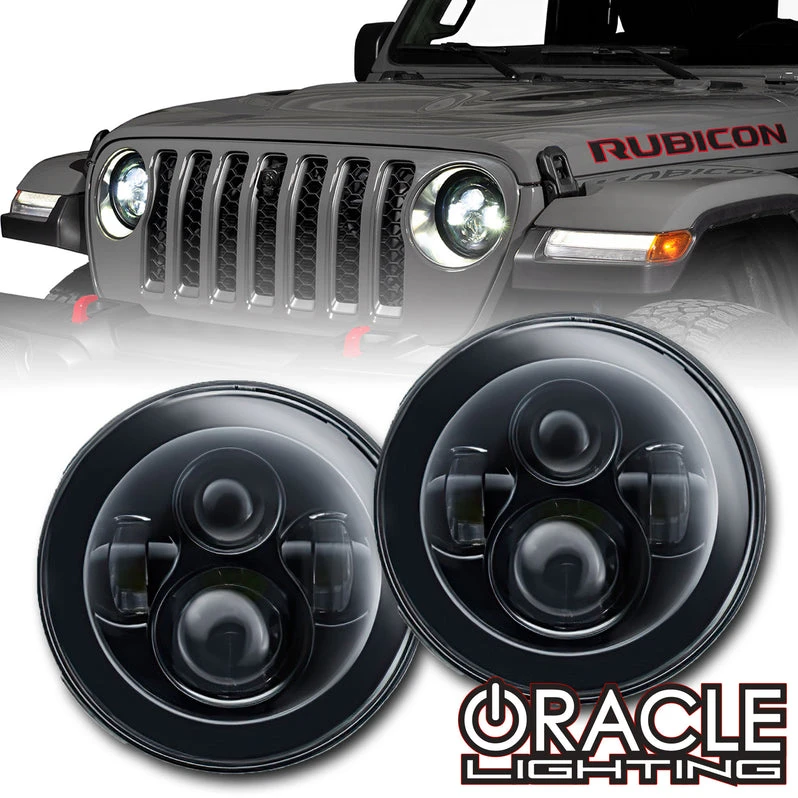

Oracle Lighting 7" High Powered LED Headlights Pair – Black Bezel (5769-001, 5769-002, 5769-003, 5769-004, 5769-005, 5769-330, 5769-333, 5769-334, 5769-335, 5769-504)
Oracle Lighting 7" High Powered LED Headlights (Pair) – Black Bezel offer the ultimate LED upgrade for any vehicle with 7” sealed beam lamps. With a rugged design and high output, they provide excellent visibility in all conditions, and the black bezel adds a sleek, modern look to your vehicle.
These headlights are equipped with advanced Phillips Luxeon ZES LED chips, delivering an impressive 130LM/W ratio with lower thermal output. The easy plug-and-play installation is facilitated by the included H4 and H13 connectors, ensuring a hassle-free upgrade.
Specifications and Dimensions
Low Beam Wattage: 30W Normal / 36W Max
Low Beam Lumens: 2200 Lumens / 3600 Raw Lumens
High Beam Wattage: 40W Normal / 48W Max
High Beam Lumens: 3600 Lumens / 4800 Raw Lumens
Color Temperature: 6000K (Cool White)
Input Voltage of Light: 12-24V DC
Current Draw: 2.50 Amps @ 12V DC / 1.30 Amps @ 24V DC
Key Features and Benefits
SMART Integrated Can-Bus system prevents flicker issues
Wide beam pattern with sharp cut-off line for better visibility
Rugged, die-cast housing with corrosion-resistant coating
Easy plug-and-play installation with included connectors
(2) Oracle Lighting 7" High Powered LED Headlights with Black Bezel

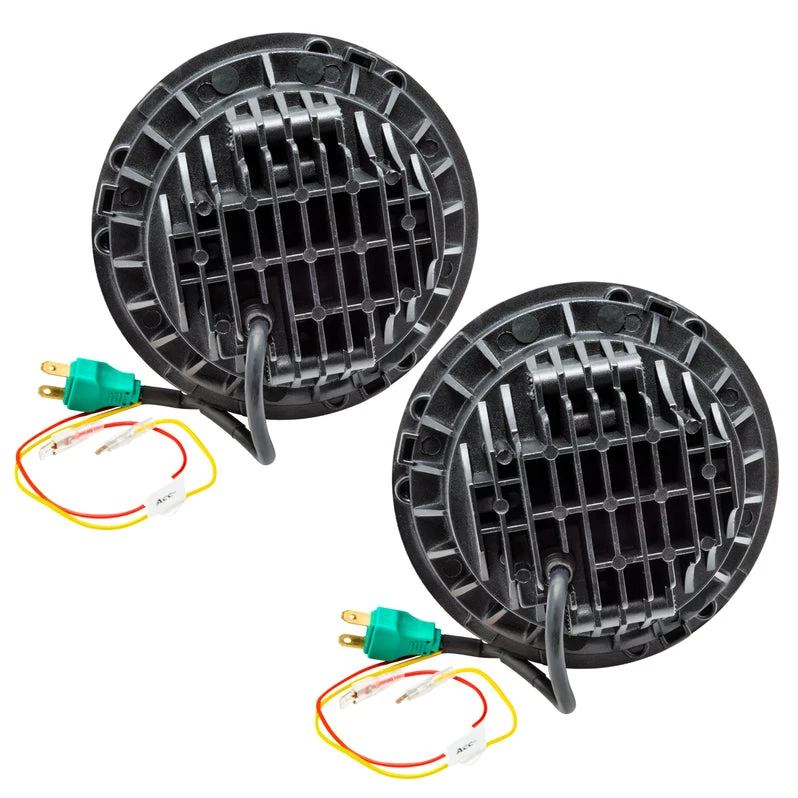

H4/H13 Connectors
Product identification
- Brand: Oracle Lighting
