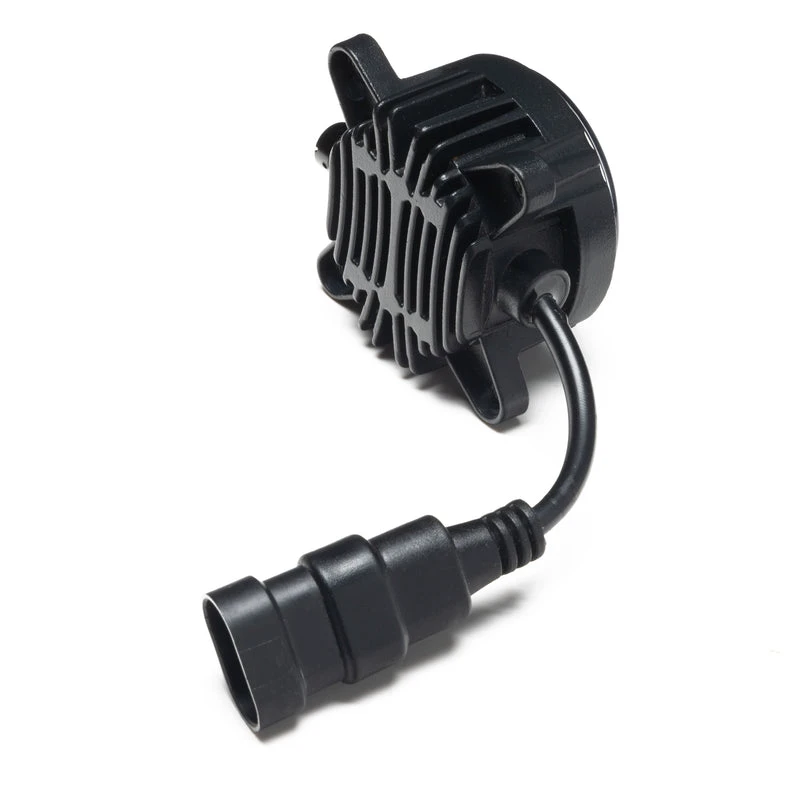

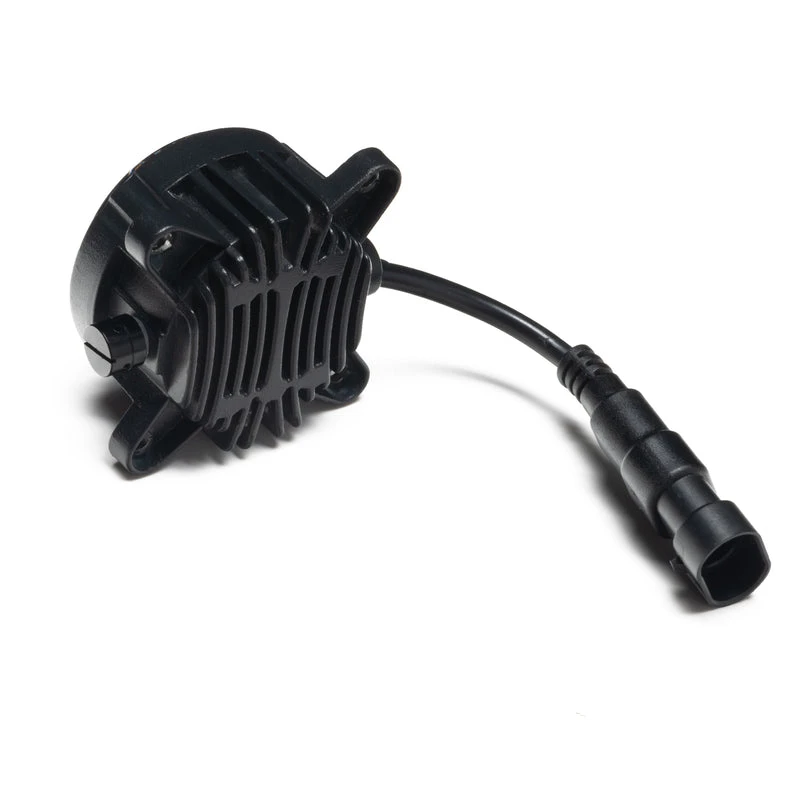

Oracle Lighting 60mm 15W Low Beam LED Emitter Module (5821-001)
Oracle Lighting 60mm 15W Low Beam LED Emitter Module (5821-001) delivers compact yet powerful illumination for a variety of applications. With a bright white 5000K output, this LED module provides effective on-road lighting in a small package, making it a versatile choice for many vehicles.
Engineered with durability in mind, the emitter features a 34mm deep housing and anti-fog breather valve for reliable performance in all weather conditions. The module is easy to install with its 9005/9006 molded wiring connector, ensuring a seamless fit.
Specifications and Dimensions
Max Lumen Output: 1000lm
LED Configuration: 3x High-Output 5W LEDs
Total Max Wattage: 15W
Amp Draw: 0.6A @12V DC
Connector Type: 9005 / 9006 Molded Wiring Connector
Ingress Protection: IP68

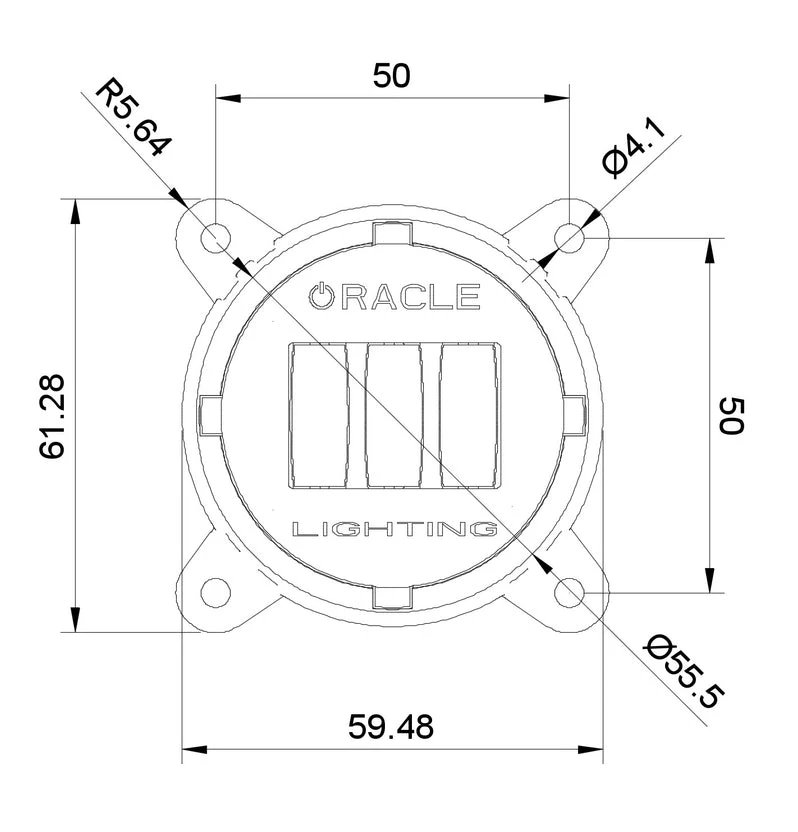

Dimensions: 60mm Diameter, 34mm Depth
Key Features and Benefits
Compact design with 34mm depth for versatile installation
Anti-fog breather valve for reliable performance in all conditions
Advanced optics for precision low beam lighting
DOT, SAE, and E9 compliant for legal on-road use
Easy plug-and-play DIY installation
Product identification
- Brand: Oracle Lighting
- Model / MPN: 5821-001
