Omega Pro OP1705 3.5 Ton Low-Profile Floor Jack
Omega Pro OP1705 is a hydraulic floor jack with a listed 3.5 ton capacity and a 3.5 to 21.5-inch lift range. Its low minimum saddle height is a starting point for checking access to a lift point. The rest of the chassis, handle space and vehicle-approved lifting locations still determine whether it is suitable for the job.
Specifications and included details

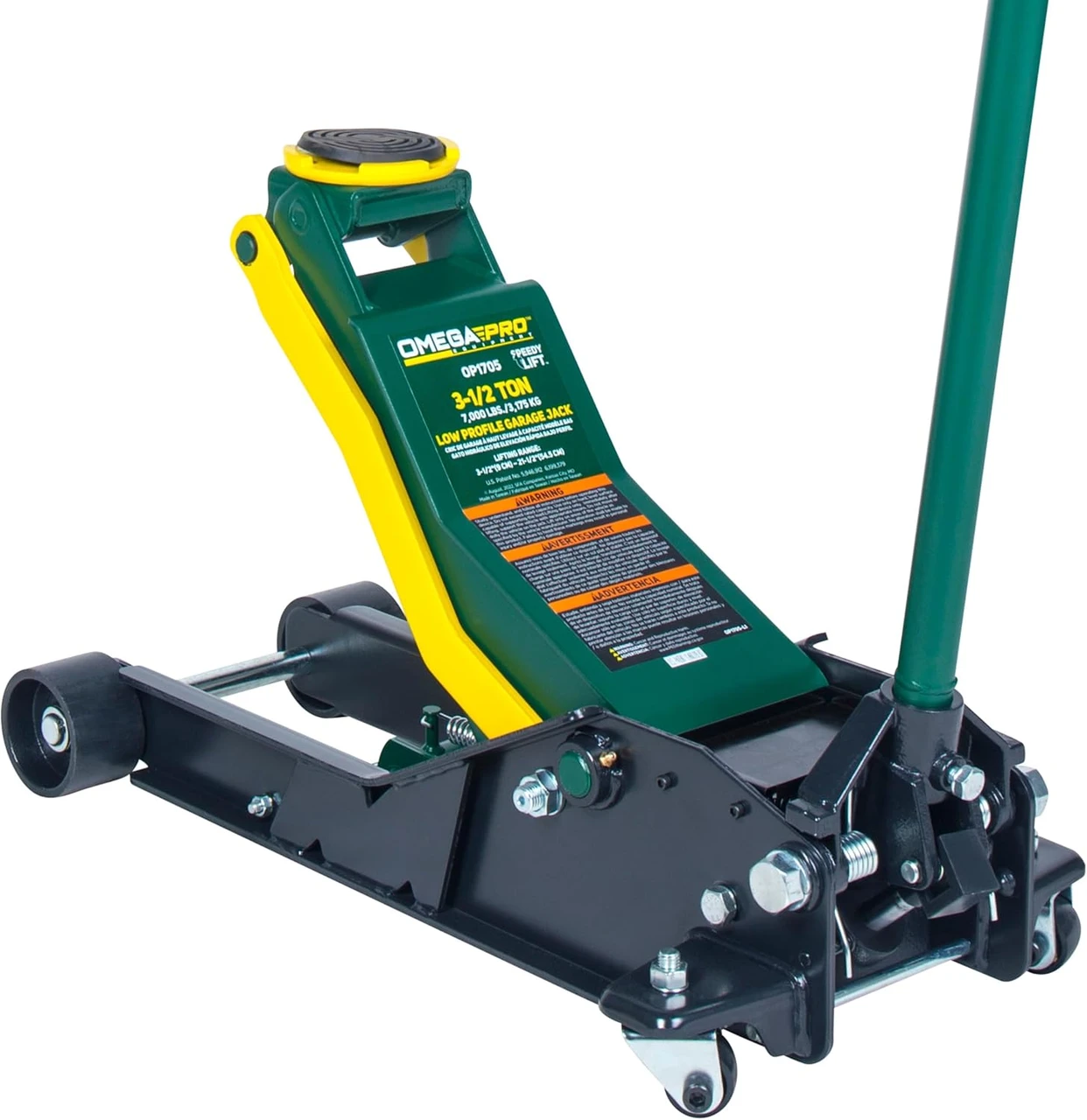

- Listed 3.5 ton capacity; actual jack label shows 3-1/2 TON.

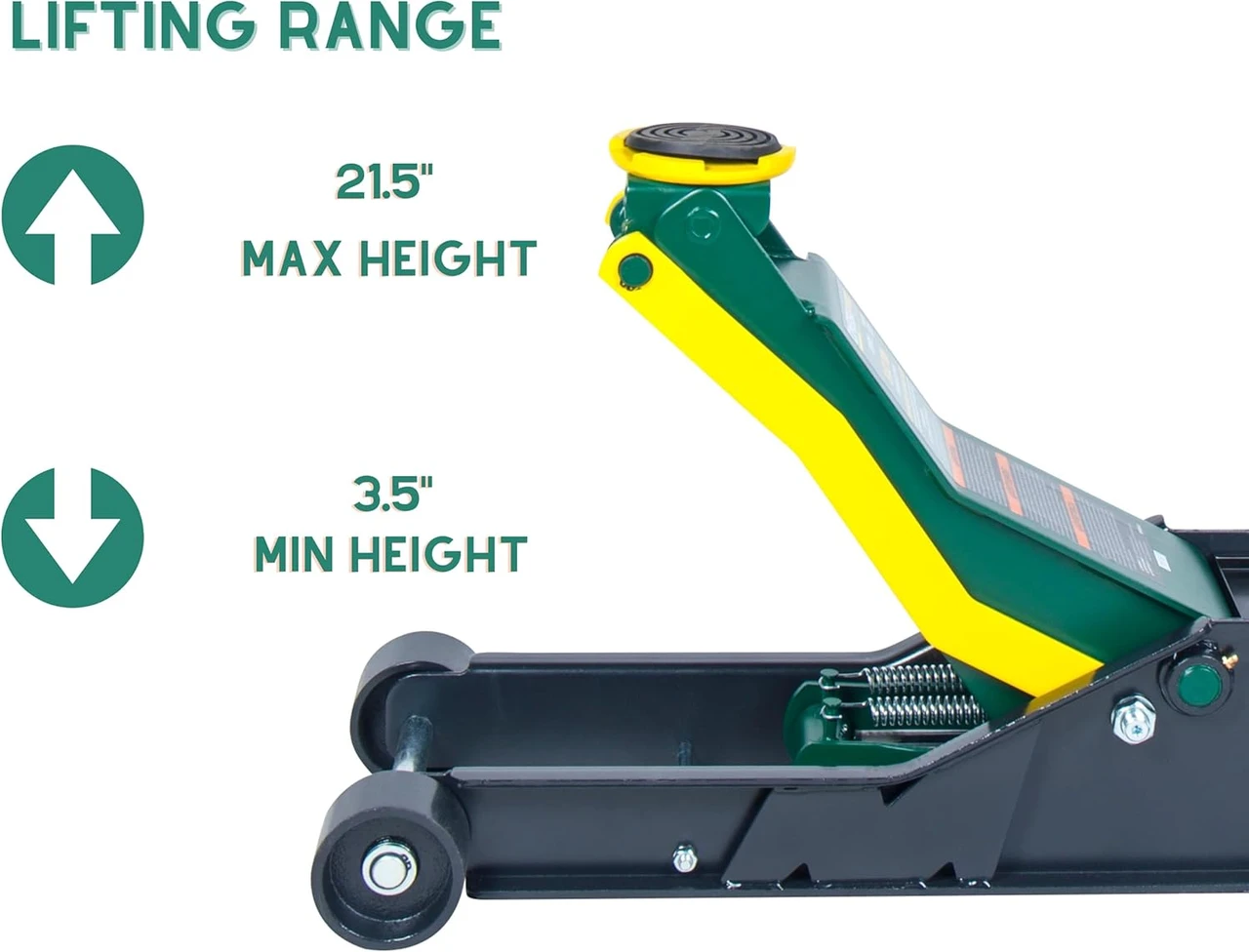

- Listed minimum lifting height of 3.5 inches and maximum of 21.5 inches.

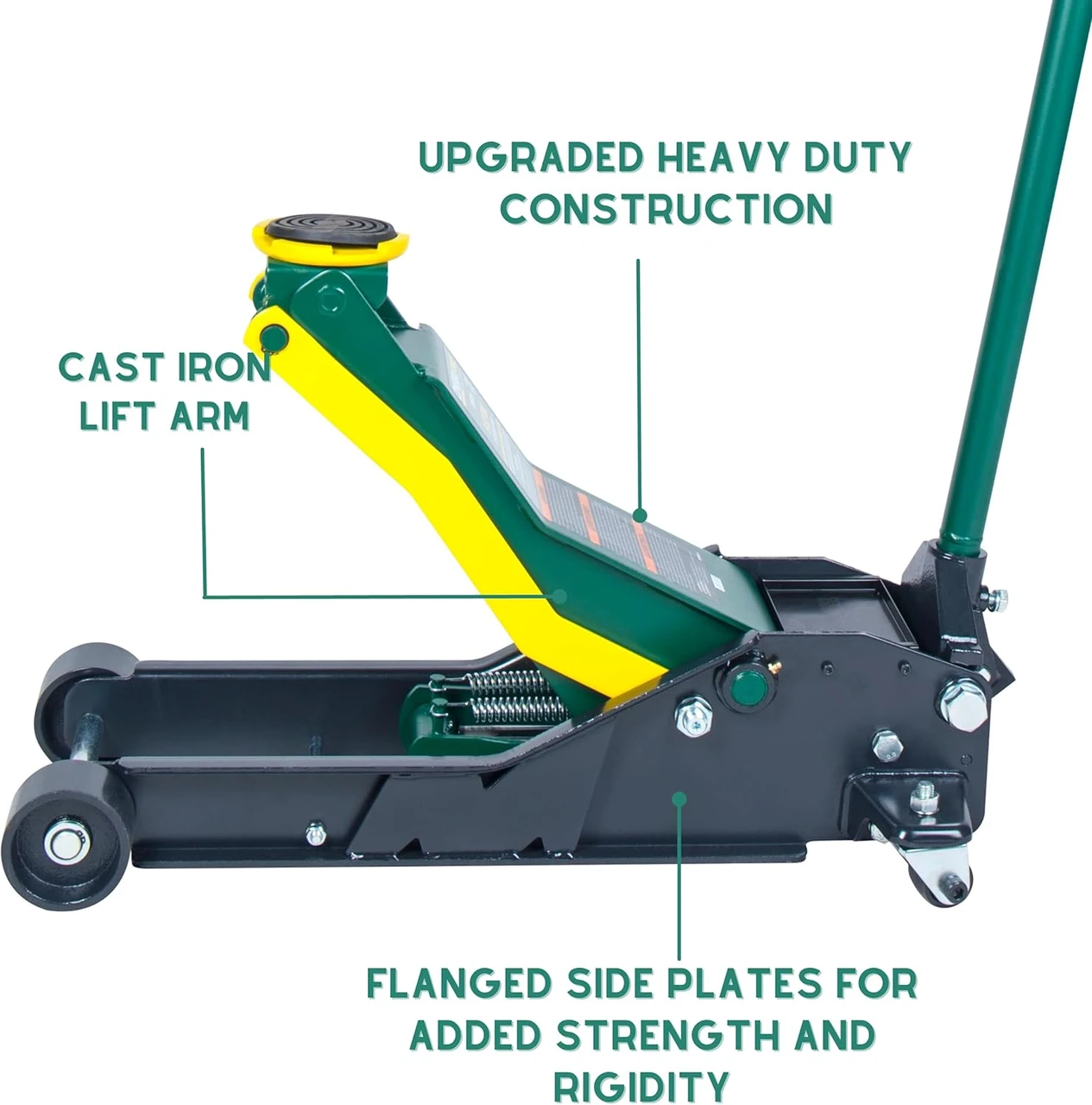

- Steel and cast-iron construction, with a cast-iron lift arm and flanged side plates.
- Lowering Speed Control (LSC) mechanism is identified in the product details.
Before ordering
Confirm capacity units and operating limits in the OP1705 manual, then compare the saddle and chassis access with approved lift points. Follow the manufacturer procedure for controlled lowering. Use suitable mechanical supports before working underneath a raised load; the LSC mechanism is not a support stand or a guaranteed lowering speed in every condition.
Product questions and answers
Does the 3.5-inch minimum make OP1705 fit every low car?
No. It is the listed minimum lifting height. Chassis access, ground clearance and approved lift-point geometry also need to be checked.
Does Lowering Speed Control replace supporting stands?
No. LSC concerns lowering behavior. It does not turn a hydraulic floor jack into equipment for holding a load while someone works underneath.
How high is OP1705 listed to lift?
The protected product listing gives a maximum of 21.5 inches, with a 3.5-inch minimum. Confirm the manufacturer setup and operating requirements for your application.
